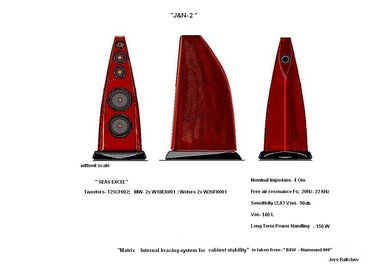

    I have an idea to make a new project to in the base there should be two 10" loudspeakers - just an idea. They look like animals, maybe dinosaurs, but important are 20Hz. 2.jpg 20.jpg

  5. Negatron

    Negatron Active Member

    Joined:
    Apr 17, 2017
    Messages:
    174
    Likes Received:
    12
    Looks great as usual...mega skills there.

  6. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria
    Thanks!
    This my idea is quite expensive.

  7. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria

  8. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria

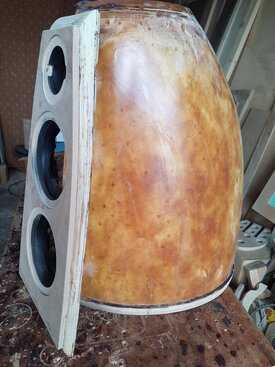

    I continue with the collection of the cabinet;
    sr.jpg sr-1.jpg
    Now I can make the exact measurement of the volume. And that's 31.5l, just as much as I need!
    Oh, l forget to show you what I did to get that volume!

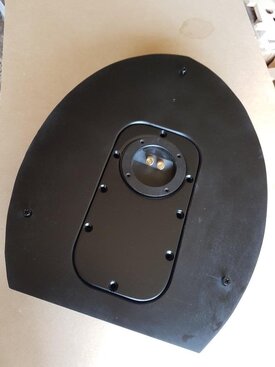

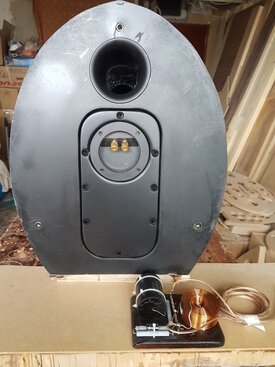

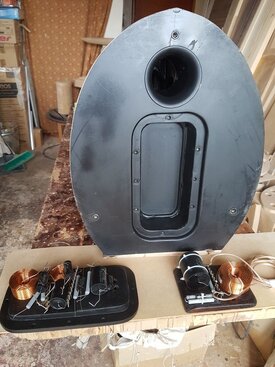

    I maked a filter compartment (for the MW and TW), the W section will be in the box;
    cap..jpg dyno-cap.jpg cap-dyno.jpg

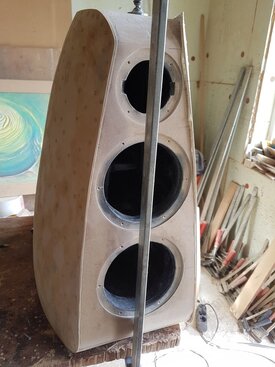

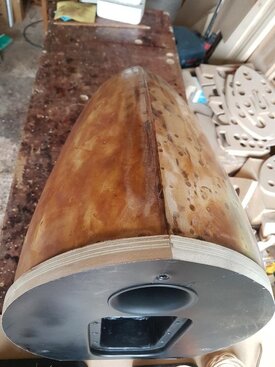

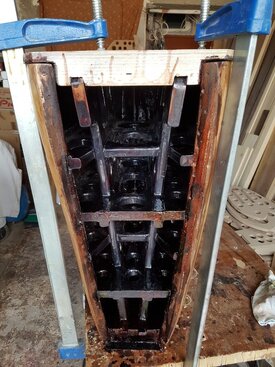

    I previously make the last layer-10 mm MDF / to get a sandwich construction / on the front panel and the bottom;
    dyno.jpg elo.jpg
    Last constructive action ;

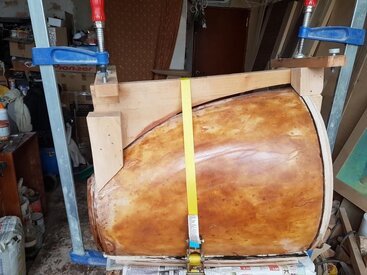

    After 10 hours I will install the last layers of 2 x 4 mm bent MDF;

  9. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria
    A small structural change for the side panels, last layer is 1 x 4 mm plywood and everything is re ady for the measurements.

    tripplej likes this.
  10. Todd Anderson

    Todd Anderson News Editor / Reviewer/ Senior Admin
    Staff Member

    Joined:
    Jan 20, 2017
    Messages:
    1,992
    Likes Received:
    446
    Location:
    Balt/Wash Metro
    Wow. Looks gorgeous.

    How'd you get the finished appearance on the speakers in post #83?

  11. tripplej

    tripplej Senior AV Addict

    Joined:
    Jul 13, 2017
    Messages:
    1,204
    Likes Received:
    105
    I agree, very nice looking. Can't wait to see the measurements, etc. :)

  12. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria

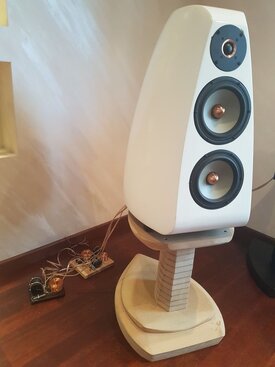

    Nothing are finished. Side panels i prepared for veneering, and the bottom is painted with acrylic paint, it helps me not to miss something in the processing.
    The finishing works will begin after the measurements.

  13. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria
    Thanks!
    In the middle of September I will make the measurements and corrections of the filters.
    Measurements will be done in an acoustically-processed laboratory, not in my home.

  14. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria

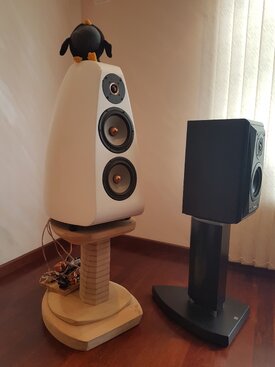

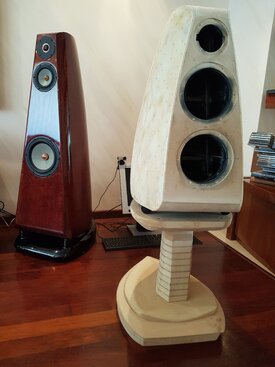

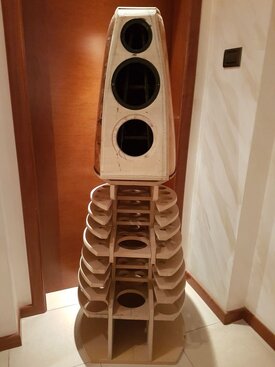

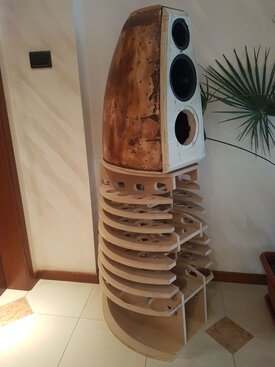

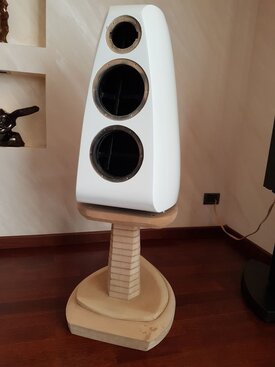

    And a risky picture (everything is supported by gravity), how look for compared to the frontal columns, are not on one line, but I rely on your imagination.

    tripplej likes this.
  15. tesseract

    tesseract Senior Admin
    Staff Member

    Joined:
    Nov 12, 2016
    Messages:
    510
    Likes Received:
    96
    Location:
    Lincoln, NE
    Looking good, man! Do you have any measurements you'd like to share with us?

  16. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria
    Thanks!
    No, I don't have, look please, position #88!

  17. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria

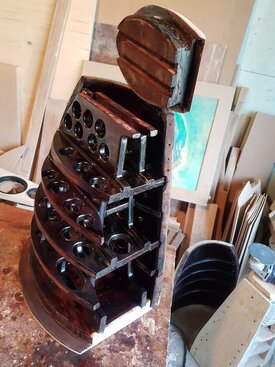

    Several steps to the moment with measurements ...
    SrSt.jpg SrSt-1.jpg SrST-2.jpg SrSt-3.jpg

  18. Negatron

    Negatron Active Member

    Joined:
    Apr 17, 2017
    Messages:
    174
    Likes Received:
    12
  19. Jororaitchev

    Thread Starter

    Joined:
    May 17, 2017
    Messages:
    54
    Likes Received:
    19
    Location:
    Sofia - Bulgaria
    Thanks!

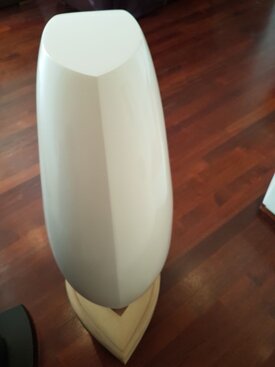

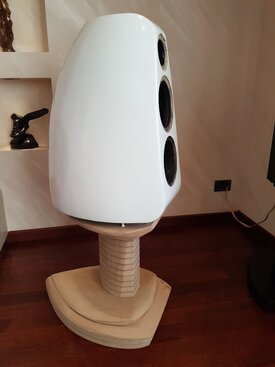

    Clarification, this is a polyurethane primer, follows the cabinet's veneer with "Birds of Maple".
