A few my DIY projects "J&N"

Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Hello,
A model of my DIY loudspeakers i have served Ti6k- JBL. My first contact with
them, was in distant 2005.
I started working with them in 2009 and finished in 2012.
The loudspeakers are "SEAS"- Excel / Tw-1”, Mw-5”for center 2х 5.5”,Bass-8,5”/ and cross-over parts- "Intertechnik".

Nominal impedance- 8 OhFreguency Range 30Hz-20kHzCharacterstic Sensitivity(2,83V/1m)- 87db
Long Term-110W.
Have are some pictures, if there is interest, i will continue.
Regards!

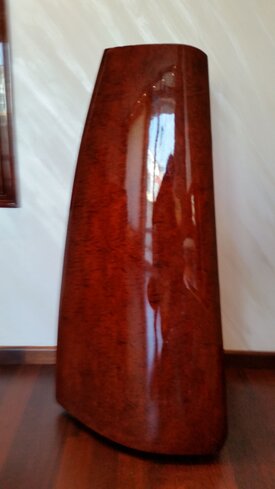

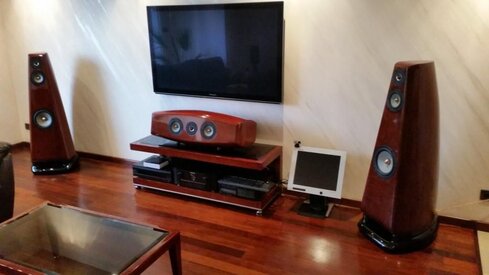

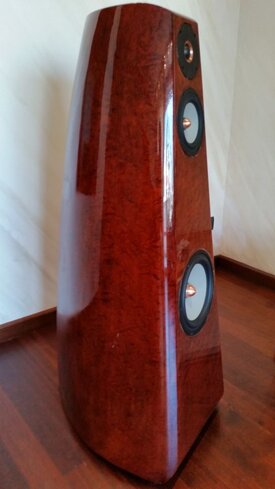

Joro4-4-K.jpg 07-07.jpg 08.jpg колона1-1.jpg хол-k.jpg


chrapladm

Moderator
Staff member
Joined
Apr 14, 2017
Messages
212
Very nice finishes. AND its always nice to see other DIY projects. I will be starting mine soon but dont think I will have quite the finish you have there in your builds. Very well done.


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Very nice finishes. AND its always nice to see other DIY projects. I will be starting mine soon but dont think I will have quite the finish you have there in your builds. Very well done.
Thank you so much!


1_sufferin_mind

Senior Member
Supporter
Joined
Apr 17, 2017
Messages
457
Location
Indianapolis
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-5
Additional Amp
McCormack DNA-1 Monoblocks (On Standby)
Other Amp
Woo Audio WA6se w/ Audeze LCD-2
Universal / Blu-ray / CD Player
Oppo BDP-95
Front Speakers
Revel Ultima Salon
Center Channel Speaker
Revel Voice
Surround Speakers
PSB Image B5
Subwoofers
PSA XV-15se w/ ICE amp
Other Speakers or Equipment
Cary SLP98P / VPI SuperScout with JMW9 & Benz H2
Video Display Device
Samsung 60" Plasma / Panasonic 50" Plasma
Other Equipment
PS Audio PWD with Streaming Bridge
If these are the same ones I remember from another site, I'd like to see some of the build pics. The internal bracing looks incredibly strong, and your woodworking skills are top-notch!


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
If these are the same ones I remember from another site, I'd like to see some of the build pics. The internal bracing looks incredibly strong, and your woodworking skills are top-notch!
Excuse me for my poor English - I do what I can!
Thank you for the good evaluation of my work!
I have no idea at which site you've seen my posts, they're over 25 "DIY Audio Forums" in the world, sorry!
Please, for your patience, I will explain in detail on this project, but please give the opportunity and time to this post - he is theare only a few hours!
Thank you,
Joro


theJman

Member
Joined
Apr 4, 2017
Messages
68
Location
New Joisey
My AV System
Preamp, Processor or Receiver
AVR - Sherbourn
Universal / Blu-ray / CD Player
Player - OPPO BDP-103
Front Speakers
Speakers - Various
Subwoofers
Subwoofer - JTR S1
Video Display Device
TV - Panasonic plasma
Wow, beautiful work!


Peter Loeser

Moderator
Staff member
Joined
Apr 23, 2017
Messages
228
Location
Southwest Michigan
Beautiful speakers! Excellent work and I'd definitely like to see more of it. Thanks for sharing on the forum. Are these cabinets your own design?


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Beautiful speakers! Excellent work and I'd definitely like to see more of it. Thanks for sharing on the forum. Are these cabinets your own design?
In order to save Your time, I will allow myself a clarification:
-Everything in this project-idea, design filters the overall workmanship of the cabinets to the last detail was done by my hands.


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
I'll show you how was made the speakers are made, step by step;

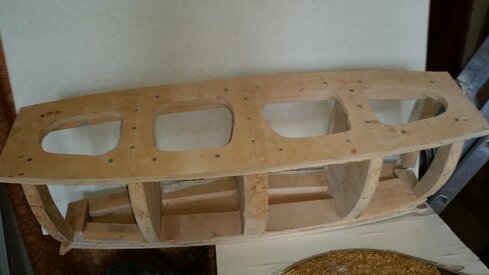

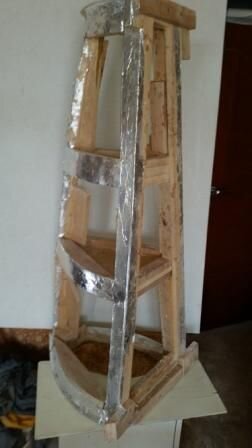

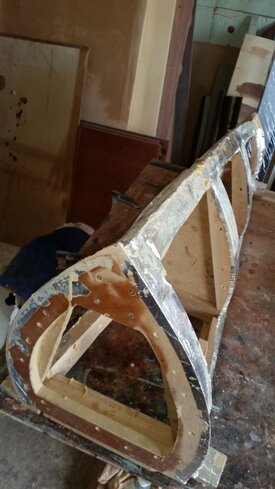

First did this "home-matrix",

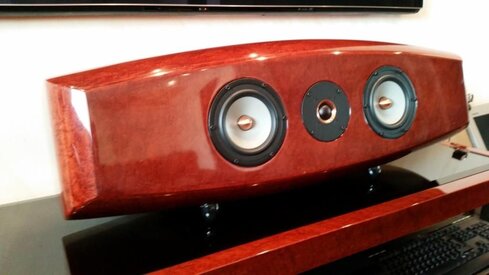

MK.jpg 20-1.jpg and for the center:

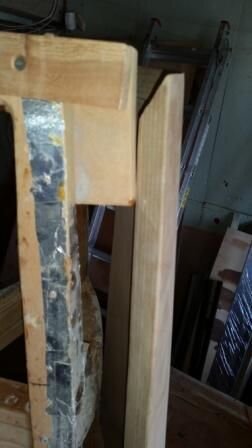

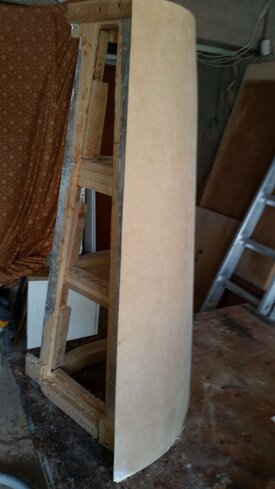

20150915_115224.jpg After, i bended 8 layers / 4mm / MDF;

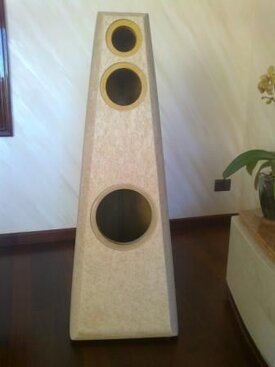

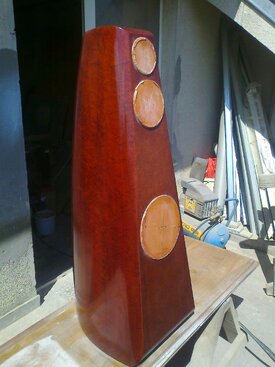

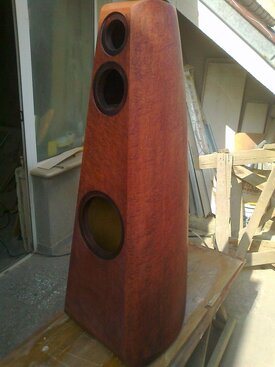

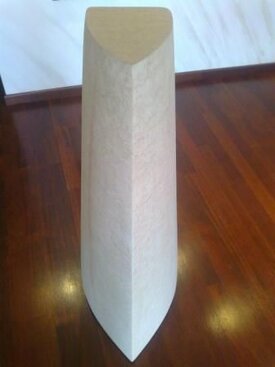

2015.jpg mk2.jpg After assembly, veneering with " Bird's Eye View" ,there is obtained this :

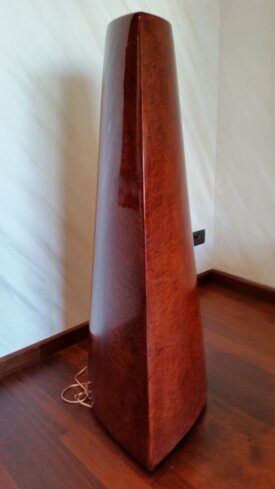

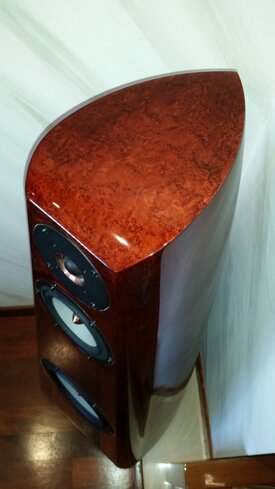

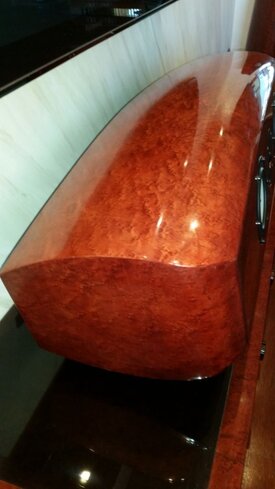

6-6-6.jpg 6-.jpg The finish is 35-40 layers of acrylic auto varnish and after each layer- polishing in order to obtain this:07.jpg Снимка0087.jpg 001.jpg 5-5.jpg


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
5,844
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Denon X8500H
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
VSX21-THX
Universal / Blu-ray / CD Player
OPPO UDP-203, Panasonic UB9000
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F
Whoa!!!! Those are gorgeous! :hail:

Working on any other projects right now?


theJman

Member
Joined
Apr 4, 2017
Messages
68
Location
New Joisey
My AV System
Preamp, Processor or Receiver
AVR - Sherbourn
Universal / Blu-ray / CD Player
Player - OPPO BDP-103
Front Speakers
Speakers - Various
Subwoofers
Subwoofer - JTR S1
Video Display Device
TV - Panasonic plasma
The finish is 35-40 layers of acrylic auto varnish and after each layer - polishing
You applied 40 layers of acrylic and hand polished each of them?! :eek: You are a very dedicated and patient man.


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Whoa!!!! Those are gorgeous! :hail:

Working on any other projects right now?
Thanks!

Yes, I'm working on the rear speakers, I'll show you this project soon.

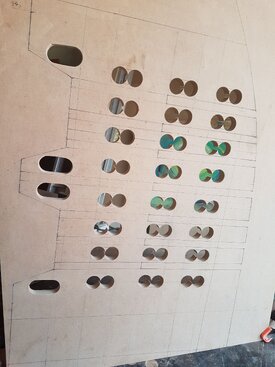

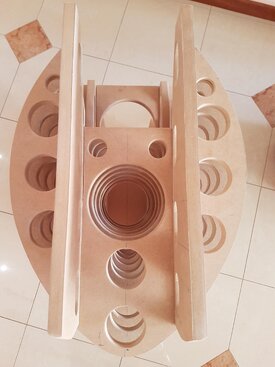

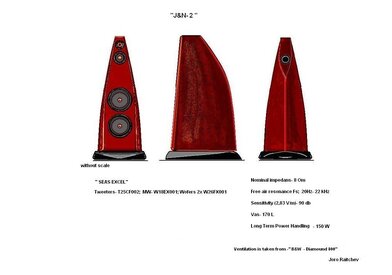

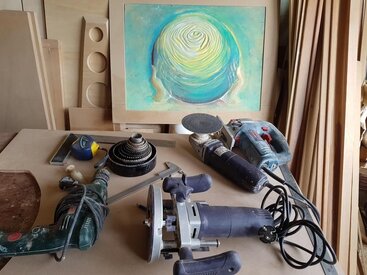

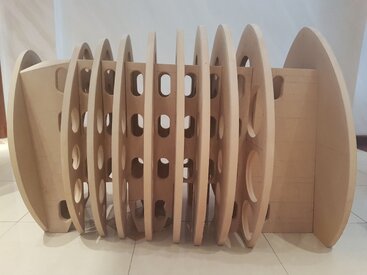

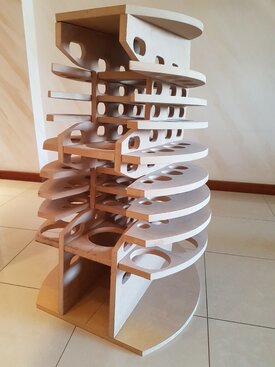

This is my other work in the initial phase;
J&N-001.jpg идея 1.jpg идея 5.jpg идея 3.jpg идея 6.jpg
Not used "CNC" machine.


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
You applied 40 layers of acrylic and hand polished each of them?! :eek: You are a very dedicated and patient man.
Thank you so much!


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,532
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD M17 V2 Processor
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Other Amp
Emotiva A-150
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Front Speakers
MartinLogan Classic ESL 9
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
MartinLogan ElectroMotion ESL
Surround Back Speakers
MartinLogan Motion 12
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
SVSound SB16-Ultra x 4
Video Display Device
Epson 6050
Screen
Elite Screen
Remote Control
Universal MX-890
Other Equipment
Dish Joey 4K
Incredible workmanship... and attention to detail is phenomenal. WOW!

Love the work... love the finish! If they sound as good as they look, they'll be stellar!


theJman

Member
Joined
Apr 4, 2017
Messages
68
Location
New Joisey
My AV System
Preamp, Processor or Receiver
AVR - Sherbourn
Universal / Blu-ray / CD Player
Player - OPPO BDP-103
Front Speakers
Speakers - Various
Subwoofers
Subwoofer - JTR S1
Video Display Device
TV - Panasonic plasma
You cut all that free hand??? Incredible. :T


1_sufferin_mind

Senior Member
Supporter
Joined
Apr 17, 2017
Messages
457
Location
Indianapolis
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-5
Additional Amp
McCormack DNA-1 Monoblocks (On Standby)
Other Amp
Woo Audio WA6se w/ Audeze LCD-2
Universal / Blu-ray / CD Player
Oppo BDP-95
Front Speakers
Revel Ultima Salon
Center Channel Speaker
Revel Voice
Surround Speakers
PSB Image B5
Subwoofers
PSA XV-15se w/ ICE amp
Other Speakers or Equipment
Cary SLP98P / VPI SuperScout with JMW9 & Benz H2
Video Display Device
Samsung 60" Plasma / Panasonic 50" Plasma
Other Equipment
PS Audio PWD with Streaming Bridge
Yup, same ones. Wow! Three years of hard labor really paid off. You can be proud!


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Incredible workmanship... and attention to detail is phenomenal. WOW!

Love the work... love the finish! If they sound as good as they look, they'll be stellar!
Thanks for the good evaluation of my work!
Allow me to remind you that this is an initial phase - even a conceptual project.After the measurements made by me at 10 "speaker, this project can not be done, not with these speakers. Not all ideas are good, are they?


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"

Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Yup, same ones. Wow! Three years of hard labor really paid off. You can be proud!
Thank you!
Excuse me, but there may be a misunderstanding - this project is not three years old, and it is clear that this project it will not happened that way.

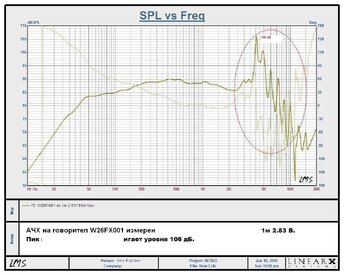

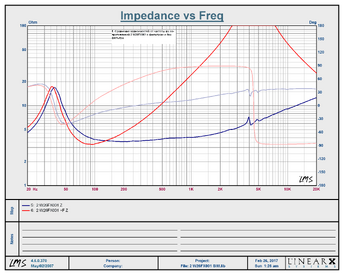

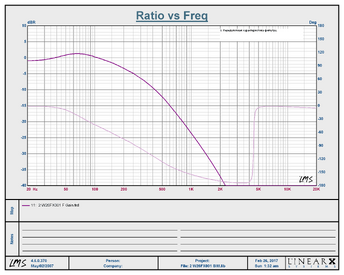

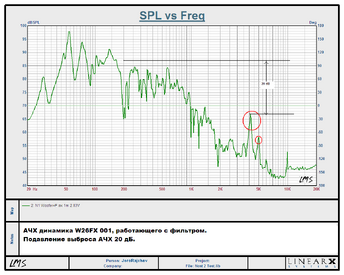

The problem is in the frequency of around 5000Hz; There is a peak ,which strongly influences the average frequencies.There are two ways to solve this problem:
- Adding one more MW,

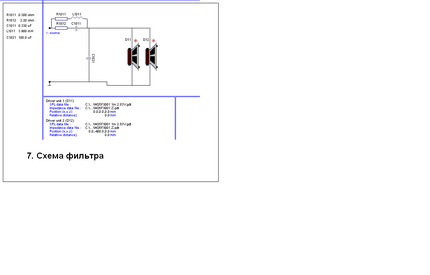

-More complicated construction of the filter I don't know the exact name , maybe (reager).
This project may be look beautiful, but will be changed.


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
1,052
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
WOW! is all I can say.

Those are show room quality builds. Very nice looking speakers.


billrobbo

Moderator
Staff member
Joined
Apr 14, 2017
Messages
123
Very nice cabinets indeed. :T

The problem is in the frequency of around 5000Hz; There is a peak ,which strongly influences the average frequencies..
Are you using pre-made crossovers? If so they may need modifying.


Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"

Jororaitchev

Member
Thread Starter
Joined
May 17, 2017
Messages
77
Location
Sofia - Bulgaria
My AV System
Preamp, Processor or Receiver
Marantz 6009
Universal / Blu-ray / CD Player
OPPO105D
Front Speakers
DIY_ "J&N"
Center Channel Speaker
DIY_ "J&N"
Surround Back Speakers
DIY_ "J&N"
Very nice cabinets indeed. :T


Are you using pre-made crossovers? If so they may need modifying.
Very nice cabinets indeed. :T


Are you using pre-made crossovers? If so they may need modifying.
Thank you for the evaluation of my work!

As I wrote at the beginning of my post, everything is done by me, I do not use ready filters / and I do not recommend it to anyone unless it is a ready-made kit with cabinets /.Will try to explain why this project I had changed at the very beginning.
N-1 N-2
графика.JPG графика-1.PNG
Передаточная х-ка фильтра.PNG N-3
Схема Фильтра.PNG N-4

Сравнение Z  2 W26FX001.PNG
N-1Characteristics of the speaker without filter,we have a peak of 106 dB
N-2 Characteristics of the speaker with a filter.
Everything else is understandable.
What should I choose in this situation?
-1 option, add one more 18 FX001,
-2 option,remove one 26 FX001,
I chose a new project with 4 identical speakers:
1 х 26 FX001, 1х 22 FX001, 1х 18 FX001 , T 25 CF002

Top Bottom
