Dear all,
I am a new REW user and might need assistance. I followed this tutorial here (

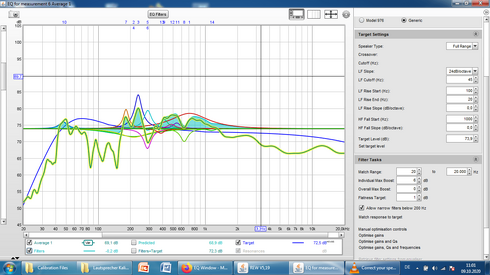

) which is great btw and so far it worked fine. I struggle with the results of the correction phase. As you see in the screenshot included, the regions with the worst deviations are not corrected at all (80 to 150 Hz). Why is that so? Where is my mistake? Thank you for some hints.


Attachments

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
3,592
That region is further below the target than could be corrected with a boost filter of the maximum gain allowed, so it is left as is .


hansbusch

Registered
Thread Starter
Joined
Oct 9, 2020
Messages
2
Thank you, I think I get the point. Then my second question is: how do you experienced people assess my curve? The speakers should be good (Troels Gravesen Faital 3WC) but the room is very bad (odd shape, bad symmetry, etc...). How would you continue? Is it possible to "flatten" this curve? Should I just play around with the knobs until it "fits"? Or any specific tips? Since this is my first experience with professional EQ, any advice is appreciated.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
414
Location
Corpus Christi, TX
My AV System
Preamp, Processor or Receiver
Yamaha RX-Z9 A/V Receiver
Universal / Blu-ray / CD Player
Pioneer BDP-23FD Blu Ray Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Plus D
Surround Speakers
Canton Plus D
Surround Back Speakers
Realistic Minimus 7 (front EFX speakers)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (subs)
Subwoofers
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Audio Control R130 Real Time Analyzer
Remote Control
Stock Yamaha Remote
Other Equipment
Pioneer PDP-6010FD 60" Plasma TV

skid00

New Member
Joined
Mar 20, 2020
Messages
16
My AV System
Main Amp
2 x Adcom GFA 555
Front Speakers
Carver Amazing Platinum Mark IV
Hans,

You can drop the Target Level (spl) lower, so the calcs have more "room" to do EQ. I'd suggest you increase the allowed dB ranges (individual/overall). You can change these to lower values if you feel the need.

Reserve a few filters (on the EQ Filters button at top of graph) so you can fine-tune what the automation won't).

Play with the beginning and ending Hz if you need more filters than 18 or so.

Here's mine:
Screenshot (794).png
