Measuring with a timing reference

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
3,907
The system being measured includes the soundcard, so the response includes the soundcard's response. The idea of the loopback calibration is to measure the soundcard on its own so its response can be removed.


sm52

New Member
Thread Starter
Joined
Mar 14, 2019
Messages
106

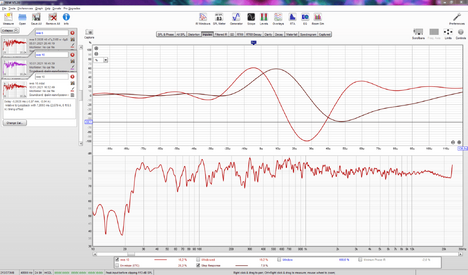

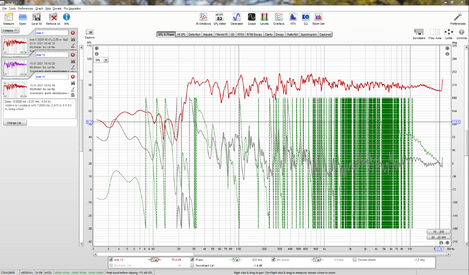

This is the measurement of a single four-speaker enclosure. In one screenshot, t = 0 shifted so that the phase response at 22 kHz = 0 degrees. On the other screenshot, impulse at this t = 0. Did I set t = 0 correctly? REW itself sets the Ref point to the second negative peak of the impulse, and t = 0 nearby.


Attachments

Last edited:

sm52

New Member
Thread Starter
Joined
Mar 14, 2019
Messages
106
I tried to make measurements of the mid-range speaker in own box according to scheme 2 from post #1. Divider - 10 kOhm and 1 kOhm resistors. The delay is always = 0. Unlike measurements according to scheme 1. There, the delay varies with each measurement. Sometimes it turns out (usually after 30-40 minutes of work) to get several measurements in a row with a delay = 0.
But. When using scheme 1, the GD is always around 0. When using scheme 2, the GD increases greatly after 15 kHz. GD of one speaker should always be = 0. I think because of the resistors. If interested, I can give measurements.

Last edited:
