You’ve got the Power (cables)!

01 Super Cable.jpg


WHY?

Ok…. I have been reading and studying the current debate about power cords making a huge difference in the sound and video of an AV system. The electronic tech part of me has long held the opinion that this is just nonsense.

The Audiophile/Videophile part of me, if there is such a part, just wanted to BELIEVE.

All of my power cables have, up to this point, been factory supplied cables and I have been happy enough with that. I have trusted that the manufacturers of high quality equipment would not supply a power cord that would let their designs and equipment fall short of expectations. I also have trusted those designers to meet the FCC emissions guidelines and their ability to design high quality power supplies and filtering into those pieces of equipment.

But we’ve all seen pictures of those firehose sized speaker cables and power cables and secretly wondered… is it true? Would it be that much better? Should I just give in and re-mortgage the house?

And still those websites, those White-Papers and those BLOGs just kept calling… kept whispering their Siren’s song in my ears. Get Better Audio, Better Video, Soundstage for MILES, Better Clarity, Lower Noise Floor, Better Bass Extension and Definition, Crystalline Euphoric Highs, Transcendent Midrange, Completely “Black” Backgrounds, Improved Dynamics… you will hear instruments you had never imagined were even there!…. The whispers sang all this and more to me…. You name it and they promised it!

I couldn’t believe it, so I had to try it!

And so, in a sense, I caved in…. a bit anyway.

I started with a some research as I always do. There are plenty of articles/BLOGs/treatises out there on both sides of the debate and surprisingly very little in the middle-ground.

Examples;
I read a thread where a person had tested over twenty different power cables and posted and described a different sonic signature for each cable. Huh?

I saw some pictures on Gizmodo where someone’s cat had eaten thru his $300 power cord only to reveal about $15 worth of components with a 14 GA power cord inside.

I checked out double-blind testing threads (the results were ambiguous). http://thegoodstuffreviews.blogspot.com/2015/05/power-cords-science-or-audiophile-hype.html (go all the way to the end :-)….

I checked out hate rants and love fests…. The scientific and not so scientific…. It was endless….

And, I started noticing something pretty quickly.

Most of the haters (detractors) were invariably engineer types spouting science and physics as meeting the burden of proof (how dare they!). Most of the lovers were either those white-paper-writing designers/manufacturers of the power cords or “fans/BELIEVERS” of The Power Cord Promises.

Coming down firmly on the “engineering” side of things, but still wanting to either prove or dis-prove the claims for myself, I devised a quick subjective test (or, not so quick as it turned out :-).

Since I don’t have the financial wherewithal (or the desire) to purchase the über expensive power cables that run $100’s or even $1000’s per foot (to quote a true philosopher of our times… “no I can’t go for that – nooo – no can do”) I tried to develop a meaningful experiment on the "cheap" that might prove or disprove the power cord hype being currently pushed.

Now “doing it on the cheap” wasn’t necessarily cheap as I found out. I decided, based on the outrageous claims and prices of the big players in the power cord market, that I would buy one cable that claimed to be an “Audiophile” power cable and build the rest.

One thing I quickly found out as I searched for an affordable cable was adding the word ”Audiophile” in front of any search did insane things to the prices. Try it and you will see what I mean :-)


I finally settled on testing four power cords of the same length (two meters - 6’6”)

1. Stock power cord from my new Parasound A21 power amp – 14 gauge - 3 conductor - No shielding – Molded construction
2. WAudio “Audiophile Quality” power cord – 10 GA – 3 Cond – Shielded – discrete components (covered in TechFlex so no idea who makes the wire)
3. Homebrew #1 “Audiophile” power cord – Belden 83803 – 12 GA – 3 cond – shielded – AweKing 20 amp male and Hi-Fi King 15 amp IEC connectors
4. Homebrew #2 “Audiophile” power cord – Belden 19364 – 14 GA – 3 cond – shielded – HiFi King 15 amp connectors

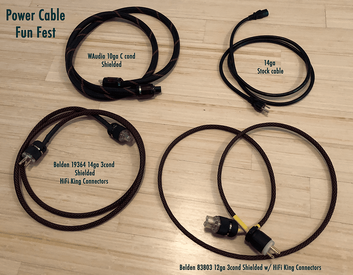

02 Cable Fun Fest.jpg

Construction

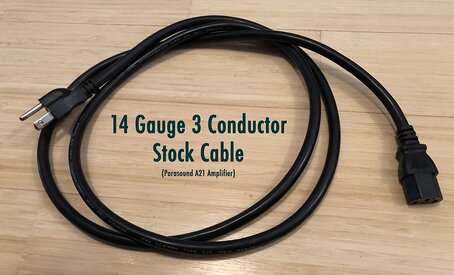

Stock Cable – Parasound 14 Ga, 3 cond – Molded plugs

03 Stock Cable.jpg

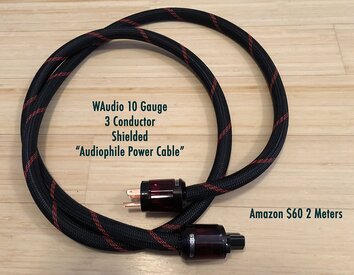

WAudio Hi-End Hifi Audio AC Power Cable Power Cord US Plug - 6.5FT (2M)
Amazon $59.99
https://www.amazon.com/gp/product/B01L2UNMXI/ref=ppx_yo_dt_b_asin_title_o06__o00_s00?ie=UTF8&psc=1

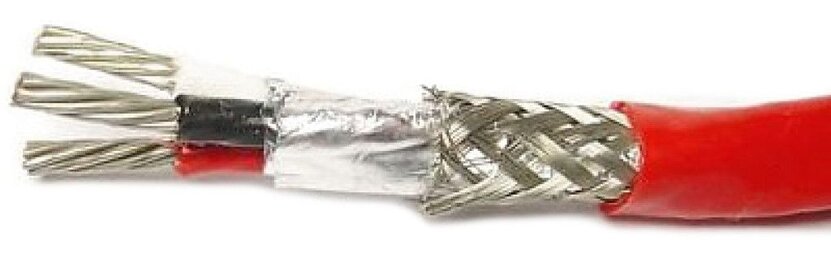

04 10 Ga Waudio.jpg 05 Waudio wire.jpg

My first order of business was to check the construction of the WAudio “Audiophile Power Cable”.

First inspection of the cable revealed no overt problems or issues. Build quality looked good and cosmetically it looked very nice. It is a full ¾ inch thick and covered in TechFlex. I took apart the plugs on both ends to determine build quality and found the connectors to appear sound and well built. The wiring was clean with no stray strands floating about. The shield was properly connected with the ground wire to the ground pin on the male plug side (supply/wall) only. The wire brand was unidentifiable because of the TechFlex covering but was certainly 10 Gauge and shielded. No idea of the quality of the shielding could be determined by inspection other than it is a braided shield construction (so 60-85% is likely the shield coverage). There was no evidence of a foil shield that I could see. The connectors appeared robust and well-made and were branded WAudio. All-in-all a pretty cable for $60…

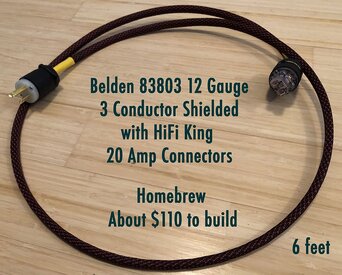

“Homebrew" #1 Cable – Cost to make approx. - $118.00

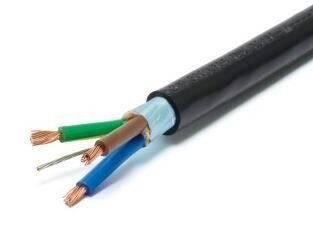

06 83803 cable.jpg 07 belden_83803.jpg


1. Belden 83803 12 GA – 3 Cond Shielded – Parts Express - $12.90 per foot
2. Hi-Fi King CC-18 IEC Plug 15A/125VAC – Amazon - $12.00 ea
3. Aweking 5-20P Male Connector 20 Amp 125VAC – Amazon - $20.00 (Hubbell would also be an excellent choice)
4. TechFlex - ½” expandable covering – 25 feet - Amazon - $8.00 (or 32 cents per foot)

The Belden 83803 is considered a high end instrument power cable. The conductors are 12 gauge (7x20) stranded. It is 100% Beldfoil shielded with an overlaid 85% tinned copper braid shield and a separate drain wire. Teflon insulation inside and out. Low capacitance and very low resistance (1.7 ohms per 1000 feet!) make this a near ideal power wire.

Because of the heavy gauge it is somewhat inflexible and stiff but not overly so.

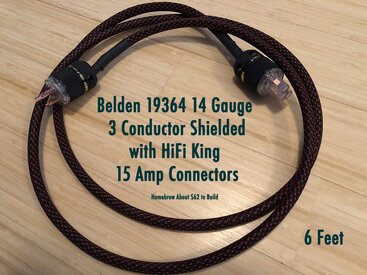

"Homebrew" #2 Cable - Cost to make approx. - $48.00

08 19364 cable.jpg 09 Belden 19364.jpg

1. Belden 19364 14 GA – 3 Cond Shielded – Wire and Cable Your Way - $3.33 per foot (20 foot Minimum Purchase)
2. Hi-Fi King CC-18 IEC Plug Female 15A/125VAC – Amazon - $12.00ea
3. Hi-Fi King PU-18 Plug IEC Male 15A/125VAC – Amazon - $12.00ea
4. TechFlex - ½” expandable covering – 25 feet - Amazon - $8.00 (or 32 cents per foot)

Belden 19364 is also considered a very high end cable in the instrumentation field for AC power applications. It is a 14 gauge 3 cond stranded (7x28) cable. It is 100% shielded with a foil shield and sperate drain wire. The thick PVC jacket make it thicker than the heavier gauge Belden 83803 cable. But even though thicker it is somewhat more flexible than the 83803.
Note: The Belden 19364 has long been appreciated as an “Audiophile Power Cable” in Europe.

*****************​

With my “Homebrew” cables I was confident in my DYI skills and the build quality. In building the cables I did use a layer of shrink tubing over the TechFlex at each connector to provide a better strain relief and to cover the ends of the TechFlex which can fray after cutting. I made sure to ground the shield(s) at the supply side only to provide the proper noise “drain”.

The Testing - The Plan – The Equipment

The other equipment that would be used for this rather informal testing would be;
Marantz 7703 Pre/Processor
Parasound A21 Power Amp
OPPO UDP-203 - HDMI out
Furman Elite-20 PFI Power Conditioner
Dedicated 20 amp line
BG Radia 520i front speakers

Music - Harlequin - Dave Grusin and Lee Ritenour – Track 1 - Harlequin

My initial testing would be done by starting with my baseline reference the Parasound stock 14 GA power cord. I would then swap out the stock cord for each of the “Audiophile” power cords listed in turn. I would go back and forth between each cord and the stock cord at least three times. After three swaps I would move to the next power cord and repeat the process.

I set my system up to play the Harlequin in stereo while listening in the Marantz “Pure Direct” mode. Subwoofers and Audyssey programming were bypassed for testing. I would do the swap and listening test at least three times for each cable.


Just to keep things brief, since the results were the same across the board, here are the results of the first swap out by cable…

First Test Results
1. Stock 14 GA cable
This was to be my baseline reference
Baseline

2. WAudio “Audiophile Quality” power cord – 10 GA – 3 Cond – Shielded – discrete components (covered in TechFlex so no idea who makes the wire)
– No Change – No Improvement

3. Homebrew #1 “Audiophile” power cord – Belden 83803 – 12 GA – 3 cond – shielded – HiFi King 20 amp connectors
– No Change – No Improvement

4. Homebrew #2 “Audiophile” power cord – Belden 19364 – 14 GA – 3 cond – shielded – HiFi King 15 amp connectors
– No Change – No Improvement


Well…that was disappointing to say the least. I fully expected (read hoped) the veils would pull back, the angels would sing and the sound would be magnitudes better that that stock power cord.

But, alas, there was no sense of audio nirvana to be had…. “Bummer!” I thought.

Second Test
So I devised a second test. Maybe it was the other components power supply keeping me from realizing audio perfection. I made another Belden 19364 power cord for my Marantz Pre/Proc and my OPPO UDP-203 and redid the test with all four cables and then again swapping the Marantz and OPPO cables in and out with their stock cables.

Bah! No Joy!! Same results…. Stock Vs. Custom… same resultsNo Change – No Improvement!

Third Test
Hmmmm… I had a sudden notion. I would repeat the testing but plug directly into the dedicated 20 amp outlet bypassing the Furman Elite-20 PFI power conditioner. I mean... what if the Furman was holding the cables back?

On the first listen with the stock power cable I was somewhat taken aback! I heard a difference! Thinking I must be hallucinating I swapped back and forth between the Furman and the direct outlet several times. Yes! There was something there!

I cycled through each of the power cables in turn and heard the same improvement with each when bypassing the Furman. Unfortunately for the “Audiophile Power Cable” mythos the improvement/change that I heard was the same despite which of the four cables was used.


Here is what I heard….
1. Bass was slightly, but noticeably, more defined and solid
2. Highs and mids were the same but the upper registers were more transparent and slightly more “articulate”sounding.
3. The overall sound was definitely more defined/refined. I could hear some of the subtle percussion instruments come forward in the mix.
4. The soundstage remained the same but there was a general feeling of more “air” in the overall sound.

It wasn’t a huge, in-your-face change as much as a subtle, but noticeable, change.

Since I wanted to protect my amps from surges I purchased and installed Leviton 20 amp in-wall surge protectors replacing the standard duplex outlets in both my dedicated 20 amp circuits. I reran the tests just to be sure and the new surge suppressors caused no change in the sound or perceived improvements I had heard.

I now have my big Parasound A21 and A52+ amplifiers plugged directly into each of my dedicated 20 amp outlets with the Furman’s Elite-20 PFI power conditioners plugged into the outlet directly below the amps on those same two circuits.

Since I now had enough “Audiophile” power cables to connect my major pieces that is what I did. The main power amps are connected with the Belden 83803 cables and my Marantz AV7703 is connected with the Belden 19364 cable. I used the WAudio 10 ga on my OPPO UDP-203 and another Belden 19364 on my little Parasound ZoneMaster 450 amplifier. I made and used another Belden 19364 cable from Furman Power Conditioner to Furman wallplate that connects via 14ga Romex supplying power to my projector. My Yung plate amps were lastly connected with the Homebrew #2 14 ga cables.


But Wait! That’s not all!

After connecting everything with my new “Audiophile Power Cords” I did notice one more small but important improvement. I have had some low level “Hash” noise in my system that I have slowly eliminated bit-by-bit but was still audible. It was so low I had to literally place my ear on the speaker to hear it.

On a whim I checked it again and the noise is completely gone!


“Reaffirmation”

Just to reaffirm that I was not crazy I recreated my experiment in a different system on a smaller scale. I visited a fellow AV enthusiast and tried a quick experiment in his system by bypassing his power conditioner (Belkin PF 60 15Amp) and going direct to the wall outlet using his stock power cord (also from a Parasound A21 amplifier) and the WAudio Power Cord that I brought along. He immediately noticed the same improvements/changes (in more or less the same degree and in the same parameters) without my prompting when bypassing the power conditioner. He uses a Marantz AV8805 Pre/Processor, Parasound A21 amp, OPPO UDP-203, and Martin-Logan Montis speakers for front right and left.



My Conclusions

1. “Audiophile Power Cables” are not a valid upgrade if you are expecting huge improvements to the SOUND of your system.

2. The Extravagant amounts of money that can be spent on high end power cords is better spent on room acoustics or equipment upgrades!

3. If you live in a noisy, dense RF environment, as I do, there MAY BE some improvement in the noise floor by using correctly made shielded power cables (or, then again, there may not be any improvement if the noise is not coming in through the power cable or the power cable is not in a highly active RF environment).

4. Plugging power amps directly into the wall may actually give you more of an real improvement in sound. And then again, depending upon the way you have implemented your brand and type of power conditioning it may not render an improvement as mine did!

5. Bottom Line - Big garden or fire hose sized power cables may look cool but real improvements in sound or picture are unlikely.

With some of these cords costing north of $17000.00 for 1.5 meters thats a lot of meaningful upgrade money.

Well that’s all for now. I’m going to keep playing and experimenting and would welcome and love to get your comments and suggestions on this paper. I would also love to hear any similar experiences or impressions you may have on power cords and/or cables in general.


Cheers!

Tom


Epilog
A note on my cable philosophy....
I have been in the business of audio and electronics for a long time. At one time (ah... the 70's) I even owned part of a 24 track recording studio we wired ourselves (everything but the 110/220VAC that is… we had licensed electricians do that). We also ran sound for local bands and sold large scale PA's (one of my partners continued in this business and has only recently retired). So, that said, I have some experience with cabling, grounding and power distribution to large and complex audio systems. IMHO, keeping in mind that it is JUST MY OPINION... High end cables are just not worth the very small differences, if any, they provide.

The job of a cable is to deliver, without undue change to the signal, to the next device. If a cable radically alters the sound it is not doing its job. Cables should never be considered a tone shaping component of the system!

I am, however, a firm believer in the idea that quality cables DO matter, at least in the respect that they should be built WELL (mechanically sound) and of quality materials and components. And if they are built in that way the cable will perform as well as anything out there.

Having said that
I do admit that I have neither the time, patience, OR THE MONEY to honestly acquire, test and evaluate the high end cable market. If anyone wants to send me some $10,000 (or even $1000) stereo pairs to compare I will certainly do my best to do an honest evaluation and return them to you. And, if you have any of those $2500 per foot power cables lying about I would love to give those a try as well :-)


Attachments

Last edited:

Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
Thanks for the write-up, Tom! That was a fun read : ) It is always great to see audiophiles with so much enthusiasm for the hobby. Perhaps we'll see a speaker cable review sometime in the near future? :greengrin:


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Thanks Grayson! Speaker cables probably not :-) However I did just try bi-wiring for the first time.... I haven’t really had time to do any critical listening to determine if it made a difference hmmmm... I feel a review coming on!


Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
Thanks Grayson! Speaker cables probably not :-) However I did just try bi-wiring for the first time.... I haven’t really had time to do any critical listening to determine if it made a difference hmmmm... I feel a review coming on!
Cool!

Just to add to your bi-wiring note...I have a set of Vandersteen Model 2s..the original ones from the late 70's. I was donated them a few months ago and I really didn't want to bother with bi-wiring them both due to costs and my natural skepticism. Fast forward a month later and I gave in and bi-wired them up. It truly made the speakers open up..the sound is so much more articulate now. I did read from the Vandersteen literature that the speakers are designed for bi-wiring but read online from others that whether it's designed for or not bi-wiring should not make any difference. Well it sure did in my case!! : )

From the Vandersteen website:

"The crossovers in Vandersteen bi-wirable speakers are engineered with completely separate high-pass and low-pass sections. The bass inputs pass low-frequencies to the woofers, but become more and more resistive at higher frequencies. The treble inputs pass high-frequencies to the midrange and tweeter, but become more and more resistive at low-frequencies. The output from the amplifier always takes the path of least resistance so deep bass frequencies go to the bass input (Low impedance at low-frequencies) rather than to the treble inputs (High impedance at low frequencies). For the same reason, treble frequencies go to the treble input (Low impedance at high-frequencies) rather than to the bass inputs (High impedance at high-frequencies). At the actual crossover frequency, the output from the amplifier would be divided equally between the two inputs as they would both have the same impedance at that frequency. Because of the different reflected impedances of the cables, the crossover between the woofer and midrange actually occurs at the wire ends where they connect to the amplifier.

The benefits of bi-wiring are most obvious in the midrange and treble. The low-current signal to the midrange and tweeter drivers does not have to travel on the same wire as the high-current woofer signal. The field fluctuations and signal regeneration of the high-current low-frequencies are prevented from distorting or masking the low-current high-frequencies. The back EMF (Electro-Mechanical Force) from the large woofer cannot affect the small-signal upper frequencies since they do not share the same wires.

The effects of bi-wiring are not subtle. The improvements are large enough that a bi-wire set of moderately priced cable will usually sound better than a single run of more expensive cable."


Interesting food for thought!


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Cool!

Just to add to your bi-wiring note...I have a set of Vandersteen Model 2s..the original ones from the late 70's. I was donated them a few months ago and I really didn't want to bother with bi-wiring them both due to costs and my natural skepticism. Fast forward a month later and I gave in and bi-wired them up. It truly made the speakers open up..the sound is so much more articulate now. I did read from the Vandersteen literature that the speakers are designed for bi-wiring but read online from others that whether it's designed for or not bi-wiring should not make any difference. Well it sure did in my case!! : )

From the Vandersteen website:

"The crossovers in Vandersteen bi-wirable speakers are engineered with completely separate high-pass and low-pass sections. The bass inputs pass low-frequencies to the woofers, but become more and more resistive at higher frequencies. The treble inputs pass high-frequencies to the midrange and tweeter, but become more and more resistive at low-frequencies. The output from the amplifier always takes the path of least resistance so deep bass frequencies go to the bass input (Low impedance at low-frequencies) rather than to the treble inputs (High impedance at low frequencies). For the same reason, treble frequencies go to the treble input (Low impedance at high-frequencies) rather than to the bass inputs (High impedance at high-frequencies). At the actual crossover frequency, the output from the amplifier would be divided equally between the two inputs as they would both have the same impedance at that frequency. Because of the different reflected impedances of the cables, the crossover between the woofer and midrange actually occurs at the wire ends where they connect to the amplifier.

The benefits of bi-wiring are most obvious in the midrange and treble. The low-current signal to the midrange and tweeter drivers does not have to travel on the same wire as the high-current woofer signal. The field fluctuations and signal regeneration of the high-current low-frequencies are prevented from distorting or masking the low-current high-frequencies. The back EMF (Electro-Mechanical Force) from the large woofer cannot affect the small-signal upper frequencies since they do not share the same wires.

The effects of bi-wiring are not subtle. The improvements are large enough that a bi-wire set of moderately priced cable will usually sound better than a single run of more expensive cable."


Interesting food for thought!

Of course when I’m looking for it I can’t find it. I recently read an article that had measurements to support the various bi-wiring schemes. I did find another here... https://www.qacoustics.co.uk/blog/2016/06/08/bi-wiring-speakers-exploration-benefits/ Claims and measurements to back up those claims made me decide to give it a try. I’m running belden 10 ga. My speakers are two way so nice and simple. I’ll reinstall the jumpers when I have a chance and AB bi-wire vs. straight wire and let you know what I hear.

This stuff is always interesting :-)

T


Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
Of course when I’m looking for it I can’t find it. I recently read an article that had measurements to support the various bi-wiring schemes. I did find another here... https://www.qacoustics.co.uk/blog/2016/06/08/bi-wiring-speakers-exploration-benefits/ Claims and measurements to back up those claims made me decide to give it a try. I’m running belden 10 ga. My speakers are two way so nice and simple. I’ll reinstall the jumpers when I have a chance and AB bi-wire vs. straight wire and let you know what I hear.

This stuff is always interesting :-)

T
Thanks for the article link! I'll have to find some time today to read through the whole thing : )


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
985
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
Very interesting read and results Tom!

Ive always been in the camp of they dont make a difference as long as they are solid connection on both ends and are of appropriate gauge. It was interesting to read that the power conditioners were indeed making a difference in sound, now you have me rethinking how i have my system wired up through my Eathereal power centers.

@Grayson Dere, what gauge speaker wire are you using? Ive seen people who switch from normal to bi-amped stating differences but later finding out that they were not using at least 12awg wire to begin with.


Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
Very interesting read and results Tom!

Ive always been in the camp of they dont make a difference as long as they are solid connection on both ends and are of appropriate gauge. It was interesting to read that the power conditioners were indeed making a difference in sound, now you have me rethinking how i have my system wired up through my Eathereal power centers.

@Grayson Dere, what gauge speaker wire are you using? Ive seen people who switch from normal to bi-amped stating differences but later finding out that they were not using at least 12awg wire to begin with.
That's fascinating, Tony. I'm using 14 gauge...and the runs are 12 ft. I wonder if that's why I'm hearing a difference?


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
985
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
Well, I would try some 12awg wire and go back to the way you had it as see what you hear? In my mind bi-amping speakers achieves nothing unless your using separate processors for both highs and lows otherwise there should be no difference.
I've tried it and it resulted in no audable difference


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Well, I would try some 12awg wire and go back to the way you had it as see what you hear? In my mind bi-amping speakers achieves nothing unless your using separate processors for both highs and lows otherwise there should be no difference.
I've tried it and it resulted in no audable difference
Hi Tony,
I was also of the opinion that bi-wiring should also make no difference in the sound. However I happened to run across a couple of articles that went through the various bi-wiring schemes and showed measurements after implementing each one. The tests and measurements seem to indicate that there was a difference. Intermodulation distortion was decreased, and crossover gaps were filled in. Frequency response also seem to Flatten out. Now, I can’t confirm that in anyway but I am going to attempt to bi-wire and take some measurements before and after. I will let you know if I can figure anything out or determine anything either subjectively or objectively :-) I have to say that after bi-wiring that I have not done any any critical listening or testing. I will try to take a good listen sometime this weekend to see if I actually made a difference in the sound bi-wiring. Just the simple idea that I doubled the wire gauge (twin 10 ga belden) May have improved something but at this point I don’t know. This is kind of fun :-)

Cheers!

Tom


AudiocRaver

Senior Admin
Staff member
Joined
Nov 21, 2016
Messages
777
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
Good detective work and writeup.


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
985
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
Don't get confused, bi-wire and bi-amping are two different things.
Bi-wire is just adding wire but running it to the same amp binding posts
Bi-amping is where you run separate wires to a different amp output for the highs and lows.


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Very interesting read and results Tom!

Ive always been in the camp of they dont make a difference as long as they are solid connection on both ends and are of appropriate gauge. It was interesting to read that the power conditioners were indeed making a difference in sound, now you have me rethinking how i have my system wired up through my Eathereal power centers.

@Grayson Dere, what gauge speaker wire are you using? Ive seen people who switch from normal to bi-amped stating differences but later finding out that they were not using at least 12awg wire to begin with.
Hi Tony,
I think that it has something to with the power conditioner itself and the current demands placed on that piece of equipment. Since large power amps are the biggest current hogs it just makes sense, at least to me, that bypassing the power conditioner would yield the greatest change if there was going to be one. In effect you are removing one step of regulation, or limiter, on the current supplied.

It’s an easy enough test to do (and even easier if there is someone to swap the cables for you) at the back of the amp leaving one cable plugged into your power conditioner and another plugged directly into the wall.

Your ethereal power conditioners may very well be more transparent to your equipment than my Furman’s :-)

Let me know what you hear or don’t hear!

If you decide to leave the amps plugged direct and don’t have whole house surge protection I recommend either going whole house or using something to protect the amps like replacing the outlets with Leviton 20 amp surge protectors.

Have fun!
Tom


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Don't get confused, bi-wire and bi-amping are two different things.
Bi-wire is just adding wire but running it to the same amp binding posts
Bi-amping is where you run separate wires to a different amp output for the highs and lows.
I understand :-) bi-wiring is what I’m trying on do. Supposedly the method I’m trying may have the effect of reducing IMD and smoothing out any crossover notches. We’ll see anyway!

If it actually makes an improvement it will be a relatively inexpensive one :-)

T


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
246
Location
Corpus Christi, TX
My AV System
Preamp, Processor or Receiver
Yamaha RX-Z9 A/V Receiver
Main Amp
Ramsa WP-9440 Stereo Amplifier (for subwoofers)
Additional Amp
TIVO Premier TCD746320 (OTA TV tuner)
Other Amp
Nakamichi MB-1 Seven-Disc CD Changer
Universal / Blu-ray / CD Player
Pioneer BDP-23FD Blu Ray Player
Front Speakers
TASCAM SS-R05 Media Player/Recorder
Center Channel Speaker
LRS Electronics Human 61 Speakers (all channels)
Surround Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Back Speakers
Custom Built-in Subwoofer with Dual Shiva 12"
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (subs)
Subwoofers
Adcom ACE-515 (for power management)
Other Speakers or Equipment
Chase Technologies RLC-1 (remote control for subs)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Audio Control R130 Real Time Analyzer
Remote Control
Stock Yamaha Remote
Other Equipment
Pioneer PDP-5070HD Plasma TV
Excellent write-up! I was surprised to see that the Furman conditioner was hindering amplifier performance. Just confirms what I’ve been telling people for years: Plug amps straight onto the wall.

Regards,
Wayne


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Excellent write-up! I was surprised to see that the Furman conditioner was hindering amplifier performance. Just confirms what I’ve been telling people for years: Plug amps straight onto the wall.

Regards,
Wayne
Hi Wayne,
My experience confirms you were spot-on with your recommendation to go directly to the wall !

My original thinking was that the Furman’s were there to smooth out the noise and protect my equipment from surges and lightning strikes. I still think that the protection factor is important so I installed Leviton 20 amp surge protector outlets for a little piece of mind.

But I do believe that plugging the amps directly into the wall does help by giving them unfettered access to the AC they, and this aging Rockn’ Roller, crave!:olddude:

That’s my story and I’m sticking to it:greengrin:!


Todd Anderson

News Editor / Reviewer/ Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
5,131
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Yamaha RX-A3050
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen 2 4xStereo 2XSingle
Other Amp
VSX-1016THX
Universal / Blu-ray / CD Player
OPPO UDP-203
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation
Rear Height Speakers
SVS Prime Elevation
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC RS520
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, OPPO Sonica
Awesome write up @Tom Lehman ... super enjoyable read. I guess the results aren't entirely shocking (but, that said, they are shocking simply because of the $$ amounts involved).

Well done, sir!


Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
Hi Wayne,
My experience confirms you were spot-on with your recommendation to go directly to the wall !

My original thinking was that the Furman’s were there to smooth out the noise and protect my equipment from surges and lightning strikes. I still think that the protection factor is important so I installed Leviton 20 amp surge protector outlets for a little piece of mind.

But I do believe that plugging the amps directly into the wall does help by giving them unfettered access to the AC they, and this aging Rockn’ Roller, crave!:olddude:

That’s my story and I’m sticking to it:greengrin:!

So I was at my local dealer not too long ago and I had a conversation with him regarding power strips/conditioners. When I asked him about how I could possibly make my strip/conditioner sound better he replied that he noticed improvements by reversing the AC cord that connects to the strip. He noticed it doesn't happen in all cases but for some reason 'most' of the NAIM brand power strips sound better with the AC cords reversed (yes he had to reverse engineer and un-solder/re-solder the connections and plug). And in the end my dealer did say plugging amps directly into the wall is the best method.
Just something interesting I thought I'd share : )


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
985
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
he noticed improvements by reversing the AC cord that connects to the strip
No :nono:
very bad idea as you are then taking the neutral and the hot and reversing them.


Grayson Dere

Moderator
Staff member
Joined
Dec 19, 2018
Messages
282
Location
Bay Area, CA
My AV System
Preamp, Processor or Receiver
Integra DTR 7.8
Main Amp
Class D Audio: SDS-470CS
Additional Amp
Shellbrook Audio Hybrid Head headphone amp
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Vandersteen Model 2
Subwoofers
SVS PB-2000
Other Speakers or Equipment
Grado SR 325is headphones
Video Display Device
JVC DLA-X75
Screen
Elite Screen 120"
Other Equipment
Origin Live Aurora MKIII turntable
No :nono:
very bad idea as you are then taking the neutral and the hot and reversing them.
Interesting thought there, Tony. I hadn't thought about that part...perhaps he just literally flipped the wiring over and kept the same polarity? kind of like taking a directional --> interconnect and flipping it around to <--- ? He told me he actually chops off the whole ac cord in the process.


Tony V.

Moderator
Staff member
Joined
Apr 14, 2017
Messages
985
Location
Edmonton, AB, Canada
My AV System
Preamp, Processor or Receiver
Onkyo TX RZ920
Main Amp
Samson Servo 600
Additional Amp
QSC MX1500
Universal / Blu-ray / CD Player
Panasonic 220
Front Speakers
EV Sentry 500
Center Channel Speaker
EV Sentry 500
Surround Speakers
Mission 762
Surround Back Speakers
Mission 762
Subwoofers
SVS PB13u
Video Display Device
Panasonic AE 8000
Remote Control
Logitech 1100
Other Equipment
Denon DT 625 CD/Tape unit, Nintendo WiiU, and more
what he is essentially doing is running the power through the unit backwards and in essence making the internal circuitry that protects against surges useless. It may work as far as supplying power but its not going to protect anything.


Tom L.

Member
Supporter
Thread Starter
Joined
Nov 5, 2018
Messages
86
Location
Lewisville Texas
Awesome write up @Tom Lehman ... super enjoyable read. I guess the results aren't entirely shocking (but, that said, they are shocking simply because of the $$ amounts involved).

Well done, sir!
Thanks Todd!

Agreed! If you have not perused the Audiophile Power Cable market lately you should take a look. Go to the MasterBuilt cables website and check out the prices on speaker cables and power cables... WOW!

I'm working on a mini review about Bi-Wiring and Bi-Amping now and hope to have it completed before I travel next week.

Having more fun than any one man should be allowed :-)

Tom

Top Bottom
