Hello,

I recently purchased a UMIK 1 to tune my car audio system and I am still learning the ropes with tuning and SQ analysis. I have ESB 3.165 doors and ESB 3K UMA units (Mids and Tweeters combined) installed powered by two Rockford Fosgate P400 4ch amps. All signals and crossovers are from Apple Car Play on factory head unit through a MiniDSP C-DSP 6x8 processor. I have crossovers set at 120Hz, 500Hz, and 3500Hz with LR 24dB/Oct filters.

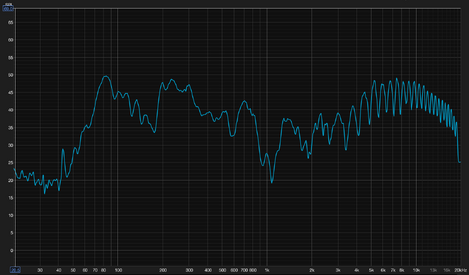

For the combined measurements (No subs) in the images attached below I used 64k FFT periodic pink noise in a RTA using the moving mic method. However there are +- 10dB discrepancies in the high frequency range which make me doubt the accuracy of these measurements.

Is the "comb filtering" of the high frequency range more likely to be an install related issue, or possibly a problem/common issue with my settings in REW?


Attachments

  • UMIK Measurements.png
    UMIK Measurements.png
    286.3 KB · Views: 12

greg90

Member
Joined
Apr 3, 2024
Posts
40
More
Preamp, Processor or Receiver
Onkyo TX-NR7100
Additional Amp
Crown XLS 2502
Subwoofers
SI HT 18
Other Speakers
Minidsp 2x4HD
Did you do all individual speaker measurements and then play the same speaker on the left and right side together to maybe narrow it down?
