NAD T 758 V3 Setup with Dolby Atmos speakers

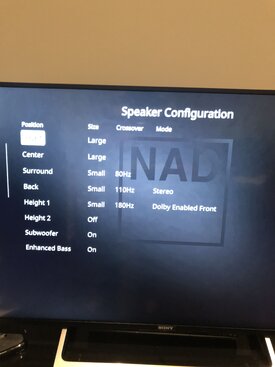

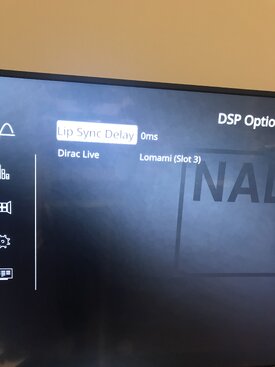

Need to confirm the above settings are correct

  • Any

    Votes: 0 0.0%
  • Any

    Votes: 0 0.0%

  • Total voters
    0
  • Poll closed .

Ravi De Silva

New Member
Thread Starter
Joined
Dec 23, 2018
Messages
4
My AV System
Preamp, Processor or Receiver
NAD T758V3 AV RECEIVER
Additional Amp
AUDIOSOURCE Amp100vs 2 Channel Analog Power Amp 50
Universal / Blu-ray / CD Player
Panasonic
Front Speakers
Montor Audio BRONZE BR5
Center Channel Speaker
Monitor Audio
Surround Speakers
HECO Bipolar
Surround Back Speakers
Energy Cubes
Front Height Speakers
Pioneer SP-T22A-LR Add-on Speaker Dolby Atmos
Subwoofers
Paradighm
Please Tell me how I can setup the speakers and Amplifier setup when I need to connect NAD T 758 V3 as 7.1.2 with Dirac Live LE

I have the following setup.

2 Front Tower Speaker (Monitor Audio)
1 Centre Speaker
2 HECO Surround Speakers
2 Back Energy Cube Speakers
1 Sub woofer Paradighm

2. Dolby Atmos Pioneer Speakers on top of 2 towers front. (7.1.2)
My question is that what position to be selected 2 Dolby Atmos speakers? and Amplifier Set up


Attachments

JStewart

Senior Member
Supporter
Joined
Dec 5, 2017
Messages
266
Location
Central FL
Welcome to the forum!
I'll be glad to get this started for you. Your speaker configuration is correct for what you'd like to do but you didn't mention external amplification in your equipment list. For 7.1.2 you will need external amplification for 2 channels as the NAD has amplification for only 7.


Ravi De Silva

New Member
Thread Starter
Joined
Dec 23, 2018
Messages
4
My AV System
Preamp, Processor or Receiver
NAD T758V3 AV RECEIVER
Additional Amp
AUDIOSOURCE Amp100vs 2 Channel Analog Power Amp 50
Universal / Blu-ray / CD Player
Panasonic
Front Speakers
Montor Audio BRONZE BR5
Center Channel Speaker
Monitor Audio
Surround Speakers
HECO Bipolar
Surround Back Speakers
Energy Cubes
Front Height Speakers
Pioneer SP-T22A-LR Add-on Speaker Dolby Atmos
Subwoofers
Paradighm
Welcome to the forum!
I'll be glad to get this started for you. Your speaker configuration is correct for what you'd like to do but you didn't mention external amplification in your equipment list. For 7.1.2 you will need external amplification for 2 channels as the NAD has amplification for only 7.
I have connected Power Amplifier (AUDIOSOURCE Amp100vs 2 Channel Analog Power Amp 50 Watts Per Channel) taking from the receiver Audio Pre-out Front HT1 and connected 2 Dolby Atmos.
Hope this will answer your requirement.


Todd Anderson

News Editor / Reviewer/ Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
4,964
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Yamaha RX-A3050
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen 2 4xStereo 2XSingle
Other Amp
VSX-1016THX
Universal / Blu-ray / CD Player
OPPO UDP-203
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation
Rear Height Speakers
SVS Prime Elevation
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC RS520
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, OPPO Sonica
I’m not super familiar with the NAD MENU settings - some receivers allow you to set your Atmos channels as modules or ceiling mounted channels.

Doesn’t look like that’s an option for you? If not, I’d think you set them as Height 1.

Last edited:

JStewart

Senior Member
Supporter
Joined
Dec 5, 2017
Messages
266
Location
Central FL
I’m not super familiar with the NAD MENU settings - some receivers allow you to set your Atmos channels as modules or swiping mounted channels.

Doesn’t look like that’s an option for you? If not, I’d think you set them as Height 1.
Good news, Todd. On the T758v3 Dolby Enabled Front is correct for Dolby Atmos speakers that sit on top of fronts. The other options available are Top Front, Top Middle, and Top Rear.


Todd Anderson

News Editor / Reviewer/ Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
4,964
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Yamaha RX-A3050
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen 2 4xStereo 2XSingle
Other Amp
VSX-1016THX
Universal / Blu-ray / CD Player
OPPO UDP-203
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation
Rear Height Speakers
SVS Prime Elevation
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC RS520
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, OPPO Sonica
Nice! That makes it super easy!


Ravi De Silva

New Member
Thread Starter
Joined
Dec 23, 2018
Messages
4
My AV System
Preamp, Processor or Receiver
NAD T758V3 AV RECEIVER
Additional Amp
AUDIOSOURCE Amp100vs 2 Channel Analog Power Amp 50
Universal / Blu-ray / CD Player
Panasonic
Front Speakers
Montor Audio BRONZE BR5
Center Channel Speaker
Monitor Audio
Surround Speakers
HECO Bipolar
Surround Back Speakers
Energy Cubes
Front Height Speakers
Pioneer SP-T22A-LR Add-on Speaker Dolby Atmos
Subwoofers
Paradighm

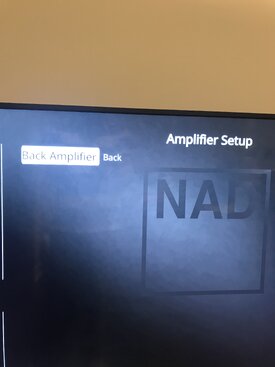

Amp setup is kept as back position. is it correct? or should it be at zone2?
