Microphone direction

Vladimir_1953

New Member
Thread Starter
Joined
Jul 5, 2018
Messages
39
More
Preamp, Processor or Receiver
ROTEL RC-990
Main Amp
ROTEL RB-991
Universal / Blu-ray / CD Player
DENON DCD-2000AE, ROTEL RCD-991AE
Front Height Speakers
Dynaudio Crafft
What is the optimal microphone location for measurements in the car?
1. The left side is at the point of the left ear
Right side - at the point of the right ear
2. In the middle of the driver’s seat at ear level
3. ???

Microphone direction?
1. Forward towards the windshield
2. vertically up


DanDan

Moderator
Staff member
Joined
Mar 10, 2018
Messages
761
Presuming you have a Calibration File I would point it either up or down 90 degrees. Probably down to avoid the very close roof reflections.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,309
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Streaming Equipment
Kaleidescape | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
In my truck I point it up and place it at the tip of my nose, left ear, then right ear. I know some of the 12 volt guys move it around a lot, but I have not gotten good results doing that.


Vladimir_1953

New Member
Thread Starter
Joined
Jul 5, 2018
Messages
39
More
Preamp, Processor or Receiver
ROTEL RC-990
Main Amp
ROTEL RB-991
Universal / Blu-ray / CD Player
DENON DCD-2000AE, ROTEL RCD-991AE
Front Height Speakers
Dynaudio Crafft
Microphone Behringer ECM8000

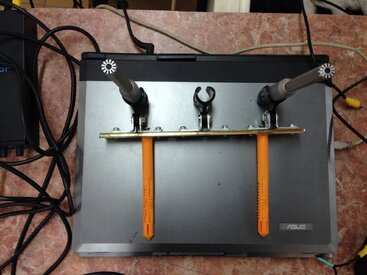

Experimenting 2 mic measurements


Attachments

  • IMG_930.jpg
    275.1 KB · Views: 82
  • IMG_910.jpg
    307.5 KB · Views: 86
  • IMG_911.jpg
    145.6 KB · Views: 83

DanDan

Moderator
Staff member
Joined
Mar 10, 2018
Messages
761

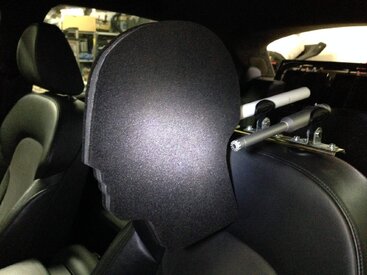

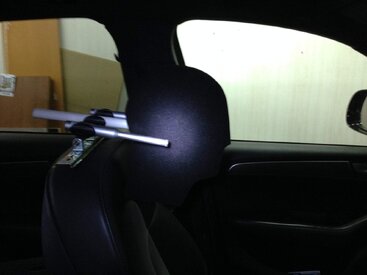

Well done Vladmir, a lovely looking Jecklin Disc. IMO this is how all acoustic measurement should be done.
