Before EQ and after EQ measurements - please advise if this is correct

blackhole

Registered
Thread Starter
Joined
Mar 2, 2023
Posts
13
Hello REW experts,
In a small room using a vintage Sherwood s-7200 and PSB Alpha B bookshelf speakers in near field setup.
Using SMSL DAC via USB with PC as the source.
Using UMIK-1 and REW software please see attached curves before and after EQ.
Does the curve post EQ look correct? Please advise.
I used house curve based on Julian Krause video for filters.
Is there more information needed to asses these graphs?
I am using Equalizer APO.



Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Posts
685
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Streaming Equipment
Roku Express
Front Speakers
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Center Channel Speaker
Canton Karat 920
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers
Adcom ACE-515 (for power management)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Video Display Device
Yamaha DT-2 (digital clock display)
Remote Control
Stock Yamaha Remote
Other Equipment
Audio Control R130 Real Time Analyzer
Doesn’t appear to be enough difference between the before and after to make an audible difference. What do your ears tell you?

Regards,
Wayne


blackhole

Registered
Thread Starter
Joined
Mar 2, 2023
Posts
13
i am changing the target DB level to 70.
So should i try different target levels until the sound is satisfactory?



linuxonly

Member
Joined
Jul 27, 2024
Posts
112
More
Preamp, Processor or Receiver
Logitech Z906
DAC
AMD FCH Azalia
Computer Audio
SPDIF output with alsa, pipewire, wireplumber on Fedora 40
Streaming Equipment
Kodi
Front Height Speakers
33 in
Middle Height Speakers
30 in
Rear Height Speakers
57 in
Video Display Device
X11/VGA + X11/DVI
i am changing the target DB level to 70.
So should i try different target levels until the sound is satisfactory?

View attachment 73705
Hi,

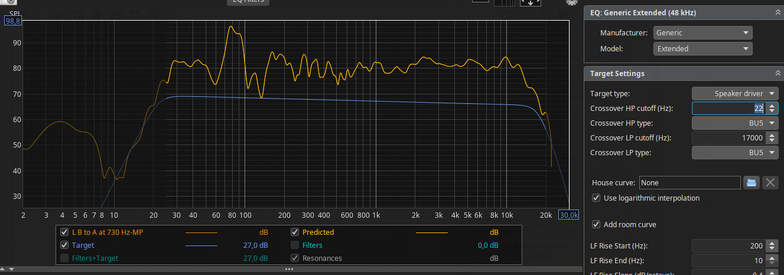

If I understood correctly, you want to avoid any boost. You have 2 nulls at 87 and 105 Hz Therefore as a starting point, I would place the target below those nulls. Also adjust the crossover HP cutoff to match the natural slope of your RMS average. Here's an example. Lastly set the individual max boost to 0. If I made mistakes, please feel free to correct me. This would be my first 'diagnostic'.

Capture d’écran du 2024-09-15 09-20-12.png


moedra

Member
Joined
Mar 1, 2021
Posts
140
It's probably much better to do an inversion, but that requires convolution. Are you are implementing the filters as data typed into an equalizer? Or are you using impulse responses in a convolver? I haven't used Equalizer APO in ages, but I know it can do both.


blackhole

Registered
Thread Starter
Joined
Mar 2, 2023
Posts
13
Hi,

If I understood correctly, you want to avoid any boost. You have 2 nulls at 87 and 105 Hz Therefore as a starting point, I would place the target below those nulls. Also adjust the crossover HP cutoff to match the natural slope of your RMS average. Here's an example. Lastly set the individual max boost to 0. If I made mistakes, please feel free to correct me. This would be my first 'diagnostic'.

View attachment 73707

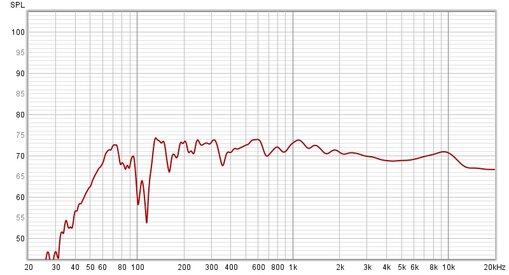

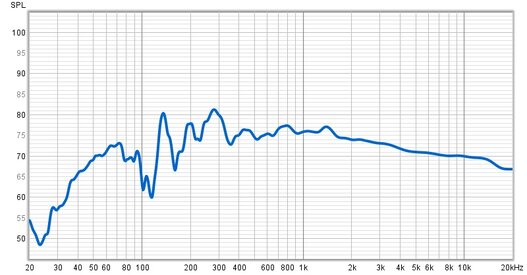

Thanks. I followed your steps.Please see attached before-EQ and after-EQ photos attached.
