AV NIRVANA Speaker Evaluation Event - Tower Speakers $1200 or Less (Results)

Matthew J Poes

Staff Writer
Staff member
Joined
Oct 18, 2017
Messages
1,830
Great job on these evaluations. I particularly like the inclusion of the measurements and the decision to test in 2 locations and with and without Dirac. I still need to read through all this more carefully as there is a lot of good information here.

Are the JBL horns really a compression driver? The
photos
online looked like this is a typical dome using with a phase button in front of it driving the horn/waveguide. The Klipsch looks similar.

The JBL Pro 7 Series line would be more interesting to me. The 708i at $1200 looks to be a good candidate for true pro performance - lots of headroom. I have never heard them though.
Yes it's really a CD. I can't seem to find a picture on the web.


tesseract

Senior Admin
Staff member
Joined
Nov 12, 2016
Messages
1,074
Location
Lincoln, NE
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-2 Gen 2
Additional Amp
Emotiva XPA-3 Gen 2
Other Amp
Dayton SA1000
Universal / Blu-ray / CD Player
Sony BDP S590 & Pioneer DV-610AV
Front Speakers
JTR NOESIS 210 RT - L/R mains
Center Channel Speaker
Chase SHO-10 - Center
Surround Speakers
Chase PRO-10 - Surrounds
Subwoofers
Chase VS-18.1 x 2 - Subwoofers
Video Display Device
Vizio E550VL
Other Equipment
h/k TC35C/Ortofon Super OM10/Pro-Ject Phono Box S
Yes, the JBL uses a compression driver, crossed over fairly high @1500 Hz.


Matthew J Poes

Staff Writer
Staff member
Joined
Oct 18, 2017
Messages
1,830
Yes, the JBL uses a compression driver, crossed over fairly high @1500 Hz.
I like that you said "crossed over fairly high". Only in the world of JBL CD's would 1500hz be called high.

I imagine none of the other speakers had tweeters that could cross that low. That's one of the nice advantages of 2 way CD/Waveguide based speakers. A single driver can handle a lot of the range. Like all of the treble and upper midrange.

If we can accept that no crossover is perfect and that all crossovers do some harm, then having just one that falls out of our more sensitive region say at 1500hz or below is really handy.


jtalden

Active Member
Joined
May 22, 2017
Messages
155
Location
Arizona, USA
My AV System
Preamp, Processor or Receiver
Marantz AV7705 Pre/Pro
Main Amp
Rotel RMB-1066 6 chnl P-amp x 2
Additional Amp
Behringer DCX2496 x 2
Universal / Blu-ray / CD Player
OPPO BDP-103 Universal Player
Front Speakers
DIY SEAS H1456/H1212 Spkr x 5
Subwoofers
DIY JBL 2235H 15" SW x 2
Video Display Device
JVC DLA-X790R
Screen
Da-Lite Da-Snap 39105V - 92"
Thanks, i
t is in fact well identified as CD in the JBL advertising. I
t must have only been the Klipsch that gave me the dome impression when reviewing the lineup of speakers. I should have double checked before posting.


tesseract

Senior Admin
Staff member
Joined
Nov 12, 2016
Messages
1,074
Location
Lincoln, NE
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-2 Gen 2
Additional Amp
Emotiva XPA-3 Gen 2
Other Amp
Dayton SA1000
Universal / Blu-ray / CD Player
Sony BDP S590 & Pioneer DV-610AV
Front Speakers
JTR NOESIS 210 RT - L/R mains
Center Channel Speaker
Chase SHO-10 - Center
Surround Speakers
Chase PRO-10 - Surrounds
Subwoofers
Chase VS-18.1 x 2 - Subwoofers
Video Display Device
Vizio E550VL
Other Equipment
h/k TC35C/Ortofon Super OM10/Pro-Ject Phono Box S
I like that you said "crossed over fairly high". Only in the world of JBL CD's would 1500hz be called high.

I imagine none of the other speakers had tweeters that could cross that low. That's one of the nice advantages of 2 way CD/Waveguide based speakers. A single driver can handle a lot of the range. Like all of the treble and upper midrange.

If we can accept that no crossover is perfect and that all crossovers do some harm, then having just one that falls out of our more sensitive region say at 1500hz or below is really handy.
I'd prefer to see the waveguide handle 1000 Hz on up, it sure is big. Dunno what it's pattern control is below 1500 Hz or if the CD can handle going that low, though.


Matthew J Poes

Staff Writer
Staff member
Joined
Oct 18, 2017
Messages
1,830
I'd prefer to see the waveguide handle 1000 Hz on up, it sure is big. Dunno what it's pattern control is below 1500 Hz or if the CD can handle going that low, though.
The crossover point should be set at the place where directivity between the midbass and horn match. Otherwise the directivity is either limited by the waveguide or uneven. This point Is related to both the diameter of the waveguide and the diameter of the woofer. 8" woofers have near 180 degree dispersion up through 1khz and the waveguide, which looks to have an effect width of about 10 inches would only control dispersion down to about 1200hz. That means the crossover has to be set higher, like 1.5khz or the horizontal response will have a variation in the slope between say 1000hz and 1500hz as compared to the rest of the range.

There seems to be a misconception on some forums that the waveguide does all the dispersion control. Actually you intentionally want the woofer to be large and have a sloping directivity off axis to blend with the waveguide since that extends the dispersion control down a lot lower.

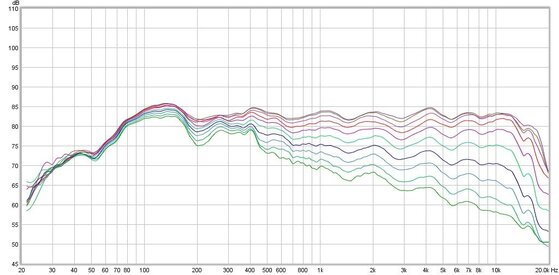

Here is Matt Grants measurement of the Fusion 15 which has a 15" woofer and 15" wide waveguide as an example. The waveguide couldn't control dispersion down past 1khz. It's crossover is 1250hz I believe.


You can see smooth directivity control down to 600hz or so. That's because of the directivity of the woofer. Just a wiggle of evidence of the actual crossover at 1250hz. That's how a speaker should be designed.


tesseract

Senior Admin
Staff member
Joined
Nov 12, 2016
Messages
1,074
Location
Lincoln, NE
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-2 Gen 2
Additional Amp
Emotiva XPA-3 Gen 2
Other Amp
Dayton SA1000
Universal / Blu-ray / CD Player
Sony BDP S590 & Pioneer DV-610AV
Front Speakers
JTR NOESIS 210 RT - L/R mains
Center Channel Speaker
Chase SHO-10 - Center
Surround Speakers
Chase PRO-10 - Surrounds
Subwoofers
Chase VS-18.1 x 2 - Subwoofers
Video Display Device
Vizio E550VL
Other Equipment
h/k TC35C/Ortofon Super OM10/Pro-Ject Phono Box S
Yes, we want the crossover just before the woofer starts beaming, handing off smoothly to the waveguide. There are some WG's that can dip down much lower, of course, maintaining directvity almost to Schroeder, which can be useful in smaller rooms.

It is a balancing act, one that is often unbalanced by poor dispersion matching between disparate drivers.


Matthew J Poes

Staff Writer
Staff member
Joined
Oct 18, 2017
Messages
1,830
Yes, we want the crossover just before the woofer starts beaming, handing off smoothly to the waveguide. There are some WG's that can dip down much lower, of course, maintaining directvity almost to Schroeder, which can be useful in smaller rooms.

It is a balancing act, one that is often unbalanced by poor dispersion matching between disparate drivers.
No no, that was the oppossite of the point I was making. That's the misnomer. You want to use the change in directivity of the woofer, the beaming, as part of the directivity control. The SEOS 15 has no directivity control at 600hz but the Fusion 15 does.

You can certainly do what you say, but then you are mixing big waveguides and small woofers. Why not just use a big woofers and extend the directivity control significantly.

QSC actually makes a big deal of this now. I think they call it directivity matches crossovers, something like that.

Point is a woofer beaming is a good thing and you want to actually use that quality in the speaker.


tesseract

Senior Admin
Staff member
Joined
Nov 12, 2016
Messages
1,074
Location
Lincoln, NE
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-2 Gen 2
Additional Amp
Emotiva XPA-3 Gen 2
Other Amp
Dayton SA1000
Universal / Blu-ray / CD Player
Sony BDP S590 & Pioneer DV-610AV
Front Speakers
JTR NOESIS 210 RT - L/R mains
Center Channel Speaker
Chase SHO-10 - Center
Surround Speakers
Chase PRO-10 - Surrounds
Subwoofers
Chase VS-18.1 x 2 - Subwoofers
Video Display Device
Vizio E550VL
Other Equipment
h/k TC35C/Ortofon Super OM10/Pro-Ject Phono Box S
No no, that was the oppossite of the point I was making. That's the misnomer. You want to use the change in directivity of the woofer, the beaming, as part of the directivity control. The SEOS 15 has no directivity control at 600hz but the Fusion 15 does.

You can certainly do what you say, but then you are mixing big waveguides and small woofers. Why not just use a big woofers and extend the directivity control significantly.

QSC actually makes a big deal of this now. I think they call it directivity matches crossovers, something like that.

Point is a woofer beaming is a good thing and you want to actually use that quality in the speaker.
I am on board with what you are saying, crossing over where the woofer starts to beam still uses the woofers directivity abilities as the crossover is not a brick wall, but gradual slope into the CD driver. Too high of a crossover starts to leave a hole in the response as the woofer struggles to reproduce frequencies beyond its ability.

Please feel free to start a separate thread about this, as it is a topic worthy of its own.


AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
The KEF Q900 evaluation has been posted.


Todd Anderson

News Editor / Reviewer/ Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
5,244
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Denon X8500H
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
VSX21-THX
Universal / Blu-ray / CD Player
OPPO UDP-205, UDP-203, Panasonic UB820
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation
Rear Height Speakers
SVS Prime Elevation
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC RS520
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F
I almost feel like this was as much about Dirac Live as it was the speakers for me... I made comparisons with and without in every listening session. It just makes so much difference in how the speakers sound.
Sonnie (and Wayne)... several years you guys did a Audyssey/Dirac comparison. If I'm not mistaken, your conclusion was that you had a hard time hearing any difference between the two? You'll have to correct me if I'm wrong... anyhow, wondering if that's since changed?


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,200
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD T-758 AVR
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Universal / Blu-ray / CD Player
OPPO UDP-205 4K UHD Player
Front Speakers
Emotiva T2
Center Channel Speaker
Emotiva C2
Surround Speakers
Emotiva T1
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
Dual Custom Built 18" Subs
Video Display Device
Epson 4040
Screen
Elite Screen
Remote Control
Universal MX-890
Sonnie (and Wayne)... several years you guys did a Audyssey/Dirac comparison. If I'm not mistaken, your conclusion was that you had a hard time hearing any difference between the two? You'll have to correct me if I'm wrong... anyhow, wondering if that's since changed?
I don't remember enough about it to say... been too long ago. I know I did not know nearly as much about using DL then as I do now. Wayne might can elaborate more.

I don't currently have Audyssey, but the last time I did (about 6 months ago) and was comparing the two, I could definitely tell a difference, but Audyssey also did not seem to do near as good of a job with the response as Dirac Live has been doing.

I know years ago I was getting a better looking response from Audyssey than I can today. The last measurements with Audyssey did not look anywhere near as good as they do with Dirac Live. It may be as simple as the fact that I use to apply 1/3 octave smoothing with Audyssey, so it always looked good. At 1/12th smoothing that we use now, it doesn't look anywhere near as good, but it looks good with DL. I may have another Denon in here before too much longer, so perhaps we'll travel down that road again.


AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)

AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
I don't remember enough about it to say... been too long ago. I know I did not know nearly as much about using DL then as I do now. Wayne might can elaborate more.

I don't currently have Audyssey, but the last time I did (about 6 months ago) and was comparing the two, I could definitely tell a difference, but Audyssey also did not seem to do near as good of a job with the response as Dirac Live has been doing.

I know years ago I was getting a better looking response from Audyssey than I can today. The last measurements with Audyssey did not look anywhere near as good as they do with Dirac Live. It may be as simple as the fact that I use to apply 1/3 octave smoothing with Audyssey, so it always looked good. At 1/12th smoothing that we use now, it doesn't look anywhere near as good, but it looks good with DL. I may have another Denon in here before too much longer, so perhaps we'll travel down that road again.
We were being very cautious in our approach comparing the two technologies and products. Initially, that approach was to keep the two on an equal apples-to-apples footing, and compared in that way there was not a dramatic difference between the two.

We soon realized that we were basically tying one arm of Dirac Live behind its back. Allowing Dirac to really "do its thing as designed," including the use of custom target curves, Dirac Live Unleashed sounded better hands down, and required a lot less fiddling with the mic setup pattern during calibration. Time after time we heard users say their first Dirac Live calibration gave better SS&I results than they ever had with Audyssey after hundreds of calibrations worth of Audyssey experience, and our findings matched that experience, so we declared Dirac to be the EQ tool of choice and, as one convert put it, "never looked back."

Last edited:

AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)

AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
The SVS Prime Tower evaluation has been posted! That is the last of them!

A few final thoughts to be added tomorrow.


Todd Anderson

News Editor / Reviewer/ Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
5,244
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
Denon X8500H
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
VSX21-THX
Universal / Blu-ray / CD Player
OPPO UDP-205, UDP-203, Panasonic UB820
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation
Rear Height Speakers
SVS Prime Elevation
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC RS520
Screen
Carada Cine-White 0 gain
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F
Awesome write ups! :T


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,200
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD T-758 AVR
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Universal / Blu-ray / CD Player
OPPO UDP-205 4K UHD Player
Front Speakers
Emotiva T2
Center Channel Speaker
Emotiva C2
Surround Speakers
Emotiva T1
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
Dual Custom Built 18" Subs
Video Display Device
Epson 4040
Screen
Elite Screen
Remote Control
Universal MX-890
Thanks Todd... it was really a lot of fun. I can't wait until we do it again!


AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
Last edited:

bkeeler10

Senior Member
Joined
Apr 18, 2017
Messages
307
My AV System
Preamp, Processor or Receiver
NAD T758 v3
Main Amp
Outlaw Model 7125
Universal / Blu-ray / CD Player
Oppo BDP-103/Panasonic UB820
Front Speakers
Revel Concerta2 F36
Center Channel Speaker
Revel Concerta2 F36
Surround Speakers
Revel Concerta2 M16
Surround Back Speakers
Revel Concerta2 M16
Front Height Speakers
Tannoy AMS 6DC
Rear Height Speakers
Tannoy AMS 6DC
Subwoofers
Rythmik F18 (2)
Other Speakers or Equipment
miniDSP 2x4
Video Display Device
JVC DLA-RS440
Screen
Seymour AV retractable 110" 2.35 AR (UF material)
Awesome work guys. It was an enjoyable read as usual.

I expected the Chane to perform. But I am also intrigued by the Emotiva. That's the fun of reading these things - discovering a new speaker to put on my radar. I'm sure this speaker discovery is a large part of the fun for you guys too.

Looking forward to the next one. Do you have a product category and/or price range in mind?


tesseract

Senior Admin
Staff member
Joined
Nov 12, 2016
Messages
1,074
Location
Lincoln, NE
My AV System
Preamp, Processor or Receiver
Emotiva XMC-1
Main Amp
Emotiva XPA-2 Gen 2
Additional Amp
Emotiva XPA-3 Gen 2
Other Amp
Dayton SA1000
Universal / Blu-ray / CD Player
Sony BDP S590 & Pioneer DV-610AV
Front Speakers
JTR NOESIS 210 RT - L/R mains
Center Channel Speaker
Chase SHO-10 - Center
Surround Speakers
Chase PRO-10 - Surrounds
Subwoofers
Chase VS-18.1 x 2 - Subwoofers
Video Display Device
Vizio E550VL
Other Equipment
h/k TC35C/Ortofon Super OM10/Pro-Ject Phono Box S
Awesome work guys. It was an enjoyable read as usual.

I expected the Chane to perform. But I am also intrigued by the Emotiva. That's the fun of reading these things - discovering a new speaker to put on my radar. I'm sure this speaker discovery is a large part of the fun for you guys too.

Looking forward to the next one. Do you have a product category and/or price range in mind?
I am thinking we discussed a $2500 and under range for the next evaluation.


Matthew J Poes

Staff Writer
Staff member
Joined
Oct 18, 2017
Messages
1,830
Great reviews guys. The SVS seemed to have really performed. It's measurements look great as do your subject views.

That is one I was very curious about. I'd never seen a good review of them before.


AudiocRaver

Senior Admin
Staff member
Thread Starter
Joined
Nov 21, 2016
Messages
780
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
The surprises are the funnest parts of these events. Except for the great food and company.


Spidacat

New Member
Joined
Apr 18, 2017
Messages
2
My AV System
Preamp, Processor or Receiver
Denon AVRX4300H
Main Amp
Emotiva XPA 5
Universal / Blu-ray / CD Player
Oppo 203
Front Speakers
Def Tech BP 7004
Center Channel Speaker
Def Tech CLR 2300
Surround Speakers
Def Tech BP 2X
Front Height Speakers
Def Tech PM 800
Rear Height Speakers
Def Tech PM 800
Subwoofers
PSA V1500, XV15SE
Video Display Device
Vizio M70-C3
Remote Control
Harmony 650
Some speakers may be considered warm in that they tend to make bad recordings sound a bit better. Neutral to bright speakers are more revealing in that they play the material exactly as recorded and they can sound a tad harsh or clinical on poor recordings. I'm very interested in the Chane's and Emotiva's, but I'd really like to hear your thoughts on any of the speakers in regards to these qualities.

Top Bottom
