Amplifier Gain, Insertion Loss... What's Best

whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
I would like to simplify my system. It uses a single 2 channel together with 3 channel amplifer.
The main speakers are on the 2 channel amp, and that amp has a much lower gain than the 3 channel amplifier.
To correct for the difference in gain, I insert a preamp in between my DAC and the 2 channel power amp

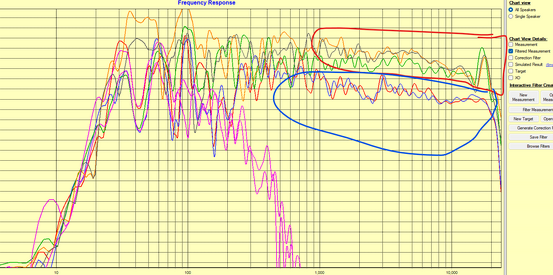

Without preamp in the chain, you can see how the impact of the difference between amps(attachment) . I didn't attach graph with preamp in chain, but
that frequency response shows all levels to be basically the same.

Audiolense can provide the digital correction but is this the way to go, or is this too much of a difference and should I keep the preamp in the chain?
PS - It sounds good to my ears, so maybe that's all that matters? I also have plenty of power for my setup so that's not a concern.

Thanks

Attachments

  • DifferenceInGain.png
    50.2 KB · Views: 20

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
734
As long as you have enough gain to play loud enough this gain difference shouldn’t matter. But some times other factors enters, such as noise and impedance matching etc. so it doesn’t hurt to try the preamp.


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,498
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
DAC
Chord Electronics Ltd. Qutest
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers or Equipment
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
If I have read your DAC and Amplifier specs correctly, I would suggest a line-stage preamplifier between your DAC and Amp...
DAC RCA unbalanced line out is 2.1 volts and your Amp is balanced in is 2.0 volts... If your DAC does not explicitly state that it has a preamp in its analogue out section, which I could not verify from the docs, then I would definitely add a line stage pre amp...

I have a Chord DAC which has 1, 2, and 3 volts out, which I set at 2 volts and run into a PrimaLuna line stage Preamp and on to a McIntosh MC152 Amplifier... This is the best combination I have found for my system... However, your milage may vary...


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
If I have read your DAC and Amplifier specs correctly, I would suggest a line-stage preamplifier between your DAC and Amp...
DAC RCA unbalanced line out is 2.1 volts and your Amp is balanced in is 2.0 volts... If your DAC does not explicitly state that it has a preamp in its analogue out section, which I could not verify from the docs, then I would definitely add a line stage pre amp...

I have a Chord DAC which has 1, 2, and 3 volts out, which I set at 2 volts and run into a PrimaLuna line stage Preamp and on to a McIntosh MC152 Amplifier... This is the best combination I have found for my system... However, your milage may vary...
For the FR and FL channels I use a Topping Pre90 to provide additional gain to the Benchmark amp. In the above measurement, that's what's been removed, resulting in the difference between the channels
shown in the graph. Although, the pre90 is transparent I would still like to simplify system, so if I could "replace" the Pre90 with digital correction I'd be very happy with that solution.

Until your post, I completely forgot I had entered equipment info on the site. It's a bit out of date, but basically what you are saying for the exasound is correct.
That DAC, although very good, can't provide enough power to drive the amps together with gain loss introduced by AL. Without digital correction, I'm sure the Exasound would have enough power to drive the amps directly. It needs a preamp on every channel and for that I use a Parasound Halo 7.1 preamp in combination with the Exasound.


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,498
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
DAC
Chord Electronics Ltd. Qutest
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers or Equipment
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
It seems like you have this well thought out and under control... Let your ears be your guide...


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
You do not state which exaSound DAC you have but at least some of them permit per channel level adjustments.
It's the e38, which does allow for this, but I have issues taking measurements with this DAC. Because of that, I measure with a Motu MK5 and I create/use the same correction filters based on the Motu's measurements. If I could, I'd use Jriver as central location to match channel levels, but I can't figure a way to measure with a Jriver/AL audio chain.

Anyway, so far so good with the AL solution, but I need more listening time on it.


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,498
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
DAC
Chord Electronics Ltd. Qutest
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers or Equipment
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
If you are using REW you can use the Generator function to save a sweep tone with a Timing ref as a .wav file that you can play with Jriver thru your signal chain... REW will recognize the Timing ref and take the measurement...

This is how I do it with SweepTone.wav > Audirvana+HangLooseConvolver with FIRs > WiFi > Router > Switch > U1 mini > Chord DAC > Pre > Amp > Speaker(s)... Nothing but a usb mic connected to my laptop for the sweep measurement(s)...

Last edited:

whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
If you are using REW you can use the Generator function to save a sweep tone with a Timing ref as a .wav file that you can play with Jriver thru your signal chain... REW will recognize the Timing ref and take the measurement...

This is how I do it with SweepTone.wav > Audirvana+HangLooseConvolver with FIRs > WiFi > Router > Switch > U1 mini > Chord DAC > Pre > Amp > Speaker(s)... Nothing but a usb mic connected to my laptop for the sweep measurement(s)...
I do not use REW, only Audiolense for my measurements / filters. Also, I moved away from my UMIK-1 because of inconsistent timing measurements i.e. leave microphone in same position and measure several times and results were not consistent. This is with AL and I have no results based off REW measurements.


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,498
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
DAC
Chord Electronics Ltd. Qutest
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers or Equipment
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
I guess I have ran out of ideas then... It would be interesting if REW and Audiolense could exchange files... Then you could play sweep.wav files in your player and thru your signal chain and measure in REW... Then load the captured data into Audiolense for further processing...

If only... :justdontknow:


jrobbins50

Member
Joined
Oct 4, 2018
Messages
179
I use no preamp in my system and adjusted for the insertion loss by using digital gain within HQPlayer. Works really well for me. JCR


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
I use no preamp in my system and adjusted for the insertion loss by using digital gain within HQPlayer. Works really well for me. JCR
Just curious. Do you meausre with both Audiolense and HQPlayer in your audio chain or doing something else?


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,498
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
DAC
Chord Electronics Ltd. Qutest
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers or Equipment
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
I am kind of surprised that the Audiolense Convolver wouldn't have some kind of gain management... The HangLoose Convolver does...


sledwards

Member
Joined
Dec 12, 2018
Messages
17
Just curious. Do you meausre with both Audiolense and HQPlayer in your audio chain or doing something else?
I am using the s88 DAC in my system with HQPlayer. I remove the s88 and use the Motu Ultralite Mk5 for AL measurements. I could never get clean sweeps with s88 for playback and Motu for mic input. I can adjust the gain levels per channel on the Motu prior to measuring. After I create convolution filters in AL, I put the s88 back into the system and load the filters into the Matrix Pipeline in HQPlayer where I can adjust the gain to the levels I had dialed in on the Motu measurement. Hope this helps. BTW, HQPlayer allows the user to quickly change between filter configurations, and while it does not level match, as long as there are not significant insertion losses between the different filters, you can still make quick A/B assessments.


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
I am using the s88 DAC in my system with HQPlayer. I remove the s88 and use the Motu Ultralite Mk5 for AL measurements. I could never get clean sweeps with s88 for playback and Motu for mic input. I can adjust the gain levels per channel on the Motu prior to measuring. After I create convolution filters in AL, I put the s88 back into the system and load the filters into the Matrix Pipeline in HQPlayer where I can adjust the gain to the levels I had dialed in on the Motu measurement. Hope this helps. BTW, HQPlayer allows the user to quickly change between filter configurations, and while it does not level match, as long as there are not significant insertion losses between the different filters, you can still make quick A/B assessments.
I also use Mk5 for measurements, and for same reason. Once filters are created, I switch between a couple of DACs, but always use 0DB across devices because of uncertainty of how each DAC's db scales match up with one another. I wasn't sure if, for example, 6db attenuation on one was equal to 6db attenuation on other (I probably just should have tried it, and it makes sense this should work). I'll probably give this approach a try and see how I like it.

PS: AL seems to be doing a very nice job of digitally correcting the levels. So far, I see no issue with it for my setup.

Thanks


jrobbins50

Member
Joined
Oct 4, 2018
Messages
179
And I will join the chorus. I have stopped using my Okto dac8pro for AL measurements and now use the Motu mk5. My experience is that the dial in of the attenuation adjustments in the Motu matched up with HQP. The difference is that the Motu attenuates and HQP adds gain. So, I just have everything in the same dB relationship to each other and it works very well. JCR


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
Ok, you guys have convinced me to give this a try some time down the road, but for now I'm going to stick with the AL digital correction as it sounds very good to me.

The difference is that the Motu attenuates and HQP adds gain. So, I just have everything in the same dB relationship to each other and it works very well. JCR
Adding gain doesn't risk clipping?


Dali_20

New Member
Joined
May 20, 2024
Messages
7
The important thing is that the final response of the drivers is aligned in magnitude, then how you get there makes no difference.
Audiolense should do this automatically, therefore the single gain of the various channels is irrelevant.
Clearly if you have big differences in gain there will be the channels with the greatest gain that will be more penalized as SNR by the digital attenuation of the filters.
But digital music is already digitally modulated in magnitude, so it doesn't change much...

Maybe for safety use digital volume attenuation of the DAC with higher output as a limiter, so you avoid accidents...

But it is not clear to me how the volume is currently adjusted. Digitally I assume right?


jrobbins50

Member
Joined
Oct 4, 2018
Messages
179
To WhoAreYou’s question re clipping. I have not noticed any.

Mitch Barnett could weigh in here. He was the one who said the right way is to equalize the volume levels among drivers, rather than allowing the attenuation solely within AL. @Mitchco , perhaps you could comment? JCR


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
To WhoAreYou’s question re clipping. I have not noticed any.

Mitch Barnett could weigh in here. He was the one who said the right way is to equalize the volume levels among drivers, rather than allowing the attenuation solely within AL. @Mitchco , perhaps you could comment? JCR
Perhaps this is is more important when using AL to build your own crossovers.


Mitchco

Member
Joined
Oct 1, 2017
Messages
80
@whoareyou it is hard to tell from your screen shot in the first post what the dB vertical division is? Also, probably more constructive to see the correction filters response... complete with vertical (1dB per div) and horizontal scales.

Yes, AL will make up the gain difference. But if there is too much of a gap between levels, you may need to add more "max corr" to close the gap. Adding more overall correction "can" take away from the music dynamics, aside from introducing more filter insertion loss. Since you have lots of power/headroom, the latter does not matter, but the former might...

It boils down to good engineering practices in gain staging. In my stereo triamp system, I match the levels of the three drivers as closely as possible to the intended target response before correction. Since I use compression drivers on the tweeters, they are way more sensitive then the mids and woofers. So rather than "pad down" the tweeter or turn down any analog or digital gain, I chose an amp with considerably less voltage gain.

With the driver levels matched, I can get away with minimal overall correction, which still provides the smooth response, but retains the dynamics I like. There is a sweet spot to how much max corr one should apply, your ears will tell you...


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
@Mitchco - Edit: The vertical divisions are 2DB (originally had typo of 6DB) It's pretty much spot on with the difference in published gain between my two amps. The total difference in gain is around 6db and that's pretty much the difference in gain between my amps.

I've been very happy with the results having AL do the correction, but since I can't instantly compare corrections, I have no way of knowing if one sounds better than the other. What I do know is the gain corrected filters sound very good, and I don't feel like I'm missing anything (except a few preamp related wires that were somehow always getting tangled up :).

As far as the max gain, I was concerned with how this may be impacted, but the max stayed within same range, and is completely driven by my nasty room null. All simulations also look very similar (but as you suggest, I really should go back and look at some of the graphs with finer resolution).

I was just about to purchase a new lower gain amp, but decided to give this a try. I'm happy enough with result such that I've rethought the purchase.

Last edited:

whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
Regarding the dynamics, does any analysis capture how "much" has been lost? Can you infer anything about the gain from the quality and amplitude of the step response, i.e. cleaner and higher amplitudes translate to better dynamics? Or have I gone off the deep end into pseudo-science ;)?


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
734
The correction limiter operates on a per driver basis, and the limit only operates on lokal dips, not global gain. So I expect the excact same result in most situations with or without digital gain adjustment outside of Audiolense. The logics used for separate the local from global gain is a bit fuzzy, so there may be instances where a difference occurs, but normally not.

Analog gain-matching can have some merits, though, to optimise S/N ratio at a reasonable loud level.


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
191
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
So, I remeasured after adjusting digitally via DAC. The correction filters may look sightly better, but can I hear a difference? Not sure / probably not.
For my room, AL vs DAC approach seems to make little difference.
