Timing measurement delays in Audiolense

2234rew

Member
Thread Starter
Joined
Nov 24, 2020
Messages
233
Hi @Mitchco

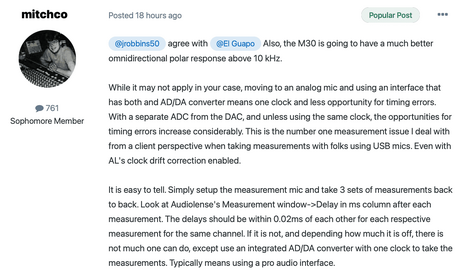

I saw you posted the below on another forum.

What do you mean by "The delays should be within 0.02ms of each other for each respective measurement for the same channel."



Here is my last measurement:

51882


Mitchco

Member
Joined
Oct 1, 2017
Messages
38
Take 3 sets of measurements back to back while changing nothing. Look at the delay column for each measurement. For example, for the midbass, 2.06ms is the reading for measurement 1. Is that the same delay value (i.e. withing +- 0.02ms) for the midbass in measurement 2 and measurement 3? Or do the delays vary? If so, by how much? You are looking for consistency of delay for each measurement session across channels. Hope that helps.


2234rew

Member
Thread Starter
Joined
Nov 24, 2020
Messages
233
Take 3 sets of measurements back to back while changing nothing. Look at the delay column for each measurement. For example, for the midbass, 2.06ms is the reading for measurement 1. Is that the same delay value (i.e. withing +- 0.02ms) for the midbass in measurement 2 and measurement 3? Or do the delays vary? If so, by how much? You are looking for consistency of delay for each measurement session across channels. Hope that helps.
Ah yes, this makes good sense. I get you now.

And the good news for me is yes, I do have this consistency.

Enabling drift correction actually made things worse for me (I have seperate DAC and ADC so I tie them together with ASIO4ALL). The resultant measurement and correction resulted in sound coming from left and right speakers and no phantom center at all for vocals that should be there.

I repeated this about 5 times with same frustrating result.

Then I tried to disable drift correction and boom, phantom center returned immediately and super strong.

So now I keep drift correction disabled.

I recommend to others keeping it enabled though (as default starting point) and only disable if you have major issues like I did.
