I've been dabbling with the Room Sim section of REW.
I did a search for "surface absorption coefficients" to ascertain what coeffs I should be putting in for the various surfaces.

In the Help section of REW, it states that the surface absorption is "independent of angle or frequency".
However all information I found regarding surface absorption indicates that the absorption coefficient IS frequency dependent.

Can John or anyone throw some light on this?

In my case the walls are timber framed with plasterboard (drywall) on both sides, and the ceiling is timber framed with plasterboard on the lower face.
The floor is a carpeted concrete slab.

BTW, I have recently realised that lightweight walls, like I am looking at, become almost transparent below certain frequencies.
i.e. the LF wave velocity is NOT zero at the wall face. Which questions some of the theory behind bass traps.


Nordo

Member
Thread Starter
Joined
Oct 7, 2019
Messages
137
More
Preamp, Processor or Receiver
Denon AVR X1500H
Additional Amp
Sub amp - Behringer EP2500
Universal / Blu-ray / CD Player
Panasoic BD35
Front Speakers
DIY
Center Channel Speaker
DIY
Surround Speakers
DIY
Surround Back Speakers
DIY
Front Height Speakers
-
Rear Height Speakers
-
Subwoofers
Four 15" infinite baffle drivers
Other Speakers or Equipment
HTPC (windows 10 with Kodi)
Video Display Device
Epson EMP-TW2000 projector
Screen
Matt white "blockout" curtain liner
Thanks John.
Is there any guide I can use to estimate what values I should be using in the Room Sim?

I'm only biding my time until we take possession of our new house that has this room I'm modelling, which will be my (very poor) media room (there's no way I can call it a Home Theatre).


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,410
There are useful tables of absorption coefficients here, use the 125 Hz values. The coefficients will mainly affect the height of peaks/depth of dips, the overall distribution won't be affected so for experimenting with positioning options the coefficients aren't that important.


Nordo

Member
Thread Starter
Joined
Oct 7, 2019
Messages
137
More
Preamp, Processor or Receiver
Denon AVR X1500H
Additional Amp
Sub amp - Behringer EP2500
Universal / Blu-ray / CD Player
Panasoic BD35
Front Speakers
DIY
Center Channel Speaker
DIY
Surround Speakers
DIY
Surround Back Speakers
DIY
Front Height Speakers
-
Rear Height Speakers
-
Subwoofers
Four 15" infinite baffle drivers
Other Speakers or Equipment
HTPC (windows 10 with Kodi)
Video Display Device
Epson EMP-TW2000 projector
Screen
Matt white "blockout" curtain liner
That's great.
I had already downloaded a similar table.
But knowing to use to 125Hz coeff. was what I needed to have confirmed.

Thanks so much for your time - yet again. :T


VolunteerPin

New Member
Joined
Jun 6, 2021
Messages
1
Question on this also...I looked over the table above. It has been recommended to me to use two layers of 1" linacoustic with a 3mil plastic between the layers on the front wall (behind my AT screen wall). Any thoughts on what kind of coefficient that would create that I can plug into the simulator? Thanks in advance by a new member (first post).


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,410
Around 0.2, perhaps.

42622


Nordo

Member
Thread Starter
Joined
Oct 7, 2019
Messages
137
More
Preamp, Processor or Receiver
Denon AVR X1500H
Additional Amp
Sub amp - Behringer EP2500
Universal / Blu-ray / CD Player
Panasoic BD35
Front Speakers
DIY
Center Channel Speaker
DIY
Surround Speakers
DIY
Surround Back Speakers
DIY
Front Height Speakers
-
Rear Height Speakers
-
Subwoofers
Four 15" infinite baffle drivers
Other Speakers or Equipment
HTPC (windows 10 with Kodi)
Video Display Device
Epson EMP-TW2000 projector
Screen
Matt white "blockout" curtain liner

John Wilcox

New Member
Supporter
Joined
Jan 27, 2022
Messages
2
More
Preamp, Processor or Receiver
HTP-1
Main Amp
Monolith 11
Additional Amp
Carvin DCM2000L (subs)
Universal / Blu-ray / CD Player
Oppo BDP-93 Panny UB820
Front Speakers
ADS L980
Center Channel Speaker
Custom WMTW ADSL910 drivers
Surround Speakers
JBL P36AW
Surround Back Speakers
JBL P36AW
Front Height Speakers
Yamaha IC800
Rear Height Speakers
Yamaha IC800
Subwoofers
Custom Eclipse SW8200 (2 each)
Video Display Device
LG C1 83"
Remote Control
URC aeros remote
Streaming Equipment
Roku 4800
There are useful tables of absorption coefficients here, use the 125 Hz values. The coefficients will mainly affect the height of peaks/depth of dips, the overall distribution won't be affected so for experimenting with positioning options the coefficients aren't that important.
John, I've been using vector simulation software (e.g., SoundPLAN) for years to do industrial/environmental noise evaluations and mitigation. We always tried to obtain and use octave band absorption coefficients. Are the coefficients to be entered in the room simulator the same absorption units as typically provided in the octave band absorption data available for many materials? For numerous materials, including some in my listening room, only NRC or CAC coefficients are apparently available. Would those be at all relevant to use in for the room simulator coefficients? Would I need to adjust them with a conversion factor?

The surface of the front wall of my room is approximately 50% totally reflective (e.g., OLED panel) and 50% mineral wool (behind perforated panels and cloth). Would it be beneficial to try to use a weighted average of the absorption coefficients for those materials for the entire wall, or would that mess up the modal calculations too much?

Thanks!


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,410
125 Hz octave band coefficients should be reasonable to use. NRC and CAC are not useful as they are based on data at much higher frequencies. An area-weighted average for a surface is the right thing to use.


John Wilcox

New Member
Supporter
Joined
Jan 27, 2022
Messages
2
More
Preamp, Processor or Receiver
HTP-1
Main Amp
Monolith 11
Additional Amp
Carvin DCM2000L (subs)
Universal / Blu-ray / CD Player
Oppo BDP-93 Panny UB820
Front Speakers
ADS L980
Center Channel Speaker
Custom WMTW ADSL910 drivers
Surround Speakers
JBL P36AW
Surround Back Speakers
JBL P36AW
Front Height Speakers
Yamaha IC800
Rear Height Speakers
Yamaha IC800
Subwoofers
Custom Eclipse SW8200 (2 each)
Video Display Device
LG C1 83"
Remote Control
URC aeros remote
Streaming Equipment
Roku 4800
125 Hz octave band coefficients should be reasonable to use. NRC and CAC are not useful as they are based on data at much higher frequencies. An area-weighted average for a surface is the right thing to use.
Thanks


Horst

Member
Joined
Feb 21, 2018
Messages
65
Hi John,

What absorption do I enter for e.g. 0.5m rock wool in the rear area?
or for 1m rock wool?
Special for 20 to 100Hz?
Is there a table

lg


luegotelodigo

New Member
Joined
Nov 2, 2018
Messages
40
I've been using a different approach to set the absorption in room simulator. Rather than chosing theoretical alphas I estimate them with the Sabine equation and the measured RT.

I can provide a longer explanation if needed.


luegotelodigo

New Member
Joined
Nov 2, 2018
Messages
40

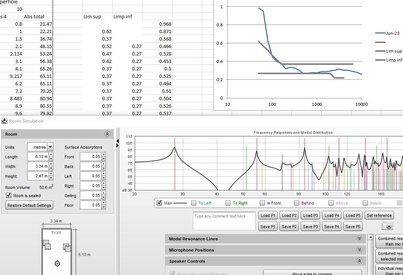

OK, in the image attached you can see the dimensions of my room (6.13*3.34*2.47) meters
