Show me your Panels!

Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903
I'll post mine if you post yours.

In all seriousness, I'd love to see peoples DIY room acoustic treatments. Please share whatever you can. How you built them, the materials, cost estimates, and measurements. I'd love to share lots of the free resources I've come to use in designing and implementing room acoustic treatments.

Please also share your subjective impressions of the improvement. Was it all good? Did it make anything worse? Anything you would do differently next time.

Coming soon from me:
-4.5" 6lb density acoustic panels made with Rockwool from Menards and 7oz canvass (light weight canvas is fairly breathable and acoustically transparent. I wouldn't necessarily use it as speaker cloth, but it is fine for acoustic panels.
-24" Bass trap using the same 6lb rockwool and a few little tricks for maximum LF absorption.


Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903

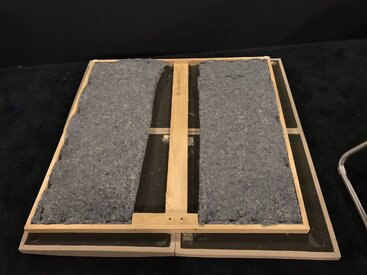

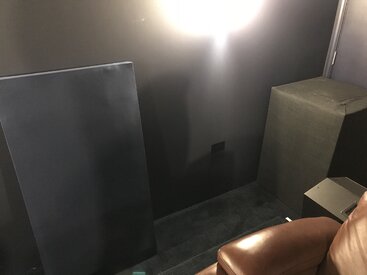

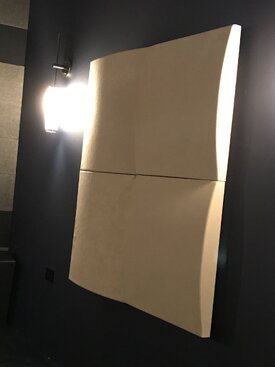

I’m attaching photos of my acoustic treatments. There is a plastic film membrane on that large square treatment with the blue jeans insulation. Also a similar treatment in the lining of the bass trap was done. Those pictures were during dry fitting. Sorry I need to learn to document my builds better, I was covered in saw dust, glue, and Rockwool so pictures were last on my mind.

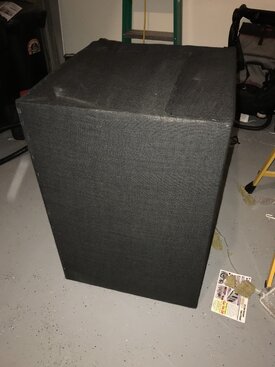

Bass trap is wrapped in Black fine burlap. I paid just a dollar a yard or so.

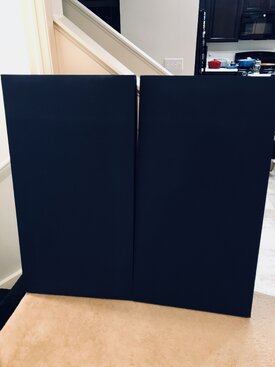

The navy blue panels look really pretty in person and were made with 4” 1x4 select pine frames. I encreases the depth by adding slats across the back for mounting. With mount the panel is effectively 5” deep. It’s wrap in 7oz breathable canvas which is great for acoustic panels, since it stretches.

By the way I think that thick heavy canvass would be great for making a range limited acoustic panel with enhanced LF absorption.


Attachments

  • 35641549-0E21-4BE1-AB84-EEDD5309C2D3.jpeg
    456 KB · Views: 86
  • 9CD234F9-7D2D-4961-9838-3A289FE02715.jpeg
    1.8 MB · Views: 84
  • ED67D64F-E164-4EE1-8863-57DA05F17C0F.jpeg
    694.5 KB · Views: 85
  • FE62B66F-315A-48E1-89B3-B4CC24F7D0C1.jpeg
    1.3 MB · Views: 91
  • 188848B2-0AE9-4FBA-9192-32F39F2D4CC3.jpeg
    1.3 MB · Views: 93
  • A715F854-28AA-4C44-9E07-8628EF5BB2A8.jpeg
    902.7 KB · Views: 89
  • 7DDF4BEF-ADAC-4041-AE29-EDA1F21213A7.jpeg
    1.2 MB · Views: 90
  • 179D1D84-562C-4832-926B-B06692D2382B.jpeg
    200.3 KB · Views: 90

asarose247

New Member
Joined
Nov 29, 2017
Messages
8
new guy on the block . . . still getting to the intro page -for the time being however . .

2 free standing broadband panels, 28ish by 48, 2" 703 infront of 3" roxul, wrapped for fiber control and then an esthetic "look". this is for placement as 1st reflection points for the klipsch rb-51's as l/r in my man cave as the mirrors on the wall, behind heavy curtains, won't take nails very well..

room is only 10.75 deep by 9.5 wide . .
Frames raw.jpg
Frames Stuffed.jpg
Frames whats wrong.jpg
Frames back.jpg
Frames whats wrong.jpg


Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903
new guy on the block . . . still getting to the intro page -for the time being however . .

2 free standing broadband panels, 28ish by 48, 2" 703 infront of 3" roxul, wrapped for fiber control and then an esthetic "look". this is for placement as 1st reflection points for the klipsch rb-51's as l/r in my man cave as the mirrors on the wall, behind heavy curtains, won't take nails very well..

room is only 10.75 deep by 9.5 wide . . View attachment 5264 View attachment 5265 View attachment 5266 View attachment 5267 View attachment 5266

Those panels look awesome. Very professional. I like the stands.


Prof.

Member
Joined
Apr 15, 2017
Messages
76
Location
South Australia
More
Preamp, Processor or Receiver
Pioneer VSX-919
Universal / Blu-ray / CD Player
Panasonic Blu-ray
Front Speakers
Voight VH-1 Folded Horns
Center Channel Speaker
Voight VH-1 Folded Horn
Surround Speakers
Behringer Monitors
Subwoofers
BFM THTLP Subwoofer
Other Speakers or Equipment
Anti-mode 8033 Sub Equalizer
Video Display Device
Mitsubishi HC4000 projector
Screen
SeymourAV XD AT Screen..
Remote Control
Logitech One
Streaming Subscriptions
Darby Darblett video processor
I built these over 15 years ago..
They are made up of 3 separate timber frame sections within the outer frame..
The covering is polyester stretch cloth and each section is filled with 50mm. thick Ultratel (OC75 equivalent) semi rigid fibreglass..
They hang 50mm. away from the wall on French cleats..
The panel are 1600 high x 600 wide
They now have diffusers added..

35a Tonkin Rd Finniss SA 5255 - Farmlet for Sale #7767221 - realestate.com.au.jpg



Last edited:

Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903
I built these over 15 years ago..
They are made up of 3 separate timber frame sections within the outer frame..
The covering is polyester stretch cloth and each section is filled with 50mm. thick Ultratel (OC75 equivalent) semi rigid fibreglass..
They hang 50mm. away from the wall on French cleats..
The panel are 1600 high x 600 wide
They now have diffusers added..

View attachment 5276

View attachment 5277

These look great too. You guys are putting me to shame.

Are those barrel diffusers something you made or a purchased item?

One of my favorite Diffuser designers has recently taken a hard stance on what is and is not a diffuser. He won't let me call those diffusers anymore. They are re-directors :justdontknow:

The surface of my sidewall reflectors is curved but I didn't make them. They are 2-3" foam cutbwothbthe curve and the surface has a patterned membrane and fabric. Behind them is another 3.5" of insulation that was stuffed down to about 3" or so. The concept of the original panel was to absorb at low and mid frequencies and diffuse or (redirect) at high frequencies where most panels become reflective. The original panel was a vicoustic panel and I removed the fabric and added a binary perforated membrane made of a thin plastic. It didn't absorb enough at upper bass frequencies so I built that frame to deepen it and add more insulation to absorb lower. The change in RT60 was dramatic.

However the quality of my craftsmanship was just ok. It was an experiment and looks like it. I should really redo it so it looks nice.


Prof.

Member
Joined
Apr 15, 2017
Messages
76
Location
South Australia
More
Preamp, Processor or Receiver
Pioneer VSX-919
Universal / Blu-ray / CD Player
Panasonic Blu-ray
Front Speakers
Voight VH-1 Folded Horns
Center Channel Speaker
Voight VH-1 Folded Horn
Surround Speakers
Behringer Monitors
Subwoofers
BFM THTLP Subwoofer
Other Speakers or Equipment
Anti-mode 8033 Sub Equalizer
Video Display Device
Mitsubishi HC4000 projector
Screen
SeymourAV XD AT Screen..
Remote Control
Logitech One
Streaming Subscriptions
Darby Darblett video processor
They are re-directors
Lol!..love the name..
They are actually parabolic diffusers..I made them myself using 3mm MDF..Very simple to make..you just have to get the right curvature and then fit it into a frame..
There is no insulation stuffed into them, just the fibreglass panels behind..
What I noticed when I first used them was that the sound had widened dramatically across the sound stage..and in my new theatre you would swear that the sound was coming from outside!


Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903
I plan to work on diffussers once I have some time with the hope of widening the stage. It already sounds larger than the actual speakers but I'm curious what "true" QRD diffusers would do here. I had planned to build a full Stepped diffusser array but it's too wide to fit onto my wall without building around my lights. The plan right now is an 8" deep QRD diffusser that is roughly 60" wide and 50" tall. Exact dimensions will depend on the final design of course. I really want to try a high prime panel.

I'll probably post a build thread when I do this. I need to get some more clamps and a Brad nailer to make this doable.

Anyway I hope people can keep posting I want to see more. I need to build panels for Axpona and you guys are giving me some ideas.

Maybe Axpona can be my excuse to build the diffussers too!


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,223
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Nice looking stuff guys... all of it's very impressive. I'm going to venture into these waters, despite submitting to the fact that you're probably way more hardcore (and technically inclined) when it comes to absorption/diffusion than I am. But, I'm okay with that. We all have our interests and areas that we prefer to dive deep in. Right?

At any rate, here are the traps and a combo rear wall diffusor/absorption panel I made DIY roughly...wow... about 8 years ago, I think? Matt, your technical side will probably cringe, but I followed general principles for placement :devil: and that's the way it will remain (although...I'm starting to think about building an addition onto my home with a new HT room...so, that could change... but general principles suit me fine :ponder:).

With the help of someone that knows a bit more about this stuff than I do, I created four corner traps that are 54" tall and 24" wide - 8" thick 705 insulation, one corner trap that is 33" X 24" - 8" thick 705 insulation, and one wall mounted trap that is 48"X24" - 4 inch thick 703 insulation... along with this weird binary slat diffusor combo designed to go over a set of windows (yikes!) present in the back of the room.

I know that there are minimalists out there that don't believe in heavy framing for their traps. From a performance standpoint, the less frame the better... and from a cost/time standpoint they are DEFINITELY WAY EASIER TO MAKE! But, I wanted something that was going to look good without sacrificing too much performance... so I spent quite a bit of time and money making frames.

My supplies are fairly straight forward. I found a distributor in Maryland that sold JohnsManville 703 insulation board and Knauf Ecose 705 insulation board. The primary wood I used was Pine #1 (I did use Pine #2 for the base of the frames and for the sides that aren't visible). If you ever plan on using/staining this kind of wood, plan on many MANY many hours of sanding and prepping the wood. Otherwise, your efforts will be for not. For the slat diffuser I purchased furring strips. And, of course, loaded up on tons of other supplies, countersink drill bits, screws, block sanders, stapes, brad nails, wood glue, Sand paper and stain and material (Cloth) and finishing strips. In terms of tools, I relied heavily on: a drill (with a 3 1/2" hole saw bit), a power miter saw, an orbital sander, a jig saw, a Dremel (sanding and wood removal attachments), a pneumatic nail gun (both finish nailer and brad nailer), a staple gun, and a cabinet making Bessy Clamps. Honestly, making these without those core tools would be almost impossible.

For the cloth, I purchased "utility speaker cloth," burlap, and quilting cloth (which is nice because it is relatively thin like muslin BUT comes in lengths of 108" and can be purchased in a multitude of colors).

For the bass trap frames, I opted to drill 3"+ holes into the framing. For those of you interested in doing this... there are several things you should know. First off... you need a solid drill with a ton torque. A cheap cordless drill will suffer and a low amp will flame out and die (believe me, it happened to me)... I suggest a good 9 amp or better drill. Secondly, the drill and the hole saw bit make a nice hole, but they are rough on the wood and the resulting holes require a lot of sanding (note, MDF board might not have this problem. I chose pine, though, because I wasn't comfortable using MDF due to some of its carcinogenic properties... especially when it is airborne with dust particles... also I've read it can smoke and release fumes when heavily drilled). I used various dremel sanding bits and then leaned on a randomly orbiting sander to finish off the smoothing of the outer rim of each hole. Talk about time consuming (and very tedious work!). If you're wondering how many holes I drilled... this board says it all:

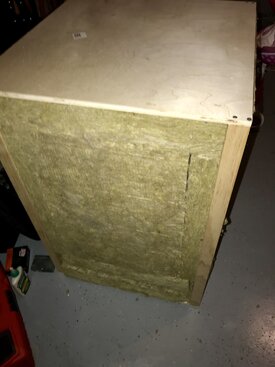

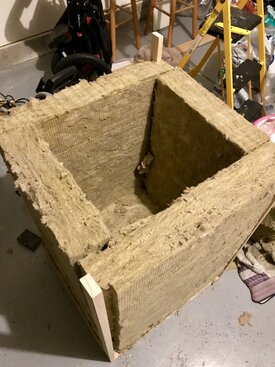

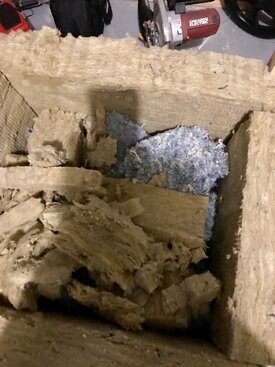

Here's some trap build photos:





And here's some the diffusor/absorption build photos. I made the frame (note, instead of wood screws I used heavier hex-bolts)... then stretched material over furring strips that I brad nailed to the inside of the frame. Once installed, the material was placed in such away that it gave me about 2 1/4" of space on the backside (room for insulation) and about 3/4" space on the front for the slats and finishing touches. On the backside of the material, I installed two 2 1/2" thick furring strips (notched to fit around the firing strips holding the material) horizontally... spaced about 2 feet apart. I don't have a photo of them... but they were installed to help hold the insulation AND to give me a place to nail the slats in the middle. In terms of sequencing for the slats, I used a binary sequence.

The furring strips holding the material and the two larger firing strips running horizontally across the mid section of the frame gave me 4 solid points attach the slats with a brad nailer. Adding 703 insulation in the back (behind the material) was straight forward. It bulges just enough to touch the backside of the slats.

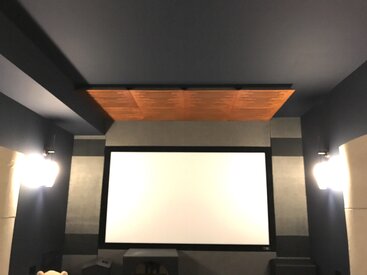

This gives you an idea of what it looks like. This is hanging from the ceiling about 3 1/2 feet behind the primary seating position. I still need to build my AV Showcase, so I'll take some other images soon.



asarose247

New Member
Joined
Nov 29, 2017
Messages
8
The hole saw work - gotta be true love. MDF will kill an expensive hole saw in no time . . lowers the ROI and is really messy
When I built some of my other clouds I used the same partially open sides framing as in my first post. Actually calculated the "added advantage" of more exposed area for broadband panels. seemed like a better ROI per sq. inch for the time opposed to endless drilling.
I used sheer curtain voile as a fiber wrap /trap before a cover warp, which is many cases is just another layer of the same. My ceiling front clouds , ( 3 of 3' x 4', 1 of 18" x 4') total 42 sg. ft are spaced across the 12' dimension with about 5-6 inches between the edges -more exposed area, and also hanging down from the ceiling about 5", so that's the same surface area again.
I have some build pics on a different computer.

The "re-directors" . Now that's an idea I'd like to hear more about.


Matthew J Poes

AV Addict
Thread Starter
Joined
Oct 18, 2017
Messages
1,903
The hole saw work - gotta be true love. MDF will kill an expensive hole saw in no time . . lowers the ROI and is really messy
When I built some of my other clouds I used the same partially open sides framing as in my first post. Actually calculated the "added advantage" of more exposed area for broadband panels. seemed like a better ROI per sq. inch for the time opposed to endless drilling.
I used sheer curtain voile as a fiber wrap /trap before a cover warp, which is many cases is just another layer of the same. My ceiling front clouds , ( 3 of 3' x 4', 1 of 18" x 4') total 42 sg. ft are spaced across the 12' dimension with about 5-6 inches between the edges -more exposed area, and also hanging down from the ceiling about 5", so that's the same surface area again.
I have some build pics on a different computer.

The "re-directors" . Now that's an idea I'd like to hear more about.

Nothing really to the term. It's a way of using more precise language to describe the different kinds of acoustic devices we use.

As we all know sound will do a few things whenever it hits any surface. It will either reflect, absorb, or pass through. That's all it can do. It can and will do all of these things typically and it won't do them evenly at all frequencies.

When sound reflects it can either reflect all of the sound in one direction, the incident angle, or in multiple directions (usually a set of incident angles depending on the precise geometry of the surface it hits). When it "scatters" it can do so in a predicable uniform manner or it can do so in a random manner. Random is diffussion, uniform is scattering. If in fact it largely sends all sound that hits from a particular angle off in a different direction, a function of the incident angle of the sound wave hitting the surface, then we are really redirecting the sound in a different direction than it would have gone with a flat surface. This is done insurance studio clouds all the time.to reflect the ceiling reflection past the soundboard and into the rear diffuser or absorber.

Obvious re-directors would be any kind of flat surface placed at a particular angle to the wall. Less obvious re-directors are pyramids, barrels, waves (to some extent at least), etc. These devices don't provide a lot of scattering and minimal diffussion, they largely redirect the sound away from the listener. A wave may not be a re-director, more of a 1D scattering diffuser if the wave pattern is non-periodic and complex.

http://www.realacoustixllc.com/redirectors
This is the man in question and his re-directors. He has articles on his blog about this.

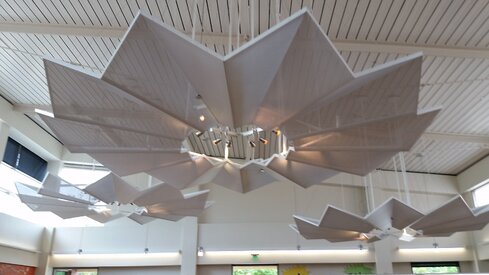

I once helped design a lobby area using a complex surface sculpture to help redirect sound toward wall absorbers. It was a very large fully reflective lobby area of a hotel. The sculpture came from a local artist who designed it with my and the architects input on a computer program to create curving surfaces that would largely help either scatter sound, diffuse sound, or reflect it toward the wall. This idea is very common in large Architectual acoustics. You would be amazed how much science might be behind those funky sculptures in the lobby of a building you enter to make the sound tolerable.
