REW Beta Release REW 5.20RC7 Error Impedance

Antonio Di Motta

New Member
Thread Starter
Joined
Feb 8, 2018
Messages
231
Location
Italy

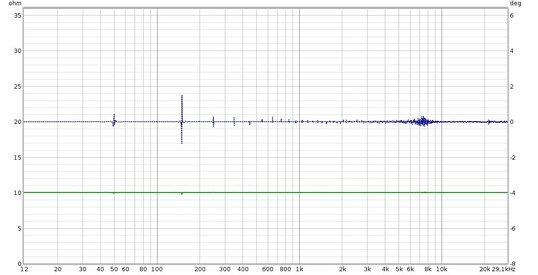

I noticed that the impedance measurement contains a display error, in fact the graph is correct at 10 ohm while the reported value is 3.17ohm, while the EPDR value is correct.

Greetings
Antonio


Attachments

Antonio Di Motta

New Member
Thread Starter
Joined
Feb 8, 2018
Messages
231
Location
Italy
In fact on linux xubuntu the value is correct, but on Raspberry in the lower part of the graph the value shown on the apr 2 curve is 3.17 ohm instead of 10 ohm.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
4,225
Display is normal on Windows 10. I'm not sure how the Linux OS version could make any difference, can you post a screenshot of the whole REW window with the incorrect display? The image you attached only showed the graph and all was normal.


Antonio Di Motta

New Member
Thread Starter
Joined
Feb 8, 2018
Messages
231
Location
Italy

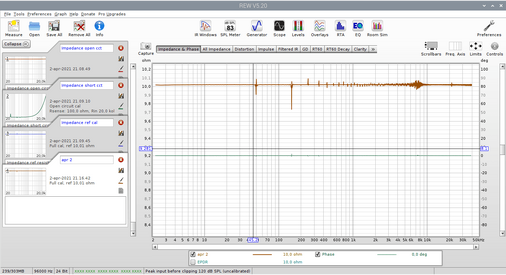

Maybe I was too hasty in reporting the error, I repeated the test on the raspberry but now the error no longer occurs and everything seems to be correct. The displayed value is 10.0 ohm, previously 3.17 ohm was reported despite the graph being correct.
I apologize for the wrong report, next time I will carry out more tests before reporting anomalies.:confused:


Antonio Di Motta

New Member
Thread Starter
Joined
Feb 8, 2018
Messages
231
Location
Italy
Previously the graph was correct but at the bottom the value reported next to apr 2 was 3.17 ohm instead of the correct value 10.0 ohm.
If the problem is repeated I will try to report it better.
Thanks John
