Questions for those that have upgraded their Subwoofers.

welldun

Member
Thread Starter
Joined
Feb 11, 2018
Messages
116
How big of a jump in power or extension did it take for you to notice a difference that made it worth it? Would a jump from 400Watts RMS to 550Watts RMS make a discernable difference in two similarly designed sealed subwoofers?


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,148
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova Carbon X1 and Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
I would not say that it would be that much more noticeable if they are a similar design. The peak power might be more to consider, as that will indicate better how much headroom it would have during the more demanding peaks of sound.


welldun

Member
Thread Starter
Joined
Feb 11, 2018
Messages
116
I would not say that it would be that much more noticeable if they are a similar design. The peak power might be more to consider, as that will indicate better how much headroom it would have during the more demanding peaks of sound.
800watts peak vs 1500watts peak.
I'm going to look for more data on both to do a better comparison. In the end, I would want to see a big enough real world difference (beyond specs), to consider the change, since I would be looking at swapping 4 subs out.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,148
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova Carbon X1 and Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Are you maxed out with what you have now... not getting enough loudness?

Double the power is roughly 3dB increase in SPL... if the same driver is used.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,223
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
What size room do you have and what kind of subs are we talking about?


welldun

Member
Thread Starter
Joined
Feb 11, 2018
Messages
116
What size room do you have and what kind of subs are we talking about?
@Sonnie, I'm not maxed out, just looking to see what a potential "upgrade" from my 4 SVS SB12-NSD to 4 SVS SB2000 Pro could yield. The DSP tech between the two has changed a bit I'm sure, but they are both essentially 12 inch drivers in a roughly 15 inch cube. Since I have 2 rows of seating, I wanted to use 4 subs to smooth out the response and get better seat to seat consistency.

@Todd Anderson, The room is 18'L x 13'W x 7' 4" H. It is the upstairs room in a Cape so the ceiling is somewhat barn shaped but the flat portion (where the height is 7' 4 inches) is around 4' wide and then the ceiling slopes down towards the walls. There is also a dormer window which adds some additional space. The current set up is 7.4.4. with the subs in each corner and time aligned with a MiniDSP 2x4HD. I'm probably looking for "a solution to a problem that doesn't exists!"... but that's what happens with tinkerers! :justdontknow: I figured I'd check to see what the next worthwhile upgrade to the subs would be should I decide to do it.

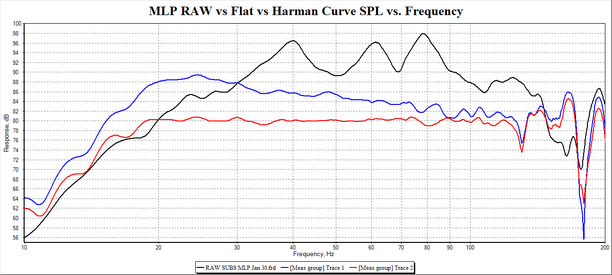

Here is a graph of the sub's FR. It's extends pretty good with the room gain. Red is the result using " as Flat as possible" option in MSO. The blue adds the Harman curve. The black is the raw response of the 4 subs without any EQ or alignment.
4 Subs Before and After.png


MediumRare

Member
Joined
Nov 8, 2019
Messages
66
How big of a jump in power or extension did it take for you to notice a difference that made it worth it? Would a jump from 400Watts RMS to 550Watts RMS make a discernable difference in two similarly designed sealed subwoofers?
Not even slightly. If the blue line is your actual room response you don’t want more than that. What smoothing is that graph? Maybe there is a mode you can hear but it’s not showing? How smooth is the sound when you do a sweep?

Last edited:

Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,148
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova Carbon X1 and Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
@Sonnie, I'm not maxed out, just looking to see what a potential "upgrade" from my 4 SVS SB12-NSD to 4 SVS SB2000 Pro could yield. The DSP tech between the two has changed a bit I'm sure, but they are both essentially 12 inch drivers in a roughly 15 inch cube. Since I have 2 rows of seating, I wanted to use 4 subs to smooth out the response and get better seat to seat consistency.

@Todd Anderson, The room is 18'L x 13'W x 7' 4" H. It is the upstairs room in a Cape so the ceiling is somewhat barn shaped but the flat portion (where the height is 7' 4 inches) is around 4' wide and then the ceiling slopes down towards the walls. There is also a dormer window which adds some additional space. The current set up is 7.4.4. with the subs in each corner and time aligned with a MiniDSP 2x4HD. I'm probably looking for "a solution to a problem that doesn't exists!"... but that's what happens with tinkerers! :justdontknow: I figured I'd check to see what the next worthwhile upgrade to the subs would be should I decide to do it.
Here is a graph of the sub's FR. It's extends pretty good with the room gain. Red is the result using " as Flat as possible" option in MSO. The blue adds the Harman curve. The black is the raw response of the 4 subs without any EQ or alignment.
View attachment 40221
Okay... so now you are speaking a different language. When you start talking about 4 of these subs vs just one... and going from the NSD to the Pro... you should notice a difference. If the subs are equidistant to the main listening position, you should notice an approximate 6dB in extra headroom, as you get a 3dB gain with each doubling of dynamic power. This makes the job of the subs more effortless. You also gain a deeper response, as the NSD is only rated to 23Hz, while the Pro is 19Hz. I suspect the distortion limits are improved with the newer Pro, and you get the DSP function to help with filtering and timing if needed. Upgraditis solved. :whistling:

SB12-NSD
40307


SB2000 Pro
40308


welldun

Member
Thread Starter
Joined
Feb 11, 2018
Messages
116
Not even slightly. If the blue line is your actual room response you don’t want more than that. What smoothing is that graph? Maybe there is a mode you can hear but it’s not showing? How smooth is the sound when you do a sweep?
  • To clarify the graphs further, none of the lines have any smoothing. I have 2 rows of seating with a total of 5 seats. I wanted to get the bass in all of the seats to be as close to bass at the main listening position. For this I needed multiple subs. There are 4 subs in the room, each one in a corner.
  • The Black graph is the RAW response of the subs, meaning that they are not time aligned nor EQ'd, they are simply all playing at the same output level and the measurement was taken at the main listening position. The response at the other two seats in the fromnt is similar but much worse in the two seats in the second row.
  • I used a program called Multi Subwoofer Optimizer (MSO) which uses multiple measurements taken with REW to calculate the best EQ and Delay settings necessary to get the flattest response as well as the most consistency between all of the seats.
  • The red graph is the first result of MSO set to calculate the flattest response, other other 4 seats are pretty much the same +/- 3-4dB, so now all seats hear the same bass response.
  • The Blue graph is that same MSO result but now I had it add 10dB rise from 200Hz to 20Hz.


welldun

Member
Thread Starter
Joined
Feb 11, 2018
Messages
116
Okay... so now you are speaking a different language. When you start talking about 4 of these subs vs just one... and going from the NSD to the Pro... you should notice a difference. If the subs are equidistant to the main listening position, you should notice an approximate 6dB in extra headroom, as you get a 3dB gain with each doubling of dynamic power. This makes the job of the subs more effortless. You also gain a deeper response, as the NSD is only rated to 23Hz, while the Pro is 19Hz. I suspect the distortion limits are improved with the newer Pro, and you get the DSP function to help with filtering and timing if needed. Upgraditis solved. :whistling:

SB12-NSD
View attachment 40307

SB2000 Pro
View attachment 40308
:greengrin: I bit the bullet! I'm now the proud owner of 4 SB-2000 Pro subs, which replaced my 4 SB12-NSD subs. Initial test in the room show the subs going down to about 9Hz with the room gain. now it's time to get to tweaking these to tie it all in.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,148
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova Carbon X1 and Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Congratulations.... well done! Can't wait to hear your thoughts after you've got them all setup and tuned and have time to listen to them.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,223
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Nice buy! I think you made the right move. 4 subs = an incredible experience!
