OSX El Cap UMIK-1 setup with REW beta

SeanP

Registered
Thread Starter
Joined
Jul 31, 2017
Messages
7
More
Preamp, Processor or Receiver
AVM60
Main Amp
Odyssey Stratos Stereo
Additional Amp
MM9000 MM7055
Universal / Blu-ray / CD Player
203 oppo
Front Speakers
Revel F52
Center Channel Speaker
Revel F32
Surround Speakers
Revel M106
Surround Back Speakers
Revel M106
Front Height Speakers
Revel C763L
Rear Height Speakers
Revel C763L
Subwoofers
LMF-1 EX, VTF-3 MK5
Video Display Device
LG OLED65G6P
Remote Control
Logitech Elite
Streaming Subscriptions
mede8er med1000x3d

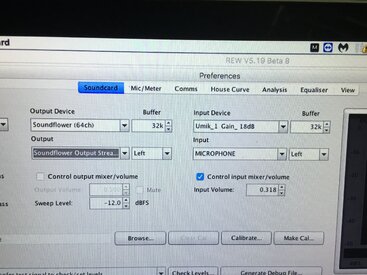

I have followed the guide and have even found the new soundflower 2.0b2.dmg for El Cap but in setting up Rew preferences the guide looks different when selecting the i puts and outputs. Is there an updated guide? And also the Umik-1 guide on the MIDIDSP site show selecting the soundflower app an assigning the HDMI channel and selecting the channel layout but the new soundflower 2.0b2.dmg just installs and no longer has a flower in the menu bar to select set the hdmi and channels. I’ve attached a pic of the preferences panel any help would be appreciated.
Thanks
Sean


Attachments

  • image.jpg
    1.4 MB · Views: 18
Last edited:

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,279
Soundflower is not required, select the HDMI output directly. There is more in the help covering how to set up for multichannel measurement on OS X.


SeanP

Registered
Thread Starter
Joined
Jul 31, 2017
Messages
7
More
Preamp, Processor or Receiver
AVM60
Main Amp
Odyssey Stratos Stereo
Additional Amp
MM9000 MM7055
Universal / Blu-ray / CD Player
203 oppo
Front Speakers
Revel F52
Center Channel Speaker
Revel F32
Surround Speakers
Revel M106
Surround Back Speakers
Revel M106
Front Height Speakers
Revel C763L
Rear Height Speakers
Revel C763L
Subwoofers
LMF-1 EX, VTF-3 MK5
Video Display Device
LG OLED65G6P
Remote Control
Logitech Elite
Streaming Subscriptions
mede8er med1000x3d
Soundflower is not required, select the HDMI output directly. There is more in the help covering how to set up for multichannel measurement on OS X.
Thanks John so I should just uninstall soundflower and make sure I have the latest Java?


SeanP

Registered
Thread Starter
Joined
Jul 31, 2017
Messages
7
More
Preamp, Processor or Receiver
AVM60
Main Amp
Odyssey Stratos Stereo
Additional Amp
MM9000 MM7055
Universal / Blu-ray / CD Player
203 oppo
Front Speakers
Revel F52
Center Channel Speaker
Revel F32
Surround Speakers
Revel M106
Surround Back Speakers
Revel M106
Front Height Speakers
Revel C763L
Rear Height Speakers
Revel C763L
Subwoofers
LMF-1 EX, VTF-3 MK5
Video Display Device
LG OLED65G6P
Remote Control
Logitech Elite
Streaming Subscriptions
mede8er med1000x3d
Also I’m running bootcamp on the same machine with Win7 to run ARC for my AVM60 and would like to set up REW on the windows side. Is ASIO4ALLv2 still the driver?


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,279
No need for soundflower, REW for OS X has its own Java Virtual Machine so don't need to install Java either. Not sure whether ASIO4All has had an update but it is still widely used.


SeanP

Registered
Thread Starter
Joined
Jul 31, 2017
Messages
7
More
Preamp, Processor or Receiver
AVM60
Main Amp
Odyssey Stratos Stereo
Additional Amp
MM9000 MM7055
Universal / Blu-ray / CD Player
203 oppo
Front Speakers
Revel F52
Center Channel Speaker
Revel F32
Surround Speakers
Revel M106
Surround Back Speakers
Revel M106
Front Height Speakers
Revel C763L
Rear Height Speakers
Revel C763L
Subwoofers
LMF-1 EX, VTF-3 MK5
Video Display Device
LG OLED65G6P
Remote Control
Logitech Elite
Streaming Subscriptions
mede8er med1000x3d
Thanks John I’ve got a lightning - hdmi cable ordered so won’t be able to select to select the channels till I get it, but everything looks good for now!


SeanP

Registered
Thread Starter
Joined
Jul 31, 2017
Messages
7
More
Preamp, Processor or Receiver
AVM60
Main Amp
Odyssey Stratos Stereo
Additional Amp
MM9000 MM7055
Universal / Blu-ray / CD Player
203 oppo
Front Speakers
Revel F52
Center Channel Speaker
Revel F32
Surround Speakers
Revel M106
Surround Back Speakers
Revel M106
Front Height Speakers
Revel C763L
Rear Height Speakers
Revel C763L
Subwoofers
LMF-1 EX, VTF-3 MK5
Video Display Device
LG OLED65G6P
Remote Control
Logitech Elite
Streaming Subscriptions
mede8er med1000x3d
Thanks John both are working now. Windows I had to select the asio4all panel and select the hdmi output.
