Onkyo RZ50 Owners thread

Jay Mammoth

Member
Thread Starter
Joined
Jul 1, 2021
Messages
11
More
Preamp, Processor or Receiver
Denon 4300
Main Amp
Outlaw 5000
Universal / Blu-ray / CD Player
Oppo 4K
Front Speakers
Klipsch RP 60
Center Channel Speaker
Klipsch RC-64 III
Surround Speakers
Klipsch RP 250
Front Height Speakers
SVS Prime elevation
Rear Height Speakers
SVSPrime Elevation
Subwoofers
SVS PB 1000- SVS 2000 Pro
Video Display Device
LG 77’ C1
So far so awesome with the RZ50. Really impressed with the sound I hooked it up while dinner was cooking and did a quick Dirac set up (3 positions) with the included mic and the sound was a noticeable improvement over the Denon 4300 i had. On the Denon i would listen at around -12-13 on the RZ50 -18 sounds amazing.
Dialog sounds clearer and better separation, especially the top atmos speakers, me and the kid watched the Spiderman 2 4K Disc. One problem im having is i cant get airplay to work, my iPhone and iPad can see the Onkyo on the network but then says unable to connect.
44718
44719
44720
44721

  • Like
Reactions: dlaloum, LeKnobber, kovacsgergely83 and 4 others

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Diggin' the setup there!

I'm looking forward to getting my hands on one of these. Supposedly that will happen soon, but supply shortages have made sourcing review gear tough. Not enough to go around.

Weird about Airplay... is your iOS firmware up to date?

Thoughts on bass management?

  • Like
Reactions: Jay Mammoth

Jay Mammoth

Member
Thread Starter
Joined
Jul 1, 2021
Messages
11
More
Preamp, Processor or Receiver
Denon 4300
Main Amp
Outlaw 5000
Universal / Blu-ray / CD Player
Oppo 4K
Front Speakers
Klipsch RP 60
Center Channel Speaker
Klipsch RC-64 III
Surround Speakers
Klipsch RP 250
Front Height Speakers
SVS Prime elevation
Rear Height Speakers
SVSPrime Elevation
Subwoofers
SVS PB 1000- SVS 2000 Pro
Video Display Device
LG 77’ C1
Bass definitely seems tighter after Dirac set up then it did with my previous denon with Audessey.

  • Like
Reactions: dlaloum, LeKnobber, kovacsgergely83 and 1 other person

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Bass definitely seems tighter after Dirac set up then it did with my previous denon with Audessey.

That's interesting. I'd love to get some measurements and see what's happening. Audyssey XT32 is fairly competent at bass control, good news that you didn't see a drop off in performance.

Sounds like the amp section is healthy also, although some of that 5dB difference could be accounted for by how the speakers are channel leveled in setup. Still, though, positive signs!

  • Like
Reactions: Jay Mammoth

tombs14

Member
Joined
Jun 25, 2021
Messages
12
Could you help me understand the takeaway on Jay's picture showing the Crossover settings? To me it doesn't specifically confirm each paired channel can have independent crossover freqs? Unless I'm missing something. Thank you!


Jay Mammoth

Member
Thread Starter
Joined
Jul 1, 2021
Messages
11
More
Preamp, Processor or Receiver
Denon 4300
Main Amp
Outlaw 5000
Universal / Blu-ray / CD Player
Oppo 4K
Front Speakers
Klipsch RP 60
Center Channel Speaker
Klipsch RC-64 III
Surround Speakers
Klipsch RP 250
Front Height Speakers
SVS Prime elevation
Rear Height Speakers
SVSPrime Elevation
Subwoofers
SVS PB 1000- SVS 2000 Pro
Video Display Device
LG 77’ C1
Yeah as far as i know you can only change crossovers per pair, unless there’s a menu I’m missing. Also would like to know how to use Dirac on my laptop with the RZ50 so i can use my umik to measure for room correction.


tombs14

Member
Joined
Jun 25, 2021
Messages
12
Yeah as far as i know you can only change crossovers per pair, unless there’s a menu I’m missing. Also would like to know how to use Dirac on my laptop with the RZ50 so i can use my umik to measure for room correction.
But you can set your Fronts different than your Center and Sides, Heights, etc, yes?

  • Like
Reactions: Jay Mammoth

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Yeah as far as i know you can only change crossovers per pair, unless there’s a menu I’m missing. Also would like to know how to use Dirac on my laptop with the RZ50 so i can use my umik to measure for room correction.

Dirac is easy. You need to register at Dirac, the. Download the app to you PC or Mac.
Make sure you have your Umik correction file from Mini DSP and you’re good to go. Your computer will capture and send measurements to Dirac… once it’s done, you’ll upload the file from your computer to the RZ50.

I believe the PC/Mac approach allows you to add up to 13 measurements, as opposed to nine with the mobile app.

For reference on how to use the computer app, Bryston has a great breakdown in its BRSP4 user manual:

http://support.bryston.com/downloads/SP4/SP4 Owner's Manual 34R1-2 web.pdf

  • Like
Reactions: Jay Mammoth and GERONIMO.USMC

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
But you can set your Fronts different than your Center and Sides, Heights, etc, yes?
Certainly looks like you have independent control over groupings of channels… you should definitely have access to that control through Dirac Live in your computer


Jay Mammoth

Member
Thread Starter
Joined
Jul 1, 2021
Messages
11
More
Preamp, Processor or Receiver
Denon 4300
Main Amp
Outlaw 5000
Universal / Blu-ray / CD Player
Oppo 4K
Front Speakers
Klipsch RP 60
Center Channel Speaker
Klipsch RC-64 III
Surround Speakers
Klipsch RP 250
Front Height Speakers
SVS Prime elevation
Rear Height Speakers
SVSPrime Elevation
Subwoofers
SVS PB 1000- SVS 2000 Pro
Video Display Device
LG 77’ C1
But you can set your Fronts different than your Center and Sides, Heights, etc, yes?
Oh yeah, I actually just changed my surrounds to 90 and my atmos to 100.

  • Like
Reactions: tombs14

Jay Mammoth

Member
Thread Starter
Joined
Jul 1, 2021
Messages
11
More
Preamp, Processor or Receiver
Denon 4300
Main Amp
Outlaw 5000
Universal / Blu-ray / CD Player
Oppo 4K
Front Speakers
Klipsch RP 60
Center Channel Speaker
Klipsch RC-64 III
Surround Speakers
Klipsch RP 250
Front Height Speakers
SVS Prime elevation
Rear Height Speakers
SVSPrime Elevation
Subwoofers
SVS PB 1000- SVS 2000 Pro
Video Display Device
LG 77’ C1
Dirac is easy. You need to register at Dirac, the. Download the app to you PC or Mac.
Make sure you have your Umik correction file from Mini DSP and you’re good to go. Your computer will capture and send measurements to Dirac… once it’s done, you’ll upload the file from your computer to the RZ50.

I believe the PC/Mac approach allows you to add up to 13 measurements, as opposed to nine with the mobile app.

For reference on how to use the computer app, Bryston has a great breakdown in its BRSP4 user manual:

http://support.bryston.com/downloads/SP4/SP4 Owner's Manual 34R1-2 web.pdf

Thanks for answering and being civil. A few Karen’s on AVS get upset if people ask a question lol


symphara

Member
Joined
Mar 19, 2021
Messages
24
Dirac is easy. You need to register at Dirac, the. Download the app to you PC or Mac.
Make sure you have your Umik correction file from Mini DSP and you’re good to go. Your computer will capture and send measurements to Dirac… once it’s done, you’ll upload the file from your computer to the RZ50.

I believe the PC/Mac approach allows you to add up to 13 measurements, as opposed to nine with the mobile app.

For reference on how to use the computer app, Bryston has a great breakdown in its BRSP4 user manual:

http://support.bryston.com/downloads/SP4/SP4 Owner's Manual 34R1-2 web.pdf
This manual suggests to me that you need to measure each speaker in all the mike positions before moving on to the next speaker. Is this so? Seems cumbersome.

Normally measurements are done for all speakers in a given mike position. At least that's the case for Audyssey, ARC, YPAO.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
It’s all speakers per microphone position.

  • Like
Reactions: Sonnyhad3, theetjuh and symphara

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Thanks for answering and being civil. A few Karen’s on AVS get upset if people ask a question lol
Of course. We're all about sharing information and helping others with open and friendly conversation. :T It's great to see enthusiasts like yourself hanging here!

  • Like
Reactions: Sonnyhad3, LCSeminole, golfbravo and 1 other person

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
This manual suggests to me that you need to measure each speaker in all the mike positions before moving on to the next speaker. Is this so? Seems cumbersome.

Normally measurements are done for all speakers in a given mike position. At least that's the case for Audyssey, ARC, YPAO.

During a recent review of StormAudio's ISP 32 MK2 processor, I spent quite a few hours with their in-house acoustics expert working with Dirac. He stressed taking a variety of measurements across my seating position, varying height and proximity to the speakers... He told me they find the best results when most measurements are head level and above. They analyzed the dimensions/layout of my room before coming up with measurement position/height recommendations... I'd be more than happy to share them with you guys if you're interested.

  • Like
Reactions: LCSeminole, greendog2017, kovacsgergely83 and 2 others

Shepherd

Member
Joined
Jun 2, 2021
Messages
20
More
Preamp, Processor or Receiver
Onkyo TX-SR605
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Canton Floor standing
Center Channel Speaker
Canton
Surround Speakers
Sonance ceiling
Front Height Speakers
Sonance ceiling
Subwoofers
Bic 12"
Screen
Sony X900H 65"
I'm still waiting for my RZ50 order to ship from AvScience. I just purchased a umik 1 while I wait.
Should the mic stand be placed behind the couch with mic boom extended out forward to listening position? I've seen some pics of new RZ50 owners using a mic stand between the mic and speakers and wondered if sound would bounce/reflect off the stand interfering with measurements.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
I doubt it would have much of an effect - at least that you'll hear. My mic stand doesn't have an arm that's long enough to remain solely behind the seating, but come to think of it, even it did the stand will still "technically" reflect sound, right? c


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Here's a diagram of where Storm's audio expert had me take measurements. This is essentially a top-down view of the seating area with the front of the seats on the bottom edge. First number is the measurement number (aka the order measurements are taken in). Each dot represents microphone position in relation to the seat, and the last two numbers you see are the height of the tip of the microphone. Your UMIK microphone should be at 90 degrees (pointed up) with the 90-degree correction file loaded.

You'll notice the measurements are somewhat elevated... this method is what they've found sounds best in various custom installs.

If you wouldn't mind leaving this image here and directing anyone interested in using it to avnirvana, would be appreciated! :T Let me know if you have any questions!

Screen Shot 2021 05 03 at 111929 AM

  • Like
Reactions: LeKnobber, CHFels, greendog2017 and 3 others

theetjuh

Member
Joined
Jul 6, 2021
Messages
27
More
Preamp, Processor or Receiver
Onkyo TX-RZ840
Universal / Blu-ray / CD Player
Sony UBP-X800
Front Speakers
Q Acoustics 2050i
Center Channel Speaker
Q Acoustics 2000Ci
Surround Speakers
Q Acoustics 2020i
Front Height Speakers
Q Acoustics QI65C
Rear Height Speakers
Q Acoustics QI65C
Subwoofers
BK Elec XXLS400-DF
Video Display Device
LG 77G1
Remote Control
Logitech Harmony Elite
Streaming Equipment
Vero 4K (OSMC), Nvidia Shield TV Pro (2019)
Other Equipment
Sony PlayStation 5
Nice, thanks for that info Todd :T

Are those 5 squares the seats with the backrest at the top?
If so, then the measuring points are quite far separated, more then I’m used to with AccuEQ or Audyssey.

  • Like
Reactions: Todd Anderson

Shepherd

Member
Joined
Jun 2, 2021
Messages
20
More
Preamp, Processor or Receiver
Onkyo TX-SR605
Universal / Blu-ray / CD Player
Sony UBP-X700
Front Speakers
Canton Floor standing
Center Channel Speaker
Canton
Surround Speakers
Sonance ceiling
Front Height Speakers
Sonance ceiling
Subwoofers
Bic 12"
Screen
Sony X900H 65"
I guess with all the wave guide, room refraction, room dressing arguments one would think the boom arm and stand would do the same.

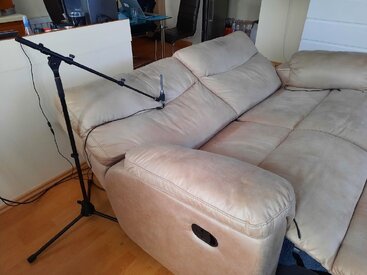

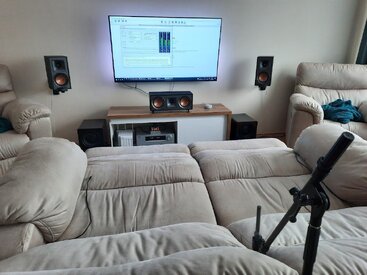

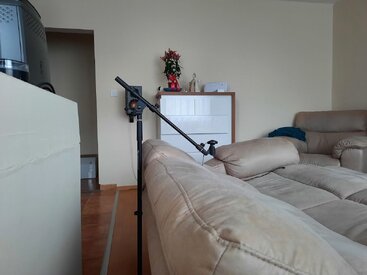

I was planning on buying a cheap $20 stand with a boom arm for the umik1 but if the small stand sitting on some boxes on the couch does just as good then I won't bother.

44775

  • Like
Reactions: kovacsgergely83 and Todd Anderson

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
You might very well be right... it's impossible to completely remove any potential disturbances. If you have the means of minimizing them, though, why not? Perhaps @John Mulcahy has an opinion about this...

  • Like
Reactions: Shepherd

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Nice, thanks for that info Todd :T

Are those 5 squares the seats with the backrest at the top?
If so, then the measuring points are quite far separated, more then I’m used to with AccuEQ or Audyssey.

Yes, they're backrests. Obviously, you can expand and contract these placements across your seating area depending on how tight you want the correction to be around your primary seat. If, for example, you're the only one watching movies, I'd condense it down to just one seat.

  • Like
Reactions: theetjuh
Joined
Jan 28, 2021
Messages
22
I guess with all the wave guide, room refraction, room dressing arguments one would think the boom arm and stand would do the same.
I was planning on buying a cheap $20 stand with a boom arm for the umik1 but if the small stand sitting on some boxes on the couch does just as good then I won't bother.

View attachment 44775

I'd definitely buy a cheap, but well adjustable mic stand, helped me a lot with measuing my current system (RZ730 + miniDSP 2x4) in varios positions.

20210203 110932

20210203 114156

20210203 134743

  • Like
Reactions: DragonRM, theetjuh, Todd Anderson and 1 other person

Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
8,165
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
That looks very similar to what I have... my issue is the extension arm isn't long enough to reach the front edge of my seats. what I need is an arm that's capable of extending.


theetjuh

Member
Joined
Jul 6, 2021
Messages
27
More
Preamp, Processor or Receiver
Onkyo TX-RZ840
Universal / Blu-ray / CD Player
Sony UBP-X800
Front Speakers
Q Acoustics 2050i
Center Channel Speaker
Q Acoustics 2000Ci
Surround Speakers
Q Acoustics 2020i
Front Height Speakers
Q Acoustics QI65C
Rear Height Speakers
Q Acoustics QI65C
Subwoofers
BK Elec XXLS400-DF
Video Display Device
LG 77G1
Remote Control
Logitech Harmony Elite
Streaming Equipment
Vero 4K (OSMC), Nvidia Shield TV Pro (2019)
Other Equipment
Sony PlayStation 5
Top Bottom
