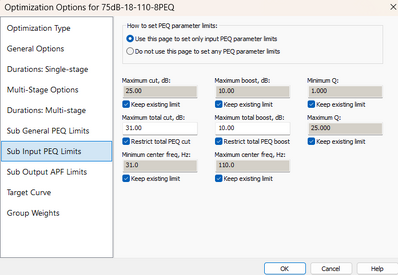

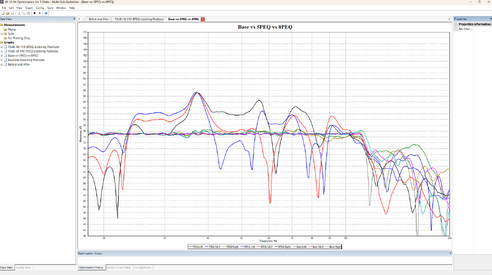

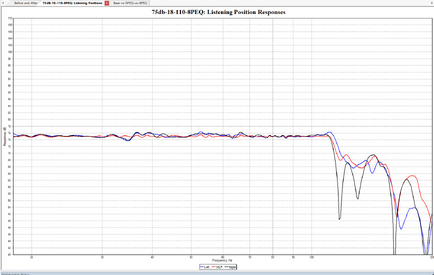

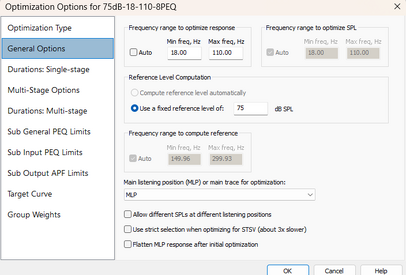

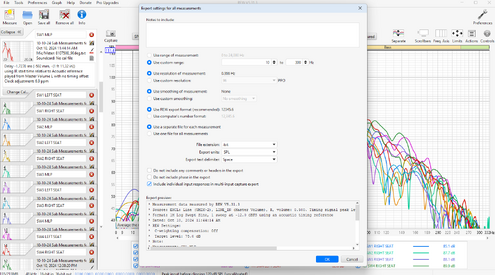

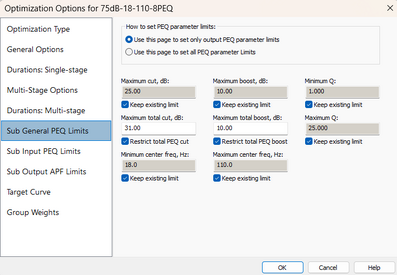

MSO fist time user here. After reading and watching a few MSO video tutorials I decided to do my first MSO optimization project for 3 seats, 4 subs this weekend. I'm not so sure about my optimization option that I used specially the Max Boost and Max Total boost parameters. But all in all the optimization graph looks pretty good to me. My goal is to create a 10dB gradual rise house curve, 100Hz rise start, 30Hz rise end, and 5.7dB/Octave rise slope. So my question to the experienced MSO users is this, Do I need to do new raw measurements, sweep at 95dB SPL level as recommended by AndyC56 to achieve my 10dB target house curve? The sweeps for the attached optimization graphs were done at 80dB SPL.


Attachments

  • Screenshot 2024-11-04 115316.png
    Screenshot 2024-11-04 115316.png
    461.4 KB · Views: 25
  • Screenshot 2024-11-04 115717.png
    Screenshot 2024-11-04 115717.png
    51.8 KB · Views: 19
  • Screenshot 2024-11-04 115728.png
    Screenshot 2024-11-04 115728.png
    51.6 KB · Views: 17
  • Screenshot 2024-11-04 115739.png
    Screenshot 2024-11-04 115739.png
    51.6 KB · Views: 14
  • Screenshot 2024-11-04 120237.png
    Screenshot 2024-11-04 120237.png
    331.2 KB · Views: 15
  • Screenshot 2024-11-04 122257.png
    Screenshot 2024-11-04 122257.png
    328 KB · Views: 15
  • Screenshot 2024-11-04 122438.png
    Screenshot 2024-11-04 122438.png
    30.7 KB · Views: 15
  • Screenshot 2024-11-04 122447.png
    Screenshot 2024-11-04 122447.png
    30.6 KB · Views: 13
  • Screenshot 2024-11-04 122504.png
    Screenshot 2024-11-04 122504.png
    35.9 KB · Views: 17
Last edited:

JStewart

Senior AV Addict
Supporter
Thread Starter
Joined
Dec 5, 2017
Posts
2,388
Location
Central FL
MSO fist time user here. After reading and watching a few MSO video tutorials I decided to do my first MSO optimization project for 3 seats, 4 subs this weekend. I'm not so sure about my optimization option that I used specially the Max Boost and Max Total boost parameters. But all in all the optimization graph looks pretty good to me. My goal is to create a 10dB gradual rise house curve, 100Hz rise start, 30Hz rise end, and 5.7dB/Octave rise slope. So my question to the experienced MSO users is this, Do I need to do new raw measurements, sweep at 95dB SPL level as recommended by AndyC56 to achieve my 10dB target house curve? The sweeps for the attached optimization graphs were done at 80dB SPL.
Been a while since I used MSO. It was V1. Andy‘s documentation is like a masters class on subwoofer theory and the V2 additions are significant.

Anyway, to your question on remeasuring, Andy’s documentation suggests 85dB and his reasoning can be found on this page under measurement level too high:

Conversely, if the measurement level was too low and noise was interfering then the predicted response and actual response would show differences. Since yours match I’d say you’re good to go.


mmares056

Member
Supporter
Joined
Apr 23, 2024
Posts
17
More
Preamp, Processor or Receiver
Denon X3600H
Main Amp
OSD Nero XA5180
Additional Amp
Emotiva BasX A5
DAC
Wiim Ultra
Universal / Blu-ray / CD Player
Sony UBP-X800M2
Streaming Equipment
Nvidia Shield TV Pro
Streaming Subscriptions
Netflix, Prime Video, Disney+, Hulu, ESPN+
Front Speakers
RSL CG25
Center Channel Speaker
SVS Ultra
Surround Speakers
RSL CG5
Front Height Speakers
RSL CG3
Subwoofers
RSL Speedwoofer 10S
Video Display Device
85Inch Samsung 4K TV

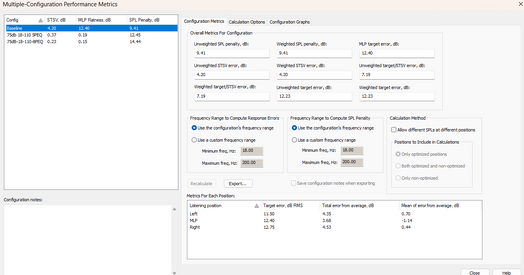

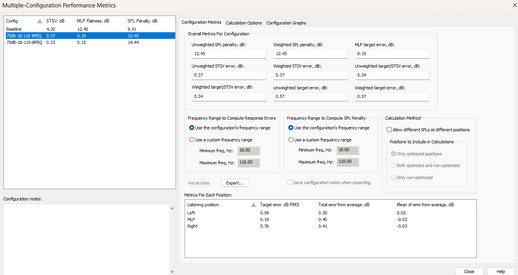

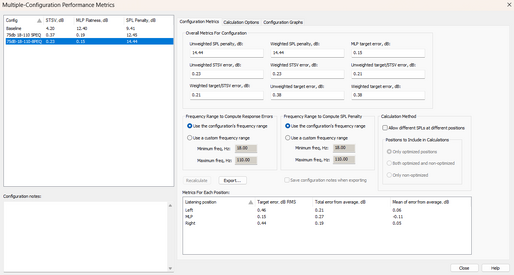

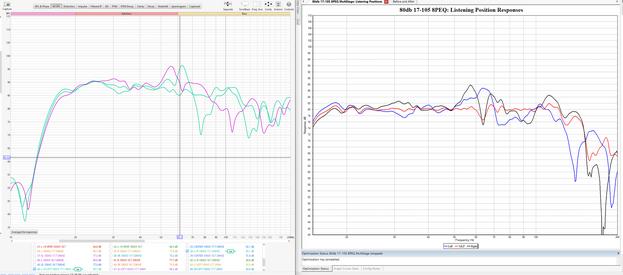

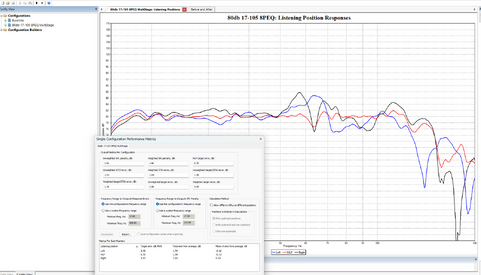

I ran a new optimization using the new Mult-Stage option and this is what I got. As you can see based on the results my seating position is not optimal but this is the best I can do in my room as far as room treatments, seating position and speaker placement go. I think these results are a good compromise for me since I'm the only one that cares about home theater sound in my home. The double graph is a comparison of my seat to seat variation latest MSO optimization vs current REW spatial averaged measurements at the MLP(6 measurements, between 6-8 inches from each other. Comments welcome.


Attachments

  • Screenshot 2024-11-11 184553.png
    Screenshot 2024-11-11 184553.png
    436.5 KB · Views: 11
  • Screenshot 2024-11-11 184725.png
    Screenshot 2024-11-11 184725.png
    101.1 KB · Views: 12
  • Screenshot 2024-11-11 190745.png
    Screenshot 2024-11-11 190745.png
    435.7 KB · Views: 12
Last edited:

JStewart

Senior AV Addict
Supporter
Thread Starter
Joined
Dec 5, 2017
Posts
2,388
Location
Central FL
I think these results are a good compromise for me since I'm the only one that cares about home theater sound in my home
I think this may be a universal truth for our hobby. :)

MSO is calibrated to a flat response. You can use a house curve in MSO to get a bass rise of your choosing. I suspect you know this already.

I haven’t used MSO v2 as I’ve said, but I think the little bit of difference between the seats is a good trade-off of the multi-stage option. Especially in light of universal truth above. I’d rather keep some headroom than be perfectly matching everywhere.

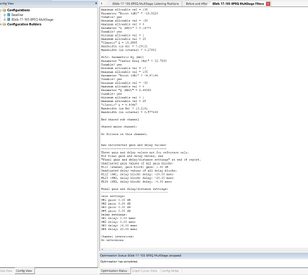

I see subs 3&4 have 16 and 20msec delays applied. Just curious what the real distances are to MLP vs subs 1&2.

How does it sound?


mmares056

Member
Supporter
Joined
Apr 23, 2024
Posts
17
More
Preamp, Processor or Receiver
Denon X3600H
Main Amp
OSD Nero XA5180
Additional Amp
Emotiva BasX A5
DAC
Wiim Ultra
Universal / Blu-ray / CD Player
Sony UBP-X800M2
Streaming Equipment
Nvidia Shield TV Pro
Streaming Subscriptions
Netflix, Prime Video, Disney+, Hulu, ESPN+
Front Speakers
RSL CG25
Center Channel Speaker
SVS Ultra
Surround Speakers
RSL CG5
Front Height Speakers
RSL CG3
Subwoofers
RSL Speedwoofer 10S
Video Display Device
85Inch Samsung 4K TV
I think this may be a universal truth for our hobby. :)

MSO is calibrated to a flat response. You can use a house curve in MSO to get a bass rise of your choosing. I suspect you know this already.

I haven’t used MSO v2 as I’ve said, but I think the little bit of difference between the seats is a good trade-off of the multi-stage option. Especially in light of universal truth above. I’d rather keep some headroom than be perfectly matching everywhere.

I see subs 3&4 have 16 and 20msec delays applied. Just curious what the real distances are to MLP vs subs 1&2.

How does it sound?
Real distance of subs 3&4 from the MLP(Center seat) is 6ft and Subs 1&2 are 13ft. Sounds pretty awesome!
