Motu 2 Audio Interface will not use frd calibration files

Sliderule

Member
Thread Starter
Joined
Apr 1, 2024
Messages
19
Location
South Carolina
More
Front Speakers
Soundlab Majestic 745's

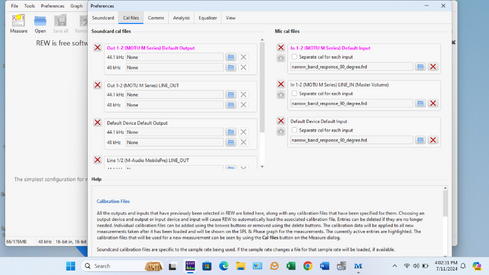

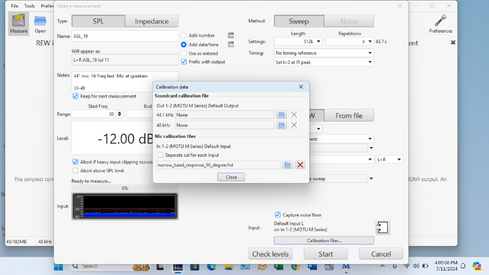

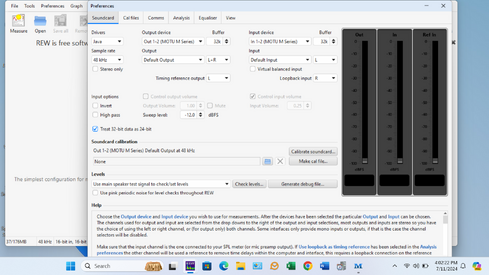

White making frequency response measurements of my speakers I noticed that the high frequency rolloff was excessive. It was 16-25dB down from 1oKHz to 20KHz. The calibration frd was working fine with my ancient Mobile Pre audio interface (which finally died) and REW which I confirmed by loading some older rew files. I have confirmed that the calibration file is loaded by clicking the tab on the measure page. I have added the calibration file to every input. The Motu 2 is connected to usb-c port. I checked the devices in device manager and all looked fine. I have attached some screen shots of the REW preferences screens.


Attachments

  • Screenshot (5).png
    Screenshot (5).png
    615 KB · Views: 14
  • Screenshot (6).png
    Screenshot (6).png
    600.2 KB · Views: 15
  • Screenshot (7).png
    Screenshot (7).png
    459 KB · Views: 11

ManCaveAudio

Moderator
Staff member
Joined
Mar 12, 2023
Messages
75
Hi, I am planning to buy Motu M6. I have one doubt in mind. Can I use this interface for multichannel measurement? Can I use this with 7.1 measurements with Excel drive in REW?
