Imported Impedance Measurements produces giant value for Rss

3ll3d00d

New Member
Thread Starter
Joined
Jun 4, 2017
Messages
37
I'm attempting to use REW to calculate inductance parameters to feed hornresp (as per the feature added in http://www.diyaudio.com/forums/subwoofers/119854-hornresp-post5404994.html), to do so I'm importing some data captured by DATS. The calculated TS params appear to be in the same region as those produced by DATS but I end up with a gigantic value for Rss in the blocked impedance params.

Any ideas what is wrong here?

I've attached the z files for reference.



Attachments

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,436
That just means there is next to no Rss component to the response. More concerning is the very poor fit to the peak for the added mass measurement, which needs a very different ΛES value to the free air measurement. The added mass is pretty high, might get better results from a smaller mass.


3ll3d00d

New Member
Thread Starter
Joined
Jun 4, 2017
Messages
37
Poor fit in what sense? Or put another way, what constitutes a good fit?

The mass used was that required to achieve approx 25% reduction in Fs.

What does it mean to have " next to no" Rss component? Is it unusual or a sign of something wrong in some way?


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,436

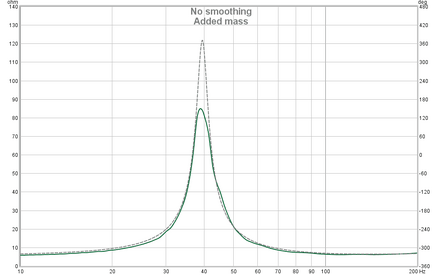

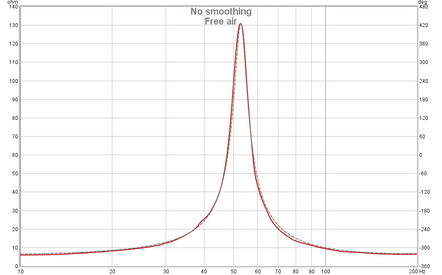

A poor fit in the sense that the model is far from the measurement for the added mass:
freeair.png addedmass.png

The added mass measurement peak is also misshapen, which when I have seen it previously has been due to too much added mass. With curve fitting systems (as opposed to manual calculations) it isn't necessary to provoke such a large shift in Fs, a much smaller shift is perfectly adequate.

The very high Rss value simply means the drive doesn't exhibit the behaviour that term models, which relates to the effect of shorting rings or similar structures. It isn't unusual and isn't a sign of anything being wrong.


3ll3d00d

New Member
Thread Starter
Joined
Jun 4, 2017
Messages
37
Ok thanks, is there any particular minimum %age shift in Fs you would recommend as adequate?

Re RSS, do you mean it's absence indicates an absence of shorting rings (or similar) or that you would expect the value to be present in the absence of such structures?


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
5,436
10% shift should be plenty. Rss is part of the model so it always has to have a value. It is in parallel with 2 other impedance elements, so when it ends up with a very large value that means it is being driven (by the fit optimisation) to a point where it has essentially no effect. The plots compare to the total impedance ZT, though in that region the main contributor is the motional impedance sitting on top of the blocked impedance.
