Help with updating audio interface.

Sliderule

New Member
Thread Starter
Joined
Apr 1, 2024
Messages
5
I am looking to replace my current audio interface.
I currently have a Mobile Pre with 14 year old drivers. I only use the interface for speaker measurements. I have a Beringer EMM8000 mic with calibration information and a B&K 4230 calibrator.
OS is Win11. Laptop is Acer Swift3 AMD Ryzen 5000 with USB-3C and Realtek audio

1. What are the audio interface key specifications for measurement performance?

2, Recommended audio interface products.

TIA


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,259
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Streaming Equipment
Kaleidescape | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Are you using REW for your measurement software?

What processor or AVR are you currently using to power your speakers?


Sliderule

New Member
Thread Starter
Joined
Apr 1, 2024
Messages
5
I have a 4-way crossover that connects to the 4 power amps. I feed the signal from the audio interface to the inputs of the 4-way crossover. The midrange and tweeters are electrostats and the dynamic woofers and 24" Hartley woofer is built into the wall.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
639
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer
Not many folks using interfaces and Behringer mics anymore (although I’m one of them). Your best bet is likely to stick to the prevailing wisdom of the day for using interfaces with REW. The following is from an old post at Home Theater Shack on the topic, posted by a guy who had tried numerous devices:

What you (and I) want for REW is a very simple 2-in/2-out USB sound device with phantom power, flat response, and low noise. No fancy DSP effects, mixing, aux sends/returns, none of it. Just 2 ins and 2 outs (especially for Mac users), front panel gain and phantom power, and USB powering (no external wall blob). Simple is better. Simplest is best.

If your old Mobile Pre can’t work with Widows 11, it shouldn’t be hard to find a simple current-model interface that will.

Shockingly, I’m still able to use my old TASCM US-122L with Windows 10, although I’m resolved that my luck will run out eventually and I’ll be forced to spring for a new one.

Regards,
Wayne


Sliderule

New Member
Thread Starter
Joined
Apr 1, 2024
Messages
5
Oops am using rew 5.31 sw.

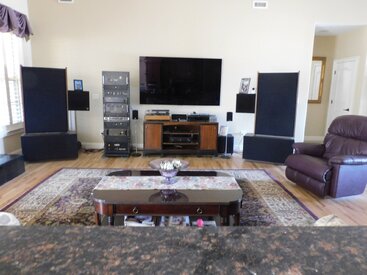

Attachments

  • DSCN0866.JPG
    205.3 KB · Views: 9

jtalden

Senior Member
Joined
May 22, 2017
Messages
888
Location
Arizona, USA
More
Preamp, Processor or Receiver
Marantz AV7705 Pre/Pro
Main Amp
VTV 6 chnl NC252MP P-amp x 2
Additional Amp
Behringer DCX2496 x 2
Universal / Blu-ray / CD Player
OPPO BDP-103 Universal Player
Front Speakers
DIY SEAS H1456/H1212 Spkr x 5
Subwoofers
DIY JBL 2235H 15" SW x 2
Video Display Device
JVC DLA-X790R
Screen
Da-Lite Da-Snap 39105V - 92"
Here is a link to a good site for interface reviews.
The MOTU M2 is a good value if you are looking for a high-performance unit.

For normal acoustic work almost any of the audio interfaces are fine. Just get one with the features you want.


Sliderule

New Member
Thread Starter
Joined
Apr 1, 2024
Messages
5
Thank you all for your help. I have a Motu M2 on order. The mobile Pre has died. I am confused as to how to use the calibration function and what are the connections. My laptop has no audio line outputs but it has a usb C port which supports audio. My laptop has no way to output line level audio. I am assuming that a drive signal for soundcard calibration is coming internally via the usb c cable. I have downloaded the M2 users manual but it is not very detailed. Also I did check the reviews on Amazon for insight. Any suggestions for connections for soundcard calibration and REW settings would be greatly appreciated.

david white

Joined
Apr 25, 2017
Messages
101
Location
Omaha, NE
More
Preamp, Processor or Receiver
StormAudio ISP.32 AVB
Main Amp
Digital Amp Company Cherry MEGASchino MONO's
Additional Amp
Digital Amp Company Cherry Maraschino's
Universal / Blu-ray / CD Player
HTPC
Front Speakers
JTR Speakers Noesis 215RM
Center Channel Speaker
JTR Speakers Noesis 215RM
Surround Speakers
JTR Speakers Slant 8
Surround Back Speakers
JTR Speakers Slant 8
Front Height Speakers
JTR Speakers Slant 8
Rear Height Speakers
JTR Speakers Slant 8
Subwoofers
4 ea JTR Speakers Captivator S2's
Other Speakers or Equipment
Infinite Baffle - 8 Acoustic Elegance IB15 drivers
Video Display Device
JVC DLA-NX7
Screen
Seymour AV Retractable CenterStage XD
Connect the M2 to the laptop with a USB C cable. You don't need to do any soundcard calibration. The M2 has a completely flat frequency response. You connect the Behringer mic to input 1 and press the corresponding 48V button on the M2 to activate phantom power. Load your mic calibration file into REW like before.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
639
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer
My laptop has no way to output line level audio.

The interface has audio outputs, which will connect to an input on your home theater system=.

Regards,
Wayne
