Hello from France

Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn

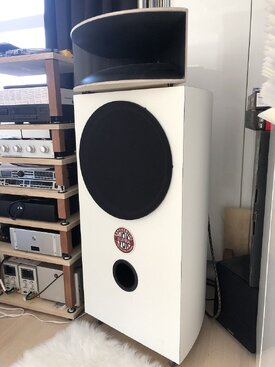

Hello. I am a lover of music of all styles but very attached to the quality of the sound. I built my stereo little by little with as a base high-efficiency diy speakers: Supravox 16" EXC 11V in bass reflex 200 liters and compressions Radian 950pb with horns Araï 290FL. Dcx24-96 active filter, digital FLAC source on JRiver, separate bass-treble amplification.
After long months of study, tweaking and testing, I got a hi-fi system that works well, with superb bass and well-detailed treble, working on all styles of music. Today I feel the need to measure my installation, to see if it is consistent, and where I can make improvements (treatment of the room). REW seems to me to be the ideal tool for this


Attachments

mechman

Senior Admin
Staff member
Joined
Apr 4, 2017
Messages
1,816
Location
Empire Township, MN
My AV System
Preamp, Processor or Receiver
Pioneer VSX-832
Front Speakers
Definitive Technology Studio Monitor 55s
Center Channel Speaker
Definitive Technology CS8040
Surround Back Speakers
Definitive Technology DI6.5R
Other Speakers or Equipment
Apple TV 4K
Video Display Device
LG OLED65C7P
Remote Control
Logitech Harmony 650
Streaming Subscriptions
HBO Max, YouTubeTV, Hulu, Netflix, Disney+
Welcome to AV NIRVANA Eric! :wave:


chrapladm

Moderator
Staff member
Joined
Apr 14, 2017
Messages
279
Hello Eric and welcome to the forum. Sounds like quite the setup you have DIY'd. :T What amps are you using for your treble and bass?


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
7,695
Location
Balt/Wash Metro
My AV System
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Carada Cine-White 0 gain
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Welcome to the forum!


Marzen

Registered
Joined
Apr 1, 2019
Messages
14
My AV System
Preamp, Processor or Receiver
Denon 4300x
Main Amp
Parasound a21+
Additional Amp
Emotiva
DAC
Blusound Node 2i
Front Speakers
Magnepan 1.7i
Center Channel Speaker
Airmotiv C1+
Surround Speakers
Polk Audio RC85i in-wall
Surround Back Speakers
Polk Audio RC85i in-wall
Front Height Speakers
Polk Audio RC80i 2-Way In-Ceiling
Rear Height Speakers
Polk Audio RC80i 2-Way In-Ceiling
Subwoofers
Dayton Audio RSS315HF-4 12" Reference Series
Video Display Device
LG Cinebeam HU810PW
Screen
Silver Ticket 120in
Streaming Equipment
Nvidia Shield 2017
Other Equipment
Butt Kickers

Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
Hello, sorry for this long silence on the forum. I have little time because of work.


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
sorry for the horribly late response to chrapladm: the power amplifier for low frequencies is a Hypex Ncore 250 that gives 125W under 8 ohms

The power amplifier for high frequencies (Radian 950pb) is a clone of Nelson Pass' AmpCamp class A 2x15W


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
51705

Last edited:

Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
here a photo of the cabinet (diy) with at the bottom a 2000vA current symmetrizer (DIY too), the two laboratory power supplies for the excitation bass speakers, the DCX Behringer and an SRC (to add a turntable later)


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
all connections are balanced (neutrik) and cables of professional type but at a very reasonable price (Mogami, Belden, Canare). Everything is DIY


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
Regarding REW, it took me a long time to set up my sound card (Focusrite) and get the first curves. I am not at all an expert in computer science or acoustics. For the moment I have measured a response curve in the near field and at the listening area.


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
My approach was to make measurements of the speakers in near field, measurements of frequency responses of the bass speaker and the treble speaker, to check the cut-off frequency. Then I corrected the near-field curve by equalization with the dcx (and simulation in REW).
Listening Pos 340 cm.jpg


Eric 99

Member
Thread Starter
Joined
Jan 2, 2022
Messages
11
My AV System
Preamp, Processor or Receiver
Behringer SRC 24-96
Main Amp
HypexNcore250
Additional Amp
Nelsonpass amp camp 2x15w
Computer Audio
Dell Barebone i5 win10 64bits
DAC
Behringer DCX24-96
Front Speakers
Supravox EXC 400-2000 + Radian 950Pb and Arai horn
Hello, the small A/B box is a speaker selector that was to be used for adjusting the length of the vents when listening. I've never used it until now.
