Getting sub phase set right with active/balanced speakers

highstream

Member
Thread Starter
Joined
Dec 29, 2018
Messages
53
I have a pair of ATC SCM19A active floorstanders that take balanced ICs and a pair of JL Audio e-110 subs I'm setting up. The apparently best method for manually setting the JL's phase dial is to reverse the polarity of the main speakers and then adjust that channel sub's phase dial for the least amount of bass while playing a test tone around the crossover point. With active, balanced main speakers that take an IC, and without a polarity switch on the preamp, that's not as obvious. Any ideas? There is a polarity switch on the sub. Would that accomplish the same thing?

If so, what do I listen for to tell the minimum point? Ear to speaker or from listening position? This is manual operation, no mikes, except for a iPad decibel app, and the subs and mains are adjacent to each other. Thanks,

Last edited:

Ian Eales

Member
VIP Supporter
Joined
Aug 18, 2017
Messages
31
Location
Florence, Oregon
More
Preamp, Processor or Receiver
marantz NR1711
Universal / Blu-ray / CD Player
LG BP335W Region Free
Front Speakers
RS Minimus 7
Center Channel Speaker
RS Minimus 7 x 2 wired in series
Surround Speakers
RS Minimus 7
Surround Back Speakers
TEAC LS-MC85
Subwoofers
Martin Logan 2x 800x
Other Speakers or Equipment
Triamped Eminent Tech LFT-8b music.
Screen
LG 65" OLED
Remote Control
TOO Many!
Other Equipment
VPI bricks, Transparent Link cables, De Mat Disc
Playing a test tone at the crossover point is most assuredly not the way to proceed.
IMO, unless you have sophisticated tools and the know how, the best way is by ear listening to program.
This is how I did it before I had tools: ieLogical SubterraneanHomesickBlues
Read the whole page for background on sub design, problems and integration.
Also consider rolling the bottom from an octave above the mains' -6dB point [maybe 80-100Hz] with a first order filter and possibly invert the sub polarity. Unfortunatley, the e110 only has fourth order filter.
IGNORE what the knobs say and keeps adjusting in small increments over several program types. When you hit the sweet spot, you'll know!


JStewart

AV Addict
Supporter
Joined
Dec 5, 2017
Messages
1,415
Location
Central FL
To Ian’s point, there are more accurate ways, meaning you’ll know it’s correct, to to this, but in the spirit of using the tools you have at hand, here goes...

Before you start you should set distances/delays to what they actually are because the procedure you wish to use will align the phase of mains and sub at the chosen frequency, but will not ensure they are on the same cycle. Setting actual distances/delays beforehand should keep that from happening.

There is a polarity switch on the sub. Would that accomplish the same thing?

It’s supposed to.

If so, what do I listen for to tell the minimum point? Ear to speaker or from listening position? This is manual operation, no mikes, except for a iPad decibel app,

Use the app. Set for “C” weighting.
Use the app at the listening position.


AJ Soundfield

Active Member
Joined
May 21, 2017
Messages
377
Location
Tampa
More
Preamp, Processor or Receiver
Yamaha RXA800, Denon AVR-X4500, Lexicon MC10
Main Amp
Hypex Ncores
Additional Amp
Abacus Ampino, Triode Corp TRV-35SE
Computer Audio
AudioEngine D2
DAC
NAD M51
Universal / Blu-ray / CD Player
Yamaha BDA1010
Front Speakers
Soundfields
Center Channel Speaker
Soundfields, KEF Q150
Surround Speakers
Soundfields
Surround Back Speakers
Revel M16
Subwoofers
Soundfield Cardioid Rythmik Servo
Other Speakers or Equipment
AVA ABX
  • Like
Reactions: Mike-48

VinceHoffman

Member
Joined
Mar 20, 2020
Messages
57
Location
Ontario, Canada
More
Preamp, Processor or Receiver
Anthem AVM60 or Coincident Statement Linestage
Main Amp
N/A
Additional Amp
2x Meridian 557 for Atmos
DAC
PS Audio Directstream DAC
Universal / Blu-ray / CD Player
Oppomod UDP-203 & Jay's Audio CDT2 Mk II transport
Front Speakers
ATC SCM20ASL Pro mkII on Skylan 4 post stands
Center Channel Speaker
ATC SCM20ASL Pro mkII on Skylan 4 post stand
Surround Speakers
ATC SCM20ASL Pro mkII on Skylan 4 post stand
Front Height Speakers
ATC SCM12i Pro hung from K&M ceiling mounts
Rear Height Speakers
ATC SCM12i Pro hung from K&M ceiling mounts
Subwoofers
4x Seaton Sound Submersive HP
Other Speakers or Equipment
DSPeaker Anti-mode 2.0 for sub modal EQ & delay
Video Display Device
JVC DLA-990 & Isco 3L Ana-lens on motorized sled
Screen
Seymour Screen Excellence 4k 2.37:1 Motorized
Streaming Equipment
Apple TV 4k
Streaming Subscriptions
Apple+, CraveTV, Disney+, Netflix, and PrimeTV
Other Equipment
Oracle Delphi VI Reference/Turbo PS/SME V/Benz LP-S turntable, Foundation Research V5 phono-stage, & JL Audio CR-1 electronic subwoofer crossover
  • Like
Reactions: Mike-48

Buttecreeker

Registered
Joined
Jun 25, 2020
Messages
1
Location
Marble Falls, Texas
More
Preamp, Processor or Receiver
Classé SSP-800
Main Amp
McIntosh MC-452
Additional Amp
Classé CA-5200
Universal / Blu-ray / CD Player
Oppo UDP-203
Front Speakers
Ohm F-5015
Center Channel Speaker
Ohm 3000
Surround Speakers
Ohm 2000
Surround Back Speakers
B&W M-1
Other Speakers or Equipment
Furman IT Ref. 20i- Power conditioner
Video Display Device
Epson Home Cinema 4010
Screen
Da-Lite- Tens. Contour Electrol, 106" HD Prog. 0.9
Remote Control
Harmony Elite
I have a pair of ATC SCM19A active floorstanders that take balanced ICs and a pair of JL Audio e-110 subs I'm setting up. The apparently best method for manually setting the JL's phase dial is to reverse the polarity of the main speakers and then adjust that channel sub's phase dial for the least amount of bass while playing a test tone around the crossover point. With active, balanced main speakers that take an IC, and without a polarity switch on the preamp, that's not as obvious. Any ideas? There is a polarity switch on the sub. Would that accomplish the same thing?

If so, what do I listen for to tell the minimum point? Ear to speaker or from listening position? This is manual operation, no mikes, except for a iPad decibel app, and the subs and mains are adjacent to each other. Thanks,

It sounds like the method you are describing is one described by Soundoctor Barry Ober. In a nutshell he states; add 12 more feet to your subwoofer distance setting than you have for your front Main channels. Then reverse the polarity of the Main speaker that is closest to the sub and disconnect all other speaker channels. Using a test tone playing at the crossover frequency, place your head equidistance between the Main and the closest sub, start adjusting the Phase Knob, Phase Switch, and Level Control Knob on the sub to fine tune your sub to achieve the deepest null or possibly complete disappearance of the tone. Then, do the same procedure for the other Main and its closest sub.

Since you have balanced IC's to your Mains, and you stated you don't have any other processor/speaker switching capabilities, you might want to make a balanced connector "pigtail", that has the polarity reversed. You will only need to build one since you are adjusting one Main to sub at a time.

I've used this method in the past, and it worked very well to adjust for the "Group Delay/Latency" of my OHM Walsh 4.5000 to Velodyne DD-18 sub. However, now I have OHM Walsh F-5015's as my Mains, and they have a down firing 15" active sub integrated into the cabinet of each Main speaker. I tried performing this procedure yesterday by placing my SPL mike mid way up the cabinet to find the lowest SPL between the 15" driver and the CLS driver, and started adjusting my sub delays, in my processor, back down in real time, and the result is that my Left Main speaker+sub are identical to each other in delay distance settings, and the Right Main speaker+sub delay distance setting diference is 2' 2". I need to do serious listening to see how everything sounds comparing these settings, to the settings I've come up with using REW.


highstream

Member
Thread Starter
Joined
Dec 29, 2018
Messages
53
Thanks for the ideas. For a couple of reasons, including practical given my room, I've located the subs immediately to the inside of the mains. Putting my head between the two is what I did while adjusting. However, since I'm still auditioning a couple of ATC active versions, the final set up awaits.


Mike-48

Member
Joined
May 27, 2019
Messages
138
Location
Portland, Oregon, USA
Since the subs and mains are the same distance and orientation from your listening position, it will work to put your microphone -- i.e., your head -- in between them when doing this.

I agree with the suggestion by @AJ Soundfield and @VinceHoffman to buy a measuring mic and see what frequency response (FR) you actually are getting. I've had better results that way. That also lets you move the subs around (to the degree that aesthetics allows) and see when the FR is best. In that case, measure response at the main listening position.

"Super Sliders" (teflon glides under your subs' feet) are your friend when repositioning.

An active crossover (analog or digital) can help get the best blend. I've always used one, but its necessity is a matter of opinion, like so many things audiophile.

Have fun!

P.S. I just saw, I'm about 3 weeks late to this thread. If you aren't done (@highstream), I hope this helps. If you are, I hope you're happy with the results.


highstream

Member
Thread Starter
Joined
Dec 29, 2018
Messages
53

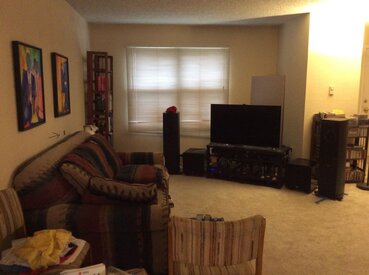

Thanks, Mike. Given the room and space available, as shown in the attached photo, the subs can't really go anywhere but next to the main speakers (there's now also an upper matching bass trap in the back). They actually sound good there with a preliminary set up, pending a decision on which main ATC speakers (19A or 40A) I'm going to keep.


Attachments

  • Left living room - 3.JPG
    Left living room - 3.JPG
    185.6 KB · Views: 21

highstream

Member
Thread Starter
Joined
Dec 29, 2018
Messages
53
The catch is the bookcase, closed area and sofa on the left do wonders, but the open area on the left — front entry, stairway and unused wood stove brick area — means a significant dB difference left over right, and sound typically centering a bit to left center (per the recording of course). Doesn’t seem much I can do about it. My preamp has a balance knob, but any gains come with loss of focus, etc.


Mike-48

Member
Joined
May 27, 2019
Messages
138
Location
Portland, Oregon, USA
A friend uses some kind of acoustic screen to fill the opening in his room when he's listening. He say it helps a lot. His system does sound good to me, but more than that, I can't say.
