Dual subs tuned as 1 sub or as 2 individual subs

NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
I have heard that you should tune bass (with 2 subs), as a single sub. I am assuming you use a Y connector to drive both subs from 1 channel on the crossover. I have 2 horn subs currently being used as part of a 3 way horn setup, and was thinking maybe I should try and eq both horn subs as 1, and run a 2.1 setup.

What will the advantages be for tuning and running them as 1 sub? Any disadvantages?


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
675
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Streaming Equipment
Roku Express
Front Speakers
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Center Channel Speaker
Canton Karat 920
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers
Adcom ACE-515 (for power management)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Video Display Device
Yamaha DT-2 (digital clock display)
Remote Control
Stock Yamaha Remote
Other Equipment
Audio Control R130 Real Time Analyzer
The short answer, not doing a deep-dive into the "why:" The best argument for EQing multiple subs as one is, that’s the way you hear them.

It’s not unusual to find that after EQing each sub separately, when you afterwards measure combined response, it’s worse than either was separately, and the combined measurement is unacceptable.

Regards,
Wayne


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
The short answer, not doing a deep-dive into the "why:" The best argument for EQing multiple subs as one is, that’s the way you hear them.

It’s not unusual to find that after EQing each sub separately, when you afterwards measure combined response, it’s worse than either was separately, and the combined measurement is unacceptable.

Regards,
Wayne
So if I understand you correctly...run them as one, eq as one...run them separately, eq separately, correct?


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
675
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Streaming Equipment
Roku Express
Front Speakers
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Center Channel Speaker
Canton Karat 920
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers
Adcom ACE-515 (for power management)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Video Display Device
Yamaha DT-2 (digital clock display)
Remote Control
Stock Yamaha Remote
Other Equipment
Audio Control R130 Real Time Analyzer
Ar
So if I understand you correctly...run them as one, eq as one...run them separately, eq separately, correct?
Are you talking about having two subs, but only using one at any given time? If so, yes - run and EQ them separately.

Regards,
Wayne


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
Ar
Are you talking about having two subs, but only using one at any given time? If so, yes - run and EQ them separately.

Regards,
Wayne
No...currently I have k402mehs horns (2 way synergy horn), and a pair of f20 sub horns. I have the setup configured as a 3 way...even though the MEHs dig down to the mid 20s. I did it this way to not push the MEH woofers ( a pair of 15" Celestion ftr woofers per k402 horn) to hard, and I currently crossover the woofers at 80hz to the f20s.

I was wondering if I ran the MEHs as a 2 way ( the normal way), and tuned both f20s as a single sub via a xlr splitter from my xilica crossover, to a amp for each f20... I would have a 2.1 setup. Does this make sense? Would tuning 2 f20s horn subs as a single sub be advantageous vs running the setup as a 3 way?

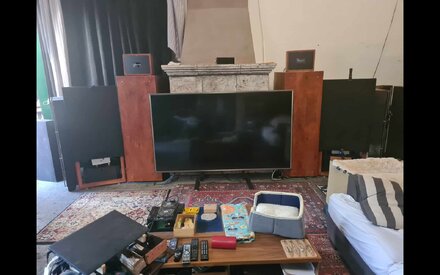

In the attached picture...you can see a 5' tall f20 horn sub partially behind the tv, and a MEH on the outside edge of each f20.


Attachments

  • Screenshot_20240715-100905_Gallery.jpg
    184.9 KB · Views: 14

ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,560
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
DAC
Chord Electronics Ltd. Qutest
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
I would suggest that if your mains and your subs are all symmetrically located, as your photo seems to show and if your are driving them in the sub 80Hz range you may run them as you are thinking as 2.1 system... Otherwise, why not run them as stereo subs as in 2.2 system... Or if not symmetrical, then one might need to time aline them... Just a little food for thought...


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
I would suggest that if your mains and your subs are all symmetrically located, as your photo seems to show and if your are driving them in the sub 80Hz range you may run them as you are thinking as 2.1 system... Otherwise, why not run them as stereo subs as in 2.2 system... Or if not symmetrical, then one might need to time aline them... Just a little food for thought...
If I run them as a single... I was hoping maybe I might get a spl boost...or maybe the tonallity would change since they would be getting the same signal.

They are symetrical (around the fireplace), BUT the left channelis about 5' from the wall and the right channel is 20' from the wall


ddude003

AV Addict
Joined
Aug 13, 2017
Messages
1,560
Location
Somewhere Northeast of Kansas City Missouri
More
Preamp, Processor or Receiver
PrimaLuna Dialogue Premium TubePre (2 channel+sub)
Main Amp
McIntosh MC152 SS Amp (2 channel)
Additional Amp
Yamaha RX-A850 Pro (the other 5 channels lol)
DAC
Chord Electronics Ltd. Qutest
Computer Audio
MacBook Pro, Custom i7 7700k De-lid 2xAsus1080ti GFX, Audirvana Studio, Hang Loose Convolver, Tone Projects Michelangelo, Pulsar Massive & 8200, LiquidSonics, SoX
Universal / Blu-ray / CD Player
Sony UBP-X700 /M Ultra HD 4K HDR & PS5
Streaming Equipment
Netgear Nighthawk S8000 Streaming Switch, Lumin U1 Mini Streamer Transport
Streaming Subscriptions
QoBuz Studio Premier, Amazon Prime & Netflix
Front Speakers
Martin Logan ElectroMotion ESL
Center Channel Speaker
Martin Logan Motion C2
Surround Speakers
Martin Logan Motion 4
Surround Back Speakers
Martin Logan Motion 4 (yes, another set of these)
Subwoofers
Martin Logan Dynamo 700
Other Speakers
Cifte 12AU7 NOS & Genalex Gold Lion Tubes in Pre
Screen
Elite Screens Aeon CLR3 0.8 Gain 103-inch
Video Display Device
Samsung The Premiere LSP7T UST Laser Projector
Remote Control
PrimaLuna, Lumin iApp, Samsung & Yamaha
Other Equipment
ThrowRug, SaddleBlankets, WideBand & Bass Traps...
Once again, this is the point where only by trial and measure and what your own ears reveal about which method gets you to your audio nirvana... It is also possible that you may create more problems with room modes... I don't remember if you have your room squared away with treatments...

"BUT the left channelis about 5' from the wall and the right channel is 20' from the wall" is the part I would wonder about...

Last edited:

NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
Once again, this is the point where only by trial and measure and what your own ears reveal about which method gets you to your audio nirvana... It is also possible that you may create more problems with room modes... I don't remember if you have your room squared away with treatments...
I have 10 acoustic absorption panels, and heavy theater curtains, but due to the 20,000+cft room with a 32' ceiling...it is not really treated as much as it should be. Our next house will hopefully be much better, as I plan on having a room the size of a 2 car garage or larger dedicated room, that will be fully treated. I am just trying to tune it the best I can in this room. In a room that is half the size or even smaller with a ceiling about 10' max...my setup would be much easier to properly tune.


Sonnie Parker

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,662
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Music Server
ROON Nucleus One
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Streaming Equipment
Kaleidescape
Lenovo X1 Carbon
Apple TV 4K
FireCube 3
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Other Equipment
Zero Surge 8R15W-1
Zero Surge 2R20W
Front Speakers
RTJ 410
Front Wide Speakers
JTR Neosis 110HT
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Cables
AudioQuest - Various
THX PixelGen HDMI
Pangea Power Cables
Custom Cables
Satellite System
Dish Joey 4K
Network/Internet
C-Spire 1Gig Fiber
Omada OC300 Controller
Omada ER8411 10G Router
Omada SG3218XP-M2 10G/2.5G Managed Switch
Omada SG2210XMP-M2 10G/2.5G Managed Switch
SilentPower LAN iPurifier Pro (for Nucleus One)
Other Equipment
Salamander Synergy Equipment Stand
VTI Amp Stands for the Monoblocks
Headphones/IEMs
HIFIMAN HE1000se
Unique Melody Mest MKII
Headphone DAC/Amp
Eversolo DMP-A6
RME ADI-2 DAC FS
HIFIMAN Goldenwave Serenade
Whole House System
HEOS System
Home-150 Speaker x6
Samsung S9 Tablet w/ HEOS
Office/Study System
Office System
Dell Precision Computer
Roon Networked
Vanatoo Transparent One Encore Plus Speakers
Secondary/Additional Room System
AV Test Room System
NAD M33 Streaming DAC Amp
MartinLogan Motion XT F200
JTR Captivator RS1
miniDSP EARS
Zero Surge 8R15W-1
Zero Surge 2R20W
Dell Optiplex
Roon Networked
Secondary/Additional Room System
Sunroom System
Denon AVR-X1800H HEOS Receiver
Soundfield Custom Speakers
Dayton Audio IO8XTW Outdoor Speakers
Roon Networked
Dish Joey
JVC 37" TV
Secondary/Additional Room System
Cabin System
Onkyo TX-SR805 Receiver
Infinity Primus P163 Speakers
RSL Outsiders Outdoor Speakers
Shield TV Pro
Sony 55" TV
Secondary/Additional Room System
Vinyl Room
Accuphase E-280 Integrated Amp
Technics SL-1210GR2 Turntable
Ortofon 2M Blue Cartridge
KLH Model Three Speakers
Zero Surge 8R15W-1
This is where DLBC would really come in handy. Just sayin'. :dontknow:

Acoustic panels won't do anything much for frequencies below 100Hz. You'd need huge resonators for that.


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
This is where DLBC would really come in handy. Just sayin'. :dontknow:

Acoustic panels won't do anything much for frequencies below 100Hz. You'd need huge resonators for that.
I still have the minidsp 88m with Dirac...not sure if it has ba seperate bass management though


Sonnie Parker

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,662
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Music Server
ROON Nucleus One
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Streaming Equipment
Kaleidescape
Lenovo X1 Carbon
Apple TV 4K
FireCube 3
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Other Equipment
Zero Surge 8R15W-1
Zero Surge 2R20W
Front Speakers
RTJ 410
Front Wide Speakers
JTR Neosis 110HT
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Middle Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivators - 4000ULF-TL x2 + 2400 x6
Video Display Device
Sony 98X90L
Remote Control
AVA Cinema
Cables
AudioQuest - Various
THX PixelGen HDMI
Pangea Power Cables
Custom Cables
Satellite System
Dish Joey 4K
Network/Internet
C-Spire 1Gig Fiber
Omada OC300 Controller
Omada ER8411 10G Router
Omada SG3218XP-M2 10G/2.5G Managed Switch
Omada SG2210XMP-M2 10G/2.5G Managed Switch
SilentPower LAN iPurifier Pro (for Nucleus One)
Other Equipment
Salamander Synergy Equipment Stand
VTI Amp Stands for the Monoblocks
Headphones/IEMs
HIFIMAN HE1000se
Unique Melody Mest MKII
Headphone DAC/Amp
Eversolo DMP-A6
RME ADI-2 DAC FS
HIFIMAN Goldenwave Serenade
Whole House System
HEOS System
Home-150 Speaker x6
Samsung S9 Tablet w/ HEOS
Office/Study System
Office System
Dell Precision Computer
Roon Networked
Vanatoo Transparent One Encore Plus Speakers
Secondary/Additional Room System
AV Test Room System
NAD M33 Streaming DAC Amp
MartinLogan Motion XT F200
JTR Captivator RS1
miniDSP EARS
Zero Surge 8R15W-1
Zero Surge 2R20W
Dell Optiplex
Roon Networked
Secondary/Additional Room System
Sunroom System
Denon AVR-X1800H HEOS Receiver
Soundfield Custom Speakers
Dayton Audio IO8XTW Outdoor Speakers
Roon Networked
Dish Joey
JVC 37" TV
Secondary/Additional Room System
Cabin System
Onkyo TX-SR805 Receiver
Infinity Primus P163 Speakers
RSL Outsiders Outdoor Speakers
Shield TV Pro
Sony 55" TV
Secondary/Additional Room System
Vinyl Room
Accuphase E-280 Integrated Amp
Technics SL-1210GR2 Turntable
Ortofon 2M Blue Cartridge
KLH Model Three Speakers
Zero Surge 8R15W-1
I believe it's the 88BM that has bass management. That should be what you have if there is an M in the model number.


Spidacat

Member
Joined
Apr 18, 2017
Messages
18
Location
North Carolina
More
Preamp, Processor or Receiver
Denon AVRX4300H
Main Amp
Emotiva XPA 5
Universal / Blu-ray / CD Player
Oppo 203
Front Speakers
Revel F206
Center Channel Speaker
Revel C208
Surround Speakers
Revel M16
Front Height Speakers
Volt 6
Rear Height Speakers
Volt 6
Subwoofers
PSA TV2112-M x 2
Other Speakers
HeZe platform with 2 JBL GX1200, Behringer NX3000
Video Display Device
Vizio M70-C3
Remote Control
Harmony 650
If nothing else, I think you should at least time align the two subs. Unless they are very close together, delaying one via the DSP and measuring with REW you might get more output and probably a lot better native response before EQing.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,696
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
The only problem with running them as one would be the distance to the listening position. They need to be physically placed in your room so time alignment isn't an issue.


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
If nothing else, I think you should at least time align the two subs. Unless they are very close together, delaying one via the DSP and measuring with REW you might get more output and probably a lot better native response before EQing.
They are about 6' apart from each other and equally 12' to the mlp 12' away.


Todd Anderson

Editor / Senior Admin
Staff member
Joined
Jan 20, 2017
Messages
9,696
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
DAC
THX ONYX
Computer Audio
AudioEngine A2+
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Video Display Device
JVC NX7
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Well, if you have them spaced like that, treating them like one is much less problematic!


Jack1949

Active Member
VIP Supporter
Joined
Jun 9, 2017
Messages
282
Location
Loveland, Colorado
More
Preamp, Processor or Receiver
Yamaha RX-A3040
Additional Amp
KING 5-CHerry Amp - Digital Amplifier Co.
Universal / Blu-ray / CD Player
Oppo BDP-103D
Front Speakers
JTR 210RT
Center Channel Speaker
JTR 210RM
Surround Speakers
Ascend Acoustics Sierra Towers with RAAL
Front Height Speakers
Polk Audio RT55i
Rear Height Speakers
Polk Audio RT35i
Subwoofers
Dual JTR 118HT
Other Speakers
miniDSP 2x4 HD
Video Display Device
Samsung UN60H6350
I have furniture sliders under my subs so that I can easily move them when needed. This came in handy when I was trying to find the best spots for the subs in my room, so I left them under the subs afterwards. Of course, my subs are much lighter than yours, but if you can tip your sub up enough to push sliders under two corners (and repeat again on the other side), it might be something to consider.


NBPK402

Moderator
Staff member
VIP Supporter
Thread Starter
Joined
Apr 17, 2017
Messages
1,772
Location
San Miguel de Allende Mexico
Thanks. I have hockey pucks with stick on felt sliders attached to the bottom.They slide good...just hard to move 5' tall x 3' deep and 2' wide (dimensions change depending on orientation I choose), and changing orientation is definitely a 2 man job.

Top Bottom
