Calibration troubles

[spank91]

Hi,
I've just discovered this program via this video

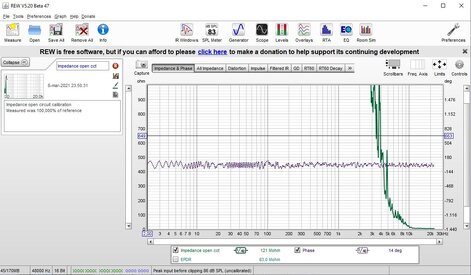

and i tried making my own cable and started the open circuit calibration process as the video explains.

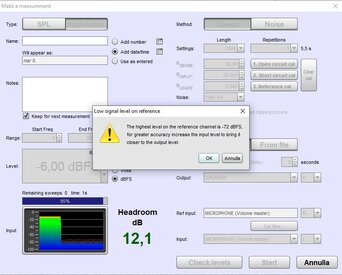

Every time i get an error message stating that i'm clipping or i have an input volume too low.
What am i doing wrong?

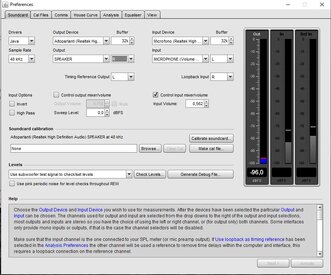

I'll attach some screens to explain.



[John Mulcahy]

Probably a problem with your rig, it should be wired as shown in the help with a loopback from the output to the ref input.



[spank91]

I made some progress with the calibration. I got past the short circuit part but when i do the last calibration(with resistor) i get the low volume error "the input is -16db..."
Also all the values seem off/have low values(looking at the video's values)



[sm52]

Check out this thread. Maybe there is something useful for you.

Sound Card Calibration and Impedance Circuit

On the old version of REW, I was able to calibrate the sound card and measure the impedance of the speakers. On the latest version, I can’t calibrate. I use an amplifier and a voltage divider to protect the sound card inputs. Questions. 1. If an amplifier and voltage divider are used, is it...

www.avnirvana.com
