Any Ideas On this Measurement? [Analysis Help]

trackhouse1

New Member
Thread Starter
Joined
Sep 11, 2019
Messages
4

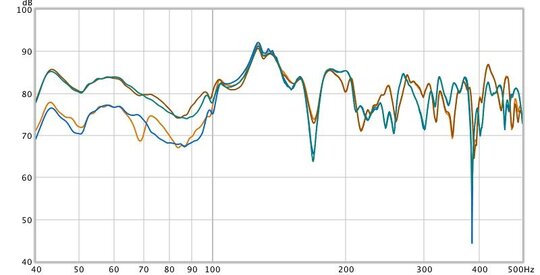

Just did my first test am curious as to any ideas to sort out the low end?
24886


AudiocRaver

Senior Admin
Staff member
Joined
Nov 21, 2016
Messages
797
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
A typical room measurement, taken at the Listening Position (LP), has some LF unevenness. A few questions:

  • What type of speakers do you have?
  • Do you have subwoofer(s)?
  • Any room treatment in place?
  • It looks like a single-speaker measurement, which is good. Taken at the LP?
The level below 100 Hz looks a bit low. Good job setting the vertical scale properly (40dB to 100dB).


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
2,447
Location
Alabama
My AV System
Preamp, Processor or Receiver
NAD M17 V2 Processor
Main Amp
Emotiva XPA-1 Gen 2 Monoblocks
Additional Amp
Emotiva XPA Seven
Other Amp
Emotiva A-150
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player
Front Speakers
MartinLogan Classic ESL 9
Center Channel Speaker
MartinLogan Focus C-18
Surround Speakers
MartinLogan ElectroMotion ESL
Surround Back Speakers
MartinLogan Motion 12
Front Height Speakers
MartinLogan EM-IC
Rear Height Speakers
MartinLogan EM-IC
Subwoofers
SVSound SB16-Ultra x 4
Video Display Device
Epson 6050
Screen
Elite Screen
Remote Control
Universal MX-890
Other Equipment
Dish Joey 4K
Set your response graph at 15Hz to 400Hz... then check it with your sub.

You might move your sub around to see if you can get some room gain out of it... maybe closer to a corner.


AudiocRaver

Senior Admin
Staff member
Joined
Nov 21, 2016
Messages
797
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
OK, I was wondering why the LF below 100 Hz would be low like it is. It makes sense, being a smaller near field monitor. The peak just above 100 Hz is typical. Like Sonnie says, adding a sub and finding a good position for it in the room will help the LF response. I will look at your other plots shortly.


AudiocRaver

Senior Admin
Staff member
Joined
Nov 21, 2016
Messages
797
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
Looking at the files you posted, your response below 2 kHz is about what we would look for with small near field monitors with a subwoofer in an untreated room. The dip at 85 Hz is probably a combination of phase misalignment between speakers and sub and some boundary reflection causing some cancellation. They throw in the 120 Hz peak so it seems like they are giving you some lower bass even though they are not. Above 2 kHz the speakers don't match very well - that could be dudto alighment - and the response is about 10 dB low. There might be a treble control turned all the way down.

Where are you hoping to go from here?

Top Bottom
