Hi guys, I am new here.

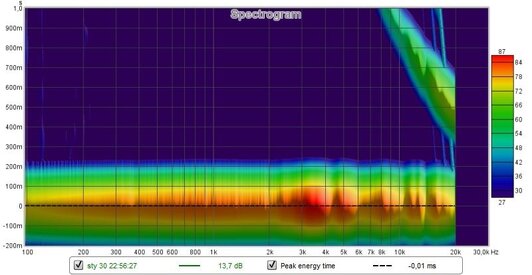

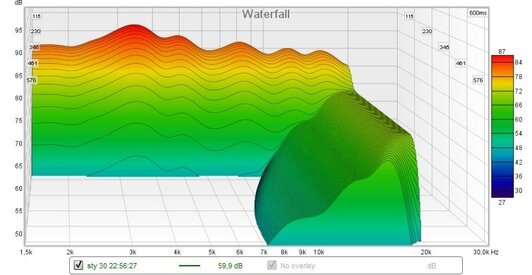

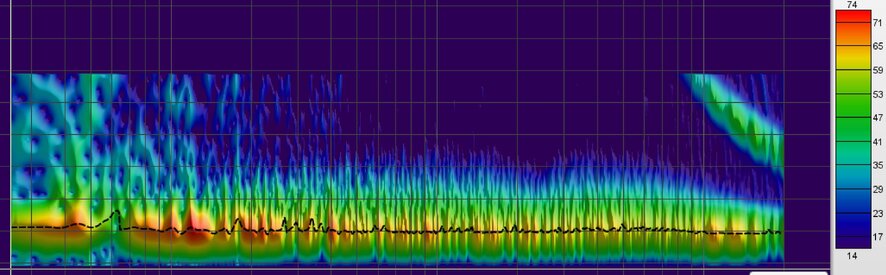

I have umik-1 microphone with calibration file. Last couple days I did lots of measurements of my speakers (focal sopra 2) but I always get funny results in higher frequency area. It does not matter where in the room. I even put blanket on speaker and microphone and measure it from close distance. Still the same.
Than I did another measurement of my headphones in other room (using new REW), and the result was similar, some strange higher frequency measurements. Is there something wrong with microphone? Or there are some settings in REW I can adjust?

Thanks
Tom

image_16292.jpg image_16232.jpg image_16323.jpg image_16324.jpg

Last edited:

AudiocRaver

Senior Reviewer
Staff member
Joined
Nov 21, 2016
Messages
974
Location
North Carolina, USA
More
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
You have some high frequency noise going on somewhere in your system. It almost looks like the REW sweep triggers a noise source that takes a little time to die down afterward. Does that make sense?

I do not believe it is the UMIK-1.

edit: Or that the REW sweep makes it worse. It looks like the noise is always there at least a little. The blue area at the bottom-right of the first sweep indicates this.


kenniGT

New Member
Thread Starter
Joined
Jan 29, 2018
Messages
7
Location
London,UK
You have some high frequency noise going on somewhere in your system. It almost looks like the REW sweep triggers a noise source that takes a little time to die down afterward. Does that make sense?

I do not believe it is the UMIK-1.

edit: Or that the REW sweep makes it worse. It looks like the noise is always there at least a little. The blue area at the bottom-right of the first sweep indicates this.

Thank you AudiocRaver, it makes sense.
Strange thing is, those two measurements were taken in two different rooms. I can not hear any strong background noise beside fridge and mechanical vent unit. I have turned them off, once for measurement, but this anomaly was still there. I will venture to find possible noise sources :)

And second measurement was taken having microphone inside one ear of a headphone (HD650). It is transparent though. I have 2.5m tall windows, not covered yet by curtains, in both rooms. Can they get exited enough by swipe to generate noise like this?

Last edited:

Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
636
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer

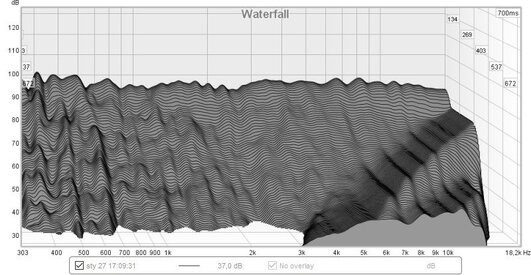

It’s definitely a steady-state signal – maybe from a power supply? A desktop computer, or one of your audio components? Notice with the black-and-white waterfall, it changed in level “mid stream!”

In any event, it shouldn’t be a problem if you can’t find the source. Waterfalls aren’t really relevant above 2-300 Hz or so, and as long as your SPL measurement is higher than the noise, you can get good frequency response measurements.

Regards,
Wayne


kenniGT

New Member
Thread Starter
Joined
Jan 29, 2018
Messages
7
Location
London,UK
It’s definitely a steady-state signal – maybe from a power supply? A desktop computer, or one of your audio components? Notice with the black-and-white waterfall, it changed in level “mid stream!”

In any event, it shouldn’t be a problem if you can’t find the source. Waterfalls aren’t really relevant above 2-300 Hz or so, and as long as your SPL measurement is higher than the noise, you can get good frequency response measurements.

Wayne, that could be it. My Hegel H300 produce small hum, which is not audible from distance of 2.5m for me, but microphone is much more
sensitive. And with second measurements - yes, desktop computer is a source of some noise, plus mytek brooklyn is connected to it via usb, so maybe some high pitch noise can travel trough it even to headphones?

Good to know waterfalls they are no use above 300Hz. I was more worried there is something wrong with my speakers. I could not sleep after first measurements ;)

Regards
Tom

Last edited:

kenniGT

New Member
Thread Starter
Joined
Jan 29, 2018
Messages
7
Location
London,UK
There is another possible source. My room is before adaptation and all walls and ceiling are made from plasterboard. It is insulated inside so it should be better than concrete wall - takes some energy but... maybe lower bass during measurements makes some of those plasterboard vibrate, and they give away energy in higher frequency. Is that possible? I will make measurements without lower end this evening to check this theory.

Last edited:

Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
636
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer
maybe lower bass during measurements makes some of those plasterboard vibrate, and they give away energy in higher frequency. Is that possible?
Doesn’t seem feasible. If that were the case, the high freq signal would fade away with the low freq signal. But it doesn’t.

It's not all bad though. You got an awesome avatar out of it. :)

Regards,
Wayne A. Pflughaupt


kenniGT

New Member
Thread Starter
Joined
Jan 29, 2018
Messages
7
Location
London,UK
Doesn’t seem feasible. If that were the case, the high freq signal would fade away with the low freq signal. But it doesn’t.

It's not all bad though. You got an awesome avatar out of it. :)

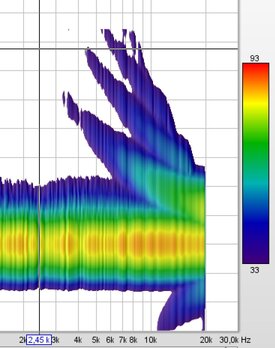

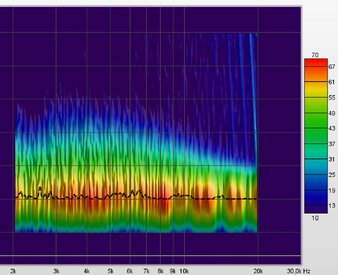

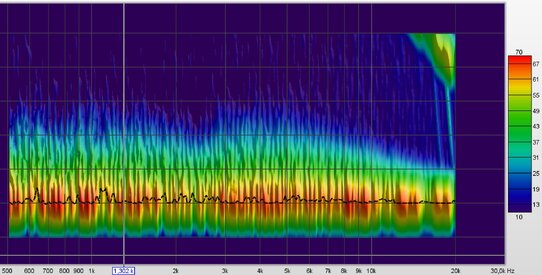

Yes avatar is funny :) I do not get so many arms anymore. It is just one arm. What I discovered is when I do measurement from 25hz to 20khz it is closer to main graph, from 500hz it is higher, from 2000hz it is gone...
25hz.JPG 500hz.JPG 2khz.JPG


AudiocRaver

Senior Reviewer
Staff member
Joined
Nov 21, 2016
Messages
974
Location
North Carolina, USA
More
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
Agreeing with Wayne P. that waterfalls are generally not used above 300 Hz or so, except that they can give an alternate perspective that can help you see a problem you could not catch as easily via a different measurement. (Like the HF noise above.) There is valid and there is useful.

Noise in the HF range like that will not be from physical resonances in walls, windows, etc. It would almost have to be electronic.

Have you tried to eliminate any ground loops? Is it possible there is any kind of volume-sensitive processing active in AVR or computer?


kenniGT

New Member
Thread Starter
Joined
Jan 29, 2018
Messages
7
Location
London,UK
AudiocRaver I think I have checked all possible noise sources - 'unfortunately' non of it was creating this issue, but finally correct result...accidentally I have found where is the problem, but the story is a bit strange.

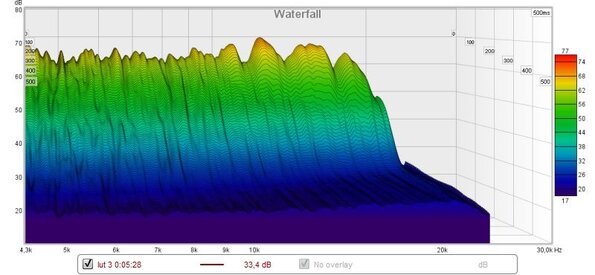

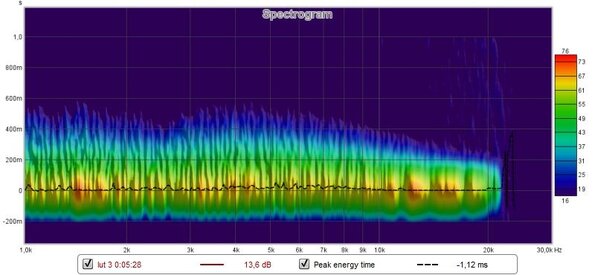

I have laptop dell xps 15 (1year old) , Umik1 is connected to laptop. Laptop send sweep signal to linn klimax streamer/dac via wifi (using linn songcast soft which can send any sound to my hifi from laptop) and than via xlr to amplifier. Simple setup. And here is the thing. There was something wrong with sweep signal delivered to speakers. I realized that when I measured laptop speakers (to see if I get the same anomaly) , and I realized that by the sound I heard. The sweep signal on laptop was continuous and waterfall was clean. When I was doing measurements via linn, sweep sound was going to the end, and repeating itself 3-4 times at very top. I thought all the time this is how sweep signal should sound. Now. After my laptop experiment I tried to go back to linn songcast stream. It did not work. REW could not see linn songcast as soundcard. I restarted REW couple times, switched on and off songcast and when it started to work I did measurement. And to my surprise, the sweep sound I heard from my hifi speakers was the same as I heard from laptop speakers. It was not looping back at the end anymore, hence normal results... I am new to REW so I did not know how correct sweep signal should sound, well, now I know :) No looping back at very top.

sucess.jpg sucess2.jpg

Last edited:

AudiocRaver

Senior Reviewer
Staff member
Joined
Nov 21, 2016
Messages
974
Location
North Carolina, USA
More
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
Very good! It was a bit of a first for me, glad you figured it out! Good detective work!
