Trimming unwanted content from REW frequency response measurements

[audiogb]

Hello

First post - excellent product and forum. I've searched for 'trim' but without luck.

In-box measurements for example after MIB correction, inevitably display unhelpful spl data far above the frequency of interest. Is there a facility in REW to truncate a frequency response at some selected frequency? After truncation, the spl should not drop to zero (which just creates another visual disturbance of the plot screen with a plummeting vertical spl line through other plots), but should just terminate at the final value, leaving that final value as it were 'in the air'?

Example attached - see ugly green MIB curve. If that data was truncated at 200 or 300Hz how much cleaner the display would be!

Many thanks.



[John Mulcahy]

Afraid not, sorry. Easiest workaround is probably to set the measurement end frequency for the range of interest when the measurement is made.



[audiogb]

Noted John.

If I export the green curve to a text editor and remove unwanted measurement lines, how will REW process the final data point? Will it just 'hang in the air'?



[John Mulcahy]

If you import it afterwards, yes.



[audiogb]

If you import it afterwards, yes.

Great. Many thanks.



[audiogb]

For the benefit of others, the workaround solution is extremely simple to implement.

Unbeknown to me, REW has a very fancy export routine for a measurement to a text file, which can then be reimported to REW as a new measurement and the source measurement deleted.

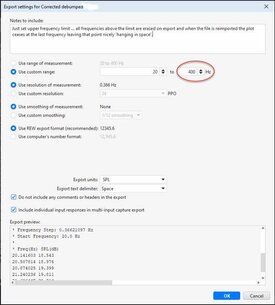

All you have to do is set the desired frequency response in the REW exporter facility like this:
