The Best Bang-For-Your-Buck TV Enhancement? Scenic Labs LX1 Bias Lighting Kit, a Full Review

Manufacturer & Model
Scenic Labs LX1 Bias Lighting CRI 95 6500K Simulate D65 White Bias Lights, MagicHome Wi-Fi Dimmer
MSRP
$15-$50
Link
https://www.biaslighting.com/products/lx1-bias-lighting-cri-95-6500k-simulated-d65-white-bias-lights
Highlights
Affordablity bias lighting with quality assurance built-in, 6500K light with a CRI 95, compatible with three different controls, immediate visual impact.
Summary
Scenic Labs LX1 Bias Lighting kit gives enthusiasts access to highly affordable, easy to install TV bias lighting. Adhering to high standards, the kit delivers reference-quality that improves black levels and contrast, and makes colors appear more vibrant. Installation is simple and the kit integrates with one of three controller units. Results speak for themselves, easing eye strain during low ambient light viewing sessions and improving perceptual qualities on the screen.

Whether you own the latest and greatest 8K OLED or an aging 720p plasma, there are several straightforward ways to coax better performance from your screen. Some are free tweaks you can and should make within your TV's menu system, while others are going to tax your wallet. Luckily, the subject of today's review – Scenic Labs' LX1 Bias Lighting kit – won't break the bank. For a mere $15-$50 (depending on length), you can boost your TV's performance with better perceived color, contrast, and black levels, while simultaneously giving your eyes and brain permission to relax during low ambient light viewing sessions.


Ocular Trickery?


Before we dissect the LX1 Bias Lighting kit, take a moment and study the image above. You'll note its background is shaded from dark to light, but what's going on with the grey bar in the middle? Is it shaded, too? Your better sensibilities likely know the bar is one solid color, but I guarantee your eyes disagree.

What you're seeing is an optical illusion, the same optical illusion that happens when a bias light illuminates a reference surface behind an object. In the case of our example, your eyes view grey as being darker when framed by a lighter reference background and lighter as that background darkens. The same thing happens when we add bias lighting to the backside of a TV. Blacks look blacker, contrast improves, and color – yes, color – looks more vibrant.

The President and Founder of Scenic Labs, Jason Rosenfeld, says impacts extend a bit deeper than this classic example. "Bias lights enhance perceived contrast," explains Rosenfeld. "So, this boosts highlights as well as shadows." To demonstrate, Rosenfeld provided another visual prop, adding, "The simulated 'dim surround' around the white square on the left will enhance the perceived brightness of the brightest part of the image on the left."



Outside of tricking your eyes, bias lighting also reduces eye strain and headaches associated with dark room TV viewing. When we kill the lights to set the mood or eliminate on-screen light reflections, our eyes are subjected to a large bright object that's constantly changing in intensity. The difference in luminance between the screen and the room is intensified by rapid shifts in brightness, all of which force our pupils to dilate constantly.

The result? You guessed it: eye fatigue.

Illuminating the wall behind a television raises the amount of ambient light in a room, which lightens the load on our eyes.


Don't Use Any Old Light


Now that we've established some principles of bias lighting, you’re probably wondering if a lamp placed behind your TV will do the trick.

Unfortunately, the answer is no.

The source of a bias light needs to be hidden from direct view, dispersing light equally around the edges of a TV for an even "halo effect.” Also, The Society of Motion Picture and Television Engineers (SMPTE) says bias lighting should approximate 10% of the maximum brightness of peak white levels on any given display. That means it needs to be dimmable, which is particularly noteworthy given the high levels of brightness modern LED strips can generate.

Color temperature is also a key component. Light straying too far from reference white (6500K) can cause a perceptual tug of war. If a light is too warm (trending toward yellow, orange, or red), images on a TV will take on a bluish appearance. If it's too crisp and loaded with blues, images will push toward a reddish appearance. And, if a light has a green or magenta tint, this will impact the perceived tint of the picture.

Reference white is a spectrum of light identified as D65, a color point that anchors professional TV calibrations and is the most accurate representation of natural daylight. This notion of natural daylight extends to another measurable component of lighting: the Color Rendering Index (CRI). When natural daylight strikes an object, our eyes see reflected light. For example, if you hold a ripe banana in natural sunlight, the banana absorbs every color within the light's spectrum but yellow. If you were to hold the same banana under a low-quality LED lamp with poor color rendering capabilities, it might look more orange than yellow!

CRI indicates the accuracy of a light's spectral composition and its ability to reveal true-to-life colors. It's measured using a 100 point scale, with values of 90 or higher considered to be excellent. That said, Rosenfeld says that CRI is a "somewhat outmoded measurement, noting that consumers should also pay attention to Television Light Consistency Index (TLCI) and TM30-15 values. "You can still go off of CRI," says Rosenfeld. "But it omits crucial values such as R9 (bold red) and R12 (bold blue). LX1 and MediaLight both perform even better than the competition when you factor in these values."


Meet the LX1 Bias Lighting Kit


LX1 Bias Lighting is a division of Scenic Labs, a company that also publishes the Spears & Munsil HD Benchmark and UHD Benchmark set-up discs and manufactures The MediaLight Bias Lighting System. LX1 is technically an affordable MediaLight alternative, but Scenic Labs says that affordability doesn't mean that quality and quality control have been sacrificed.

LX1 kits can be purchased in six different sizes, ranging from Extra Small (1 meter in length) to Extra Large (6 meters), and can be cut to fit your television's exact dimensions. Each kit is also compatible with three different dimming options (button dimmer, infrared remote dimmer, and MagicHome Wi-Fi Dimmer/App) and plug-in directly to a USB 2.0 or 3.0 port on the back of a TV.

Scenic Labs says the LXI Bias Lighting kit delivers simulated D65 white with a CRI of 95. It also carries an ISF lab certification of 6500K – a reassuring stamp of quality – and uses black LED strips as opposed to white (white strips can taint a light's coloring, especially as they age and yellow). Overall light output caps at approximately 400 lumens, which is significantly brighter than anything most applications will require.

The entire kit carries a 2 Year Warranty covering just about every possible claim scenario.


Unboxing


Scenic Labs sent me an Extra Large 5 meter (16.4 ft) LX1 Bias Lighting kit with a MagicHome Wi-Fi Dimmer for a 65" LG B6 OLED 4K TV. The kit and dimmer are sold separately, retailing for a combined $53.90.

Both components arrived in a FedEx envelope. The MagicHome Wi-Fi Dimmer, a block of double-sided tape, and an instruction slip were sealed in a see-through static-free bag, while the LX1 kit was packaged in a retail-ready resealable foil bag.

The LED strip was neatly wound within a movie reel style holder, accompanied by a 15" USB power cable and a small introductory leaflet. The bulk of installation instructions and troubleshooting tips can be found online at LX1.com/install and LX1.com/troubleshoot.


Installation


If you've handled a standard flexible LED light strip, then you have a general idea of what to expect with the kit. One side of the LX1 strip contains LED diodes, the other side is sticky, and one end terminates to heat-shrink tubing and a power cord. Overall, everything appeared to be of high quality.

Scenic Labs says the strip is best installed 2" from the edge of a TV’s frame, which I easily achieved without removing my display from the wall. After cleaning my TV's rear housing with rubbing alcohol, I used a ladder (and some patience) and had the entire kit installed in about ten minutes. Downloading the MagicHome app and integrating the Wi-Fi dongle with my network took another five minutes, which clocked the total amount of installation time in the 15- to 20-minute range.

The light strip's sticky surface provided plenty of grip but was forgiving enough that slight errors during installation were easily reversed and corrected. I was left with roughly one foot of excess lighting, which was easily clipped by scissors. The kit's online instructions provided all of the guidance needed for a smooth installation experience, and the kit has remained firmly affixed to my LG OLED for more than a month.



It just so happens that my living room's walls are a light neutral gray (Behr, 790E-2 Gentle Rain), providing an excellent backdrop for illumination. With the TV on and room lights off, I used the MagicHome app to dial back the LX1's output to roughly 10% of my TV's peak brightness. That exercise led to a setting of 45% brightness within the app.

The resulting glow of light was a welcomed addition to an otherwise darkened room. During the duration of this review, the light kit performed flawlessly, never dimming or flickering during use.


Impact


My OLED's black frame immediately popped to life during the first seconds of use, establishing itself as present and jet black. That alone was pleasing to the eye but not nearly as pleasing as the vibrant, easy-to-view image that graced my screen.

As described earlier in the review, black levels and contrast were noticeably improved when the LX1 Bias Light was engaged. It's tough, if not impossible, to capture this improvement with a camera (at least with my middling photographic skills), but I tried to illustrate visible differences during a recent World Series game. Lean in and let your eyes inspect the dark area directly over the manager's hat and you can see the difference in black levels. In person, the difference is striking, so much so that my wife, who possesses an ironic disinterest in AV tech, immediately applauded the improvements delivered by the LX1 kit.



The LX1 also magically made colors appear to be more vibrant – there's no denying it's ability to alter perception.

The impact of the kit on dark room viewing was notable. Gone was time spent adjusting ceiling lights to "just the right level" (they were left off) and annoying screen reflections were completely eliminated. I was left with a pleasing viewing environment. Eye fatigue and watching TV in low ambient light is something I've experienced in the past, and the LX1's steady glow made changes from dark scenes to images loaded with bright whites easy to handle.

As a bonus, the light kit turned on and off with my TV, and the MagicHome Wi-Fi controller remembered my last brightness setting. The app also allows for five brightness presets and integration with 3rd Party Services such as Alexa and Google Assistant. In other words, you can practically set it and forget it. Not all TV brands sever power to USB ports at power down, so your mileage may vary. Scenic Labs cites Sony Bravia TVs as one brand that won't cut power to the light kit when the TV is turned off – you'll need to turn the lights off separately.


Conclusion


Scenic Labs' LX1 Bias Lighting kit checks all of the right boxes.

Affordability? Check
Variety of sizes? Check
Fast shipping? Check
Quality construction and light output? Appears to be a check
Ease of installation and use? Check
Performance impact? Double-check
Reasonable warranty? That gets a check, too

For a small investment, you can give your TV viewing experience an impressive boost in performance. Blacks appear blacker, contrast gets an uptick, and colors look delicious and vibrant; all wins across the board. I'm so impressed that I plan to integrate LX1 kits with two other flat panels in my home – the impact of controlled bias lighting is that notable. Do yourself a favor and pick one up – it’s a no-brainer buy.

Scenic Labs, post-review, was kind enough to extend AV NIRVANA an affiliate link. If you're considering purchasing a kit and would like support our community, please purchase by clicking here.






Editor's Note: Recently, the Founder and President of Scenic Labs,LLC, Jason Rosefeld, joined AV NIRVANA for a live chat. He led us DEEP into the jungle of Bias Lighting with lots of rich detail about how and why it works, while also showing us measurable proof that not all bias lighting is the same. If you want to learn a lot about visual science and the science behind light, kick back and enjoy!



LX1 Bias Lighting CRI 95 6500K Simulated D65 White Bias Lights Specifications
•6500K (ISF-certified for accuracy)
•Color rendering index (CRI) 95
Spectro Report (.PDF)
•Connects via USB 3.0 to your TV (shorter lengths from 1m-4m work with USB 2.0)
•USB and DC connectors for limitless connectivity and controller options
•Includes 15 inches of power cable. (If your USB port is further away from the edge, you may need an extension cable. We offer an approved 0.5m extension for $7.95. One is also included at no charge with our MediaLight Mk2 Flex)
•Pair the LX1 with a dimmer (sold separately), to create a complete bias lighting system
•2 Year Warranty


Last edited:

Todd Anderson

Editor / Senior Admin
Staff member
Thread Starter
Joined
Jan 20, 2017
Messages
9,252
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Hmm.., you got me thinking about trying this now…

It's legit, for sure. If you buy, consider the affiliate link at the end of the review. ;-)


Louis Sipes

Registered
Joined
Feb 22, 2022
Messages
7
More
Preamp, Processor or Receiver
AVA Omegastar Ec
Main Amp
AVA 240
Additional Amp
Forte Model 3, Sx-1050
DAC
Denafrips Ares II
Front Speakers
Elac Debut Reference or Elac Unifi 2.0 or Sierra 1
Subwoofers
Hsu VTF 2 mk3
Other Speakers or Equipment
Ascend Acoustics Sierra, Naim Ariva,
Video Display Device
Sanyo plasma model ?
Screen
42”
Streaming Equipment
Echo Link
Streaming Subscriptions
Amazon music
Satellite System
YouTube tv
New here. Just read this. I have an ancient Sanyo plasma that I would like to keep alive for as long as possible. Would I be reducing the brightness even more with one of these lights? If so I’m in.


Todd Anderson

Editor / Senior Admin
Staff member
Thread Starter
Joined
Jan 20, 2017
Messages
9,252
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
New here. Just read this. I have an ancient Sanyo plasma that I would like to keep alive for as long as possible. Would I be reducing the brightness even more with one of these lights? If so I’m in.

Technically speaking, yes it can allow you to reduce brightness


ebrumbaugh

Member
Joined
Jun 30, 2021
Messages
37
Location
Rapid City, South Dakota
More
Preamp, Processor or Receiver
Denon AVR-3700H
Main Amp
Emotiva XPA-11 Gen 3
Additional Amp
Emotiva XPA-2 Gen 3
Other Amp
PremaLuna Evo 300 Tube Integrated Amp for 2-chnl
Computer Audio
iTunes via AppleTV 4K
DAC
Denafrips Aries II R2R DAC
Universal / Blu-ray / CD Player
Sony UBP-X800M2
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Bookshelves
Surround Back Speakers
Polk Audio LSi M702 f/x
Front Height Speakers
Polk Audio MC80 in ceiling
Rear Height Speakers
Polk Audio MC80 in ceiling
Subwoofers
Dual SVS PB-3000 Pros
Other Speakers or Equipment
Polk RTi A9s / GoldenEar Triton Fives & Aon 2s
Video Display Device
Sony XR-77A80J
Streaming Equipment
AppleTV 4K, StreamTV
Streaming Subscriptions
Netflix, AppleTV, Discovery+, Prime, Curiosity Stream, HBO Max, Hulu, StreamTV, Qobuz, and Apple Music
Other Equipment
Valencia Tuscany XL theater seating;
Thanks for the article ... after reading it, I ordered a 4-meter kit (doing 3-sides), with wireless dimmer for my 77A80J. I was concerned about applying the LED strip to the back of my OLED panel (the panels on these OLEDS are far larger than the plastic housing on the back of the TV), but after chatting with them, they recommended adding a tape strip on the panel, then apply the LED strip They provided a roll of tape for free in their accessories section, just be sure to add it at the time of your order. I'd thought blue painters tape would work, but they said their tape was a bit stronger and would come off just as easy ... looking forward to setting it up.


Todd Anderson

Editor / Senior Admin
Staff member
Thread Starter
Joined
Jan 20, 2017
Messages
9,252
Location
Balt/Wash Metro
More
Preamp, Processor or Receiver
StormAudio ISP.24 MK2
Main Amp
Emotiva XPA-5
Additional Amp
Emotiva XPA Gen3 2.8 multichannel amp
Other Amp
Denon X8500H
Computer Audio
AudioEngine A2+
DAC
THX ONYX
Universal / Blu-ray / CD Player
Kaleidescape TERRA, OPPO UDP-203, Panasonic UB9000
Front Speakers
GoldenEar Technology Triton One.R
Center Channel Speaker
GoldenEar Technology SuperCenter Reference
Surround Speakers
SVS Ultra Surround
Surround Back Speakers
SVS Ultra Bookshelf
Front Height Speakers
SVS Prime Elevation x4 (Top Front, Top Mid-Front)
Rear Height Speakers
SVS Prime Elevation x4 (Top Middle, Top Rear)
Subwoofers
dual SVS SB16s + dual PSA XS30s
Other Speakers or Equipment
Behringer 1124p; Aura Bass Shaker Pros; SuperSub X
Video Display Device
JVC NX7
Screen
Seymour Screen Excellence, Enlightor NEO AT Screen
Streaming Equipment
iFi Audio Zen Blue
Streaming Subscriptions
Qobuz, TIDAL, Spotify, ROON
Other Equipment
LG Electronics 65-inch B6 OLED, Sony 65-inch X900F, ZeroSurge 8R15W x 2, ZeroSurge 2R15W x 2
Please report back after you have it installed @ebrumbaugh, I think you're going to be blown away by its impact. Super important to follow brightness instructions... but once you get it dialed in, you're in for a treat.


ebrumbaugh

Member
Joined
Jun 30, 2021
Messages
37
Location
Rapid City, South Dakota
More
Preamp, Processor or Receiver
Denon AVR-3700H
Main Amp
Emotiva XPA-11 Gen 3
Additional Amp
Emotiva XPA-2 Gen 3
Other Amp
PremaLuna Evo 300 Tube Integrated Amp for 2-chnl
Computer Audio
iTunes via AppleTV 4K
DAC
Denafrips Aries II R2R DAC
Universal / Blu-ray / CD Player
Sony UBP-X800M2
Front Speakers
SVS Ultra Towers
Center Channel Speaker
SVS Ultra Center
Surround Speakers
SVS Ultra Bookshelves
Surround Back Speakers
Polk Audio LSi M702 f/x
Front Height Speakers
Polk Audio MC80 in ceiling
Rear Height Speakers
Polk Audio MC80 in ceiling
Subwoofers
Dual SVS PB-3000 Pros
Other Speakers or Equipment
Polk RTi A9s / GoldenEar Triton Fives & Aon 2s
Video Display Device
Sony XR-77A80J
Streaming Equipment
AppleTV 4K, StreamTV
Streaming Subscriptions
Netflix, AppleTV, Discovery+, Prime, Curiosity Stream, HBO Max, Hulu, StreamTV, Qobuz, and Apple Music
Other Equipment
Valencia Tuscany XL theater seating;

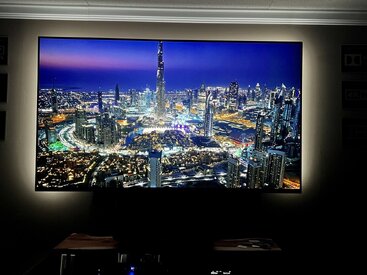

I posted this yesterday on the live stream thread, but wanted to follow up here too ... attached is a picture of my initial setup on a XR-77A80J ... so far, really like it. Still playing with the app a bit, but it is a nice tweak for my basement room theater. I went with just the 3-sides as I didn't want to light up my gear or wiring behind the rack, and I added a strip of tape to the back of the OLED panel, then put the LED strip on it. Tape was free, listed under accessories, just need to add it to your order at the time of purchase. Overall first impressions ... impressive.


Attachments

  • Bias Lighting.JPG
    Bias Lighting.JPG
    330.9 KB · Views: 38

Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
I am about to cover my large white screen behind where my 98" Sony will sit. I plan on covering a frame to simply hang the cover on in case I decide to take it down later. I may zap some screws in each side to make sure it doesn't vibrate. The plan was to use Baritone black velvet, but if I decide to use bias lighting, is there a recommendation for the wall color behind the TV set?

Maybe I should just leave the white screen.

Last edited:

Eric SVL

Member
Joined
May 1, 2017
Messages
173
More
Preamp, Processor or Receiver
Denon AVR-X4500H
Main Amp
Hypex NCore NC252MP
Computer Audio
iLoud MTM
DAC
Micca OriGen G2
Universal / Blu-ray / CD Player
Sony PS3, PS4
Front Speakers
Buchardt S400
Surround Speakers
Polk LSiM 702
Front Height Speakers
Focal Chorus OD 706 V
Rear Height Speakers
Focal Chorus OD 706 V
Subwoofers
Rythmik
Other Speakers or Equipment
ELAC Debut Reference DFR52
Screen
Samsung PN64H5000
Streaming Equipment
Google Chromecast
Streaming Subscriptions
GIK Tri-Traps
Bias lighting would demand a neutral wall, ideally white (255, 255, 255). Since none of us have a perfect white wall, we do the best we can. I could see neutral grays working but you'll need to up the power on the lights, which could produce spotlighting. I've reduced that by using a COB type strip instead of these larger LEDs which are spaced out.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Bias lighting would demand a neutral wall, ideally white (255, 255, 255). Since none of us have a perfect white wall, we do the best we can. I could see neutral grays working but you'll need to up the power on the lights, which could produce spotlighting. I've reduced that by using a COB type strip instead of these larger LEDs which are spaced out.

The set will be directly in front of the white screen, although there won't be a lot of white above it.



Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
The top of the 98" TV will be about an inch or so above the white screen. There will be some white on each side. I think the best thing to do would be to frame up that entire area in one solid color.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
That area is 5ft high x 11ft wide... need something paintable that I can frame. If it's by the yard the max width I see is 63"... so it would have to stretch a few inches. I'm guessing canvas would be the best to use. I guess I could buy a 6' x 9' canvas drop cloth... cut, frame, and paint.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Got the bias kit ordered... thanks for the recommendation. Looking forward to seeing how well it performs.


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
I would be very careful in handling the light strip. The connector box cable that connects the strip to the box broke on me, and I barely moved it. You can't put any pressure on it, or it will snap. There was nothing but the tape holding it together... wouldn't turn on. I'm not sure I can splice it being where it's at... and I ain't pulling that set back down after what we went through to get it up there. When it comes down, it will be to sell it to someone else. I can't get to the top center back of the set, not even with a ladder, because the equipment rack and these 158lb amps on each side prevent it, which is why I mounted the LED strip before lifting the setup and on the stand.

I've used a LOT of LED strips... at our shop, in our cases at both stores, on our outdoor patio, and on our cabin porch... never had one snap like this.




Last edited:

Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
I got that cover off. Maybe I can pull the end of the strip off the back of the set and get it out far enough to the side to resolder it... if that would work.



Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,191
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
Kaleidescape | FireCube | Lenova X1 - Intel NUC for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
While not the easiest to solder... somehow, I got lucky and got it working. I think I'll black cover the sides over to a certain point where the smoothness of the light ends... keep it all about the same on the sides and the top. Of course, it is not nearly this bright with the set on, but this is at setting 10 in complete darkness.


Last edited:
Top Bottom
