Say hello to my little friends

[Kakkadu]



[NBPK402]

Are those Lil Wreckers?



[Kakkadu]

Are those Lil Wreckers?

They're completely my own design. They produce 130+db @20hz with around 1% THD.



[Jazzman53]

I'm drooling over your work shop... (oh yeah... the subs are awesome too).



[Kakkadu]

I'm drooling over your work shop... (oh yeah... the subs are awesome too).

It's actually from a local furniture factory, I know the owner and he's a hi-fi enthusiast also. Own's large ESL:s...
The holes and the taps were CNC machined...



[Christopher]

Kakkadu,
Awesome. And there is a guaranteed engineering job on The Death Star for you. The forklift is to move them, yes? Handles-schmandles... I'm guessing 300+lbs each? I've sailed boats smaller than those things. Those drivers are clearly HUGE, and that's A LOT of "MFD" (Mutha' Frukkin' Denseboard). I've just finished some nice, well-braced (but comparatively miniature) 22" x 11" x 10" three-way speakers and they weigh 32 lbs each WITHOUT drivers. I'm a professional builder with a great shop and it was still a MASSIVE, 50 hour project, so...Chapeau!
This level of undertaking makes one realize how cheap (and/or expensive), light, commercially-built speakers are hard to do correctly given how much the boxes flex, bend, and sing at random frequencies. I have yet to work on active crossovers, etc. Hrmph
And yikes! 130dB at 20Hz is ear-nose-eye-bleed territory. Please be careful!!!



[Jazzman53]

May I suggest a name for your little friends?

[the] INCONTINATORS



[NBPK402]

Active crossovers are the way to go IMO. I am going to remove the crossovers in my RP160Ms and use miniDSP 2x4HDs.



[Kakkadu]

Kakkadu,
Awesome. And there is a guaranteed engineering job on The Death Star for you. The forklift is to move them, yes? Handles-schmandles... I'm guessing 300+lbs each? I've sailed boats smaller than those things. Those drivers are clearly HUGE, and that's A LOT of "MFD" (Mutha' Frukkin' Denseboard). I've just finished some nice, well-braced (but comparatively miniature) 22" x 11" x 10" three-way speakers and they weigh 32 lbs each WITHOUT drivers. I'm a professional builder with a great shop and it was still a MASSIVE, 50 hour project, so...Chapeau!
This level of undertaking makes one realize how cheap (and/or expensive), light, commercially-built speakers are hard to do correctly given how much the boxes flex, bend, and sing at random frequencies. I have yet to work on active crossovers, etc. Hrmph
And yikes! 130dB at 20Hz is ear-nose-eye-bleed territory. Please be careful!!!

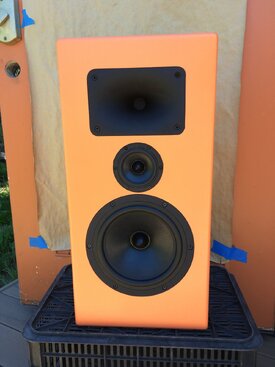

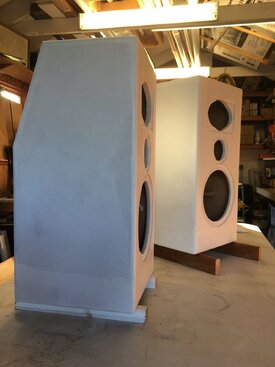

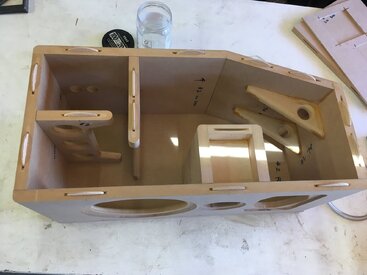

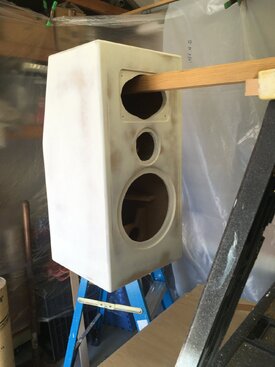

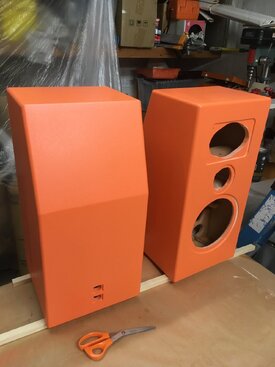

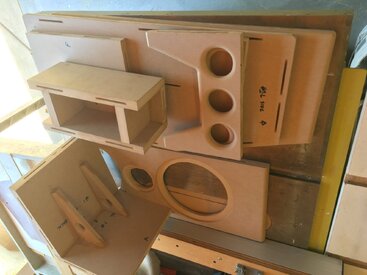

View attachment 32328View attachment 32330View attachment 32331View attachment 32333View attachment 32335View attachment 32327

Very nice Christopher. Do you have measurement graphs?



[Kakkadu]

May I suggest a name for your little friends?

[the] INCONTINATORS

Heh, funny coincidence. My friend owns a strip club which is registered as 'incontinent ltd'

/edit: And don't ask if I found this out from my billing history



[Kakkadu]

Active crossovers are the way to go IMO. I am going to remove the crossovers in my RP160Ms and use miniDSP 2x4HDs.

I would leave a capacitor to the tweeters just in case your MiniDSP setup gets corrupt or you connect the cables wrong by accident. Without caps the tweeters will blow extremely easy in this scenario.



[Bpape]

Very nice! I just got rid of my Servo Drive since I downsized my home. It was a beast but not THAT loud! Looking forward to pics of them in place.
