Rew eq use today experienced clipping

[Ubik2020]

Hi all, with your advises all went smooth except today.

I use moving mic measurememt with success and end up with filters for fullrange not only below 200hz. I only cut frequencies and never boost. Compared to the rew suggested level for eq i decrease a couple of db to engage more peaks and my house curve Is set +1.8 on lows to have about +6db at 40hz and +1.5 decrease on highs starting at 3khz to have no sibilances. Overall It sound very good to me but... Today i bought a 32bit dxd record and on various tracks of It i have clipping on midbass ,when musical peaks arise. It happens sporadically on few tracks.
I have imported one of those tracks in reaper and it sounds very hot , with the highest peaks at -0.4db which Is unusual for my experience. I have another 32bit dxd and It Is recorded with peaks at -5db. Not necessary to Say It sounds perfect.

Is my issue coming from my eq attitude or Just the record too hot? What advises? All other files i play at 24bit ,they sound perfect.
Thanxs



[John Mulcahy]

How are you applying the EQ? Easiest would be to bypass your EQ and see if the problem still occurs.



[Ubik2020]

Hi John, its with the exellent crave eq vst i load in audirvana. With eq off the clipping goes almost completely away .i think its a combo issue.anyway the dxd Is very very hot being not the standard lufs i usually hear .It has peaks of -0.4 which Is surprisingly at the border of risks i believe.
I think majority of files stops at -2db to be safe camp



[Ubik2020]

Maybe few tips to use rew eq avoiding to put too much pressure on amplifier?maybe doing eq , i have reduced the headroom too much? Although its the First time i have clipping.maybe is this record specific. If you want i can send you the file for your test?



[ddude003]

It appears that the Crave EQ does some kind of "automatic gain compensation"... I would suggest you have a look at your over all gain structure if you are having issues with clipping... I would suggest that you find an Mastering EQ that allows one to adjust input gain as well as adjust output gain...

BTY, I use Audirvana with the Hang Loose Convolver + FIR filters for Room Correction DSP as well as one of several Mastering EQs to add some additional color to taste... See my "more" for some hints...



[Ubik2020]

Great tip!thanxs a lot



[Ubik2020]

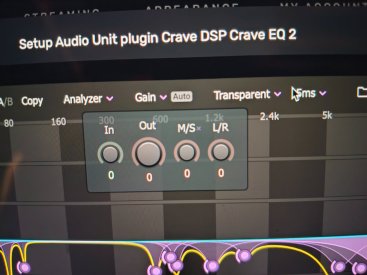

See picture.auto gain can be disabled and this Is the standard setting. As i only cut frequencies i suppose should leave in and out likes they are now?



[Ubik2020]

I put -5db into out field and clipping Is gone.
It seems i am done although ddude set up makes me curious what i can gain with It. If web literature Is available please point me to that so i can learn "another side of the Moon"



[ddude003]

A sip from the fire hydrant...

And https://accuratesound.ca/hang-loose-dsp-software-suite/ see the Hang Loose Convolver and maybe the Hang Loose Host depending on your computer and kit...

Once you have applied Digital Room Correction via the Hang Loose Convolver + FIR you can layer your Crave EQ or other mastering quality EQs on to fine tune and/or color to taste...



[Ubik2020]

Just registered and received the software.now dinner time,tomorrow all fun":-



[ddude003]

The next thing you will need to figure out is the creation of Digital Room Correction FIR filters to use in the Hang Loose Convolver...

Both serko70

and moedra https://www.avnirvana.com/threads/convolution-room-correction-and-room-curve.14005/page-2
have posted methods, here on AVNivana, to use REW and/or REW + rePhase both being free tools...

And then there are $$$ solutions like Acourate, Audiolense, Focus Fidelity, Eclipse Audio FIR Designer...
