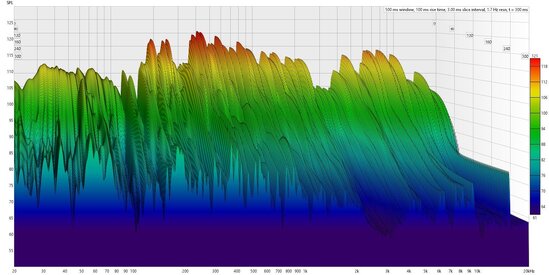

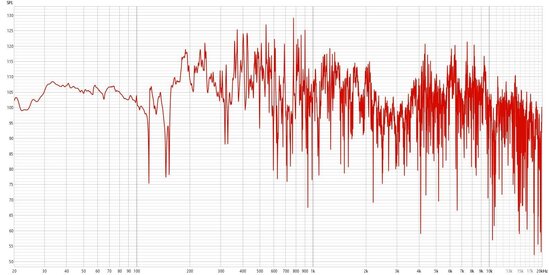

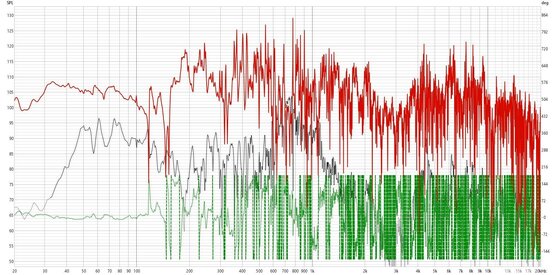

Hi everybody! I just made a portable speaker for singing. I found out about this REW software, I'm not familiar with sound so I asked everyone to look at it and give me feedback on my speakers. Well, thank you to the creator of REW software and this forum. My circuit is 300w, 1 bass 30 coil 65 (4ohm), 1 treble 450 (6ohm) (I use 2.2uF capacitor and 1 10w 10ohm resistor // treble speaker). The box is 40cm wide, 60cm high, and 35cm deep. 18mm thick board. 1 vent 8cm diameter and 25cm long. I put the speaker in the room to test near the computer and the mic that comes with the camera (the mic is about 1m away from the speaker). I got some pictures like this. Everyone knowledgeable about sound please give your opinion on the sound quality of your speakers and how to fix it. I don't know why the 3kzh place has dropped so deeply. I'm very happy to make my own speaker set to play music and sing. Although the components are cheap, the sound is very loud. Thank you ^^ I am Vietnamese and use google translate software, please understand
