Old 80's Klipsch speakers into 'Mod' DIY Aperiodic speakers

RShark

Moderator
Staff member
Thread Starter
Joined
Apr 9, 2021
Messages
19
Location
Denver CO
More
Preamp, Processor or Receiver
Yamaha
Main Amp
Yamaha
Additional Amp
Rotel
Other Amp
Aiyima A07
Computer Audio
Aiyima DAC-A5-Pro / Aiyima Tube T7
DAC
Aiyima DAC-A5-Pro
Front Speakers
DIY Fostex BK16 with Seas Prestige coax
Front Wide Speakers
ADS 400L
Subwoofers
Kicker 2x12" in SKAR ported chamber
Other Speakers or Equipment
Bookshelf spks, DynAudio, Diamond, B&W, Klipsch
Video Display Device
AMD Fury II
Screen
LG

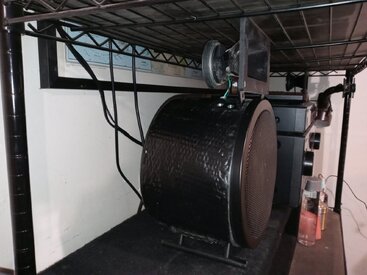

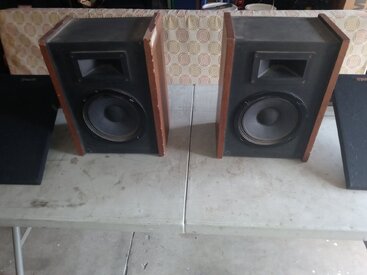

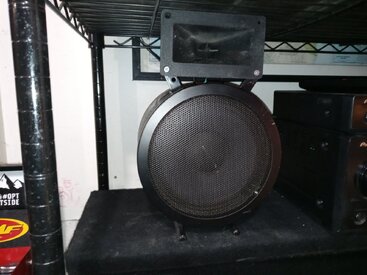

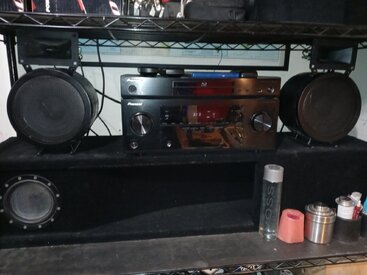

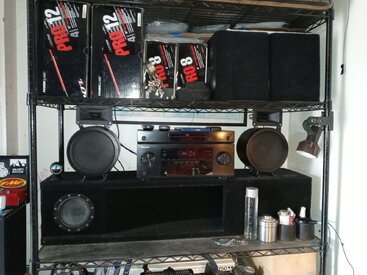

Bought a set of very old Klipsch speakers from a public radio station and the enclosures were beat up and the grills looked like they had cats. Had some aperiodic chambers with grills that had built for a car project 20 years ago and never used. Had the thought to use the chambers as a replacement for the bad enclosures of the Klipsch. Went to Lowes and found cabinet handles to use for the feet and some angle pieces to hold the tweeters. Painted the chamber black and mounted everything and have been very impressed with them. They now have the speed of a smaller speaker (6.5/5.25) but can still go low when needed, I personally still get fatigue from metal dome tweeters but other then that am very happy with them. Yes it is part of my garage system and yes will talk of the BLH sub below it in a different thread someday. You can barely see the aperiodic vent at the bottom of the chamber.


Attachments

  • 20220617_135552.jpg
    193 KB · Views: 20
  • 20230212_193705.jpg
    254.2 KB · Views: 22
  • 20230212_193714.jpg
    212.7 KB · Views: 17
  • 20230212_193727.jpg
    201 KB · Views: 19
  • 20230227_121704.jpg
    289 KB · Views: 20

John Coles

New Member
Joined
Oct 2, 2018
Messages
7
Location
Seattle, WA
More
Preamp, Processor or Receiver
Yahama RX-V970 receiver
Main Amp
Marantx MA500 monoblocks
Additional Amp
Yahama RX-V970 receiver
Universal / Blu-ray / CD Player
Sony and Microsoft Xbox One
Front Speakers
Martin Logan ESL
Center Channel Speaker
Martin Logan
Surround Speakers
Dayton Audio
Surround Back Speakers
Dayton Audio
Subwoofers
Klipsch 12-inch and 10-inch
Other Speakers or Equipment
Behringer DEQ 2496 equalizer
Video Display Device
Panasonic 65-inch
Streaming Subscriptions
TIDAL
Netflix
Amazon Prime
HBO Max
Satellite System
DirecTV 4K
At what frequency is the crossover between the woofer and the horn midrange? I have the components of a pair of 70s Speakerlab Ks (Klipschorn copies) that I'm thinking of reconstituting into a different configuration myself.


RShark

Moderator
Staff member
Thread Starter
Joined
Apr 9, 2021
Messages
19
Location
Denver CO
More
Preamp, Processor or Receiver
Yamaha
Main Amp
Yamaha
Additional Amp
Rotel
Other Amp
Aiyima A07
Computer Audio
Aiyima DAC-A5-Pro / Aiyima Tube T7
DAC
Aiyima DAC-A5-Pro
Front Speakers
DIY Fostex BK16 with Seas Prestige coax
Front Wide Speakers
ADS 400L
Subwoofers
Kicker 2x12" in SKAR ported chamber
Other Speakers or Equipment
Bookshelf spks, DynAudio, Diamond, B&W, Klipsch
Video Display Device
AMD Fury II
Screen
LG
At what frequency is the crossover between the woofer and the horn midrange? I have the components of a pair of 70s Speakerlab Ks (Klipschorn copies) that I'm thinking of reconstituting into a different configuration myself.
Hi John, sorry but the original setup was the crossover board glued to the speaker wire push connector base and I just used the original as was in the new chamber and I never looked at the values to check. They are a pain to take apart to look at but will look for any information in other ways. Here (hope this link does cause me to be expelled) the pics look like the right thing but seems like someone has an issue with one of the measurements. Good luck, had some old Speakerlabs long long ago and really enjoyed them at the time.

Klipsch Tangent 10 were the speakers I used;


kevinp

Moderator
Staff member
Joined
May 4, 2020
Messages
21
Location
Orange County California
More
Preamp, Processor or Receiver
Onkyo TX-NZ50
Main Amp
Onkyo TX-NZ50
Additional Amp
Mark Levinson ML-3
Other Amp
2 x Behringer NX6000D
Universal / Blu-ray / CD Player
Samsung UBD-K8500, Sony
Front Speakers
M&K S150-THX,
Center Channel Speaker
M&K S150-THX
Surround Speakers
M&K S-100B
Front Height Speakers
Klipsch CST-5800-C II
Subwoofers
2 x GSG BTS 21" with miniDSP 2x4 HD
Other Speakers or Equipment
Apogee Duetta II, Klipsch Heresy, Jamo ART
Video Display Device
Pioneer Pro-FPJ1
Screen
120" Draper Premier M1300
Streaming Equipment
Apple TV
Other Equipment
Hisense 100U8K flat panel television
Hi RShark,
Love the ingenuity. Great repurposing of an old speaker to a new usable use. Brilliant!
