Manually setting delay

[Robert Randolph]

The loopback is not adjusting the delay time correctly for me. It reports no delay, however it is clearly approximately 8 samples off consistently on the scope.

This is a big deal for the measurements that I am doing. Is there a way to manually adjust the timing of the return signal relative to the test?



[John Mulcahy]

No, but measurements can be manually shifted using the controls on the Impulse graph.



[Robert Randolph]

This does not seem to fix issues with the other measurements though.

My measurement is showing a consistent group delay and phase rotation due to this, and it's problematic for publishing measurements.

Am I perhaps misunderstanding something somewhere?



[John Mulcahy]

The adjustment is individual for each measurement. If all have the same timing offset the adjustment will need to be applied to each. REW doesn't have a global timing adjustment to apply to new measurements, though it is on the todo list to consider.



[Vladimir_1953]

Hi!

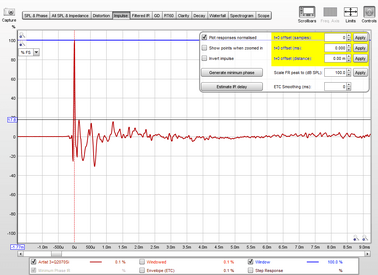

I had the same problem - a large distance from the test pulse to the measured one so the unfolded phase was not visible. I used the automatic mode - the button " Estimate IR Delay ". Time can be adjusted manually in the window " t = 0 offset (ms) "
