Looking for input on my config and why I *might* be lacking bass.

djdanko1

Registered
Thread Starter
Joined
Jan 9, 2023
Messages
11
I'm hoping for some clarity on this. I've recently been questioning my sub output as I would expect it louder. I do feel movies sound decent, but when I am listening to heavy bass music, I feel it is lacking. Even looking at the subs, I don't feel like they are moving as much as I would expect. I am a lot more familiar with car audio than HT, so maybe that is it. My car was very bass heavy pushing 145db at the window. Maybe I am just deaf lol

I am running Audyssey from my Denon AVR with a miniDSP to time align and EQ my subs. I did this a while ago and haven't really messed with it since. AVR defaulted to -7 for the sub level, but I have been playing it at -3 with DEQ on.

I used REW to develop the target curve which was at 75db. I tried to build a target curve with it around 10db higher at 20hz compared to 100hz. I think the end result was closer to 6-7db higher.

I am running 2- HSU VTF 3 MK5s with both ports open EQ2. One sub is front left of the room and the other is rear right of the room. My room is fairly large and not a dedicated room. It doesn't close and the right side opens to the basement stairs, another room and the bathroom.

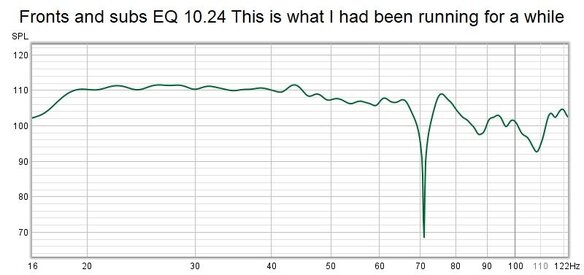

I did some testing tonight and attached is the graph I got. In the past I got rid of that dip around 70hz by adjusting the sub distance a few feet, but I didn't have a chance to do that before the kids got home. To me that should give me a pretty good sound. I've attached some of the other graphs, from previous testing. To me I should be getting a good sound, but again I feel it's lacking. I've also tried other sub locations like both up front and this can be the best response.

I think my next step is to re-run audyssey to get closer to a -11 trim and then bump that up to -5 to -3 and go from there. If i need to add more gain at the sub I will. Any other tips suggestions



Denon 3700h
Nvida Shield pro or laptop as source
Mini-DSP HD


Attachments

  • My current config.jpg
    My current config.jpg
    42.1 KB · Views: 40
  • 3522134-06b0e007893b1da0f7cf1443d5ea948f.png
    17.4 KB · Views: 38
  • 3522133-c1612b4128404e0637bba8c96bc514ae.png
    18.3 KB · Views: 30
  • 3522172-23c1e7e19930be566b5b24fa0f737201.png
    26.1 KB · Views: 28
  • 3522171-b9cd696907eb8c7eadf3218f37b0cefd.png
    27.6 KB · Views: 25
  • 3522170-4bd0cd31ac03775c4f3dd51ea6b8c0e3.png
    25.2 KB · Views: 38

sam_adams

Member
Joined
May 23, 2017
Messages
283
Our hearing is less sensitive at lower frequencies—search for Fletcher-Munson curves to understand this effect. To compensate, you should apply what is commonly referred to as a 'house curve' to boost the bass response at lower frequencies to compensate. Don't overdo it to the point where you exceed the Xmax of the subwoofer—usually defined as the point where the THD is ten percent—at higher volume levels.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
621
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer
The easy answer to “need more bass” is to simply turn up the subs, via the AVR’s menu or the subs directly.

As mentioned, a house curve with a slope down starting at 25-30 Hz might make a difference.

Unfortunately, except for the frequency response graph, your pics are too tiny to make anything out of.

Regards,
Wayne


djdanko1

Registered
Thread Starter
Joined
Jan 9, 2023
Messages
11
I am not sure why the images got so small. My apologizes and thanks for the info.
