Hello
I have also posted this on gearslutz forum.
I need some help with setting up Room EQ Wizard on my macbook pro..I think it is a bug that prevents it from working correctly on my system. I have downloaded the latest version REW V5, 19 Beta 4. When opening the "measure" box inside the program, for some reason, the "end freq" in hz box is set to 20 hz as default, and when changing it to say 22,000 hz and click on the "start measuring" button, it just jumps back to 20 hz. It does not change if I leave the marker inside the box nor insert it in another box, or hitting just enter. I followed the exact instructions in this video, though I have skipped the loopback calibration of my audio interface so far:

The version I downloaded (Mac OSX) does not look exactly like that windows version in the video either. Instead of just left and right input channels, mine has one "In" and a "Ref In", and it appears that the program is listening to the wrong input. (In channel).
I have got a Motu Ultralite mk3 hybrid audio interface connected through firewire and the mic is the Behringer ecm8000 btw. OS is Mavericks. In the preferences menu I have selected the Motu as both input and output device.

Marius


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,006
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
FireCube for movies and Lenova Carbon X1 for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Hi Marius... I believe you are in the minority when it comes to REW and Mac OSX... not that there are not users, but they are few. I am not sure anyone but John can help you right now, so we'll try to get him to look at it for you. I'll poke him.

Regards,
Sonnie


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,198
There are quite a few OS X users, around 30% of the REW userbase. Can you post a screenshot of your Measure dialog? Something to try is resetting all the preferences in case something has become misconfigured there, to do that use the Delete preferences and shut down entry in the Preferences menu then restart REW, you will need to reselect the input and output.


mariuste86

Registered
Thread Starter
Joined
Apr 19, 2017
Messages
7
Hi thanks both of you for the feedback. John, I will try to do what you are asking and getting back asap.
Marius


mariuste86

Registered
Thread Starter
Joined
Apr 19, 2017
Messages
7
Hello again, I get an error saying I cant upload attachments because I have not enough posts yet on this forum..how many posts do I need for that?

L

Leonard Caillouet

Guest
Actually, it was defaulted to 10, but we have changed it to 1. We want people to be able to contribute immediately if they are going to participate in the forums.


mariuste86

Registered
Thread Starter
Joined
Apr 19, 2017
Messages
7

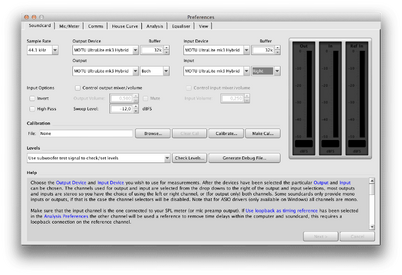

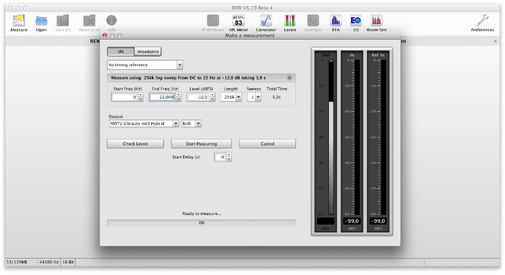

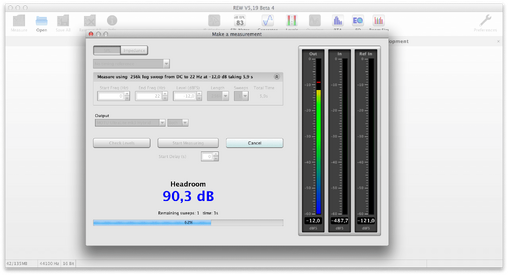

Attached some screenshots on what is going on. I did not have any sound on input this time, same thing happening regardless of that. Like you see in the measure box, I leave the marker in the box after inputting numbers, then hit "start measuring", next photo is what happens. Silly I know, but I have tried everything.


Attachments

  • Screen Shot 2017-04-20 at 01.31.02.png
    Screen Shot 2017-04-20 at 01.31.02.png
    96.6 KB · Views: 70
  • Screen Shot 2017-04-20 at 01.36.30.png
    Screen Shot 2017-04-20 at 01.36.30.png
    135.2 KB · Views: 76
  • Screen Shot 2017-04-20 at 01.39.48.png
    Screen Shot 2017-04-20 at 01.39.48.png
    148.7 KB · Views: 67

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,198
I think perhaps the comma is being interpreted as a decimal delimiter based on your locale, have you tried just entering 22000 without any comma?


Sonnie

Senior Admin
Staff member
Joined
Apr 2, 2017
Messages
5,006
Location
Alabama
More
Preamp, Processor or Receiver
StormAudio ISP Elite 24 MK3 Processor
Main Amp
McIntosh MC1.25KW Monoblock Amps
Additional Amp
StormAudio PA 16 MK3
Computer Audio
Intel NUC w/ Roon ROCK
Universal / Blu-ray / CD Player
Panasonic UB9000 4K UHD Player (for media discs)
Front Speakers
RTJ 410
Center Channel Speaker
MartinLogan Focus C-18
Front Wide Speakers
JTR Neosis 110HT
Surround Speakers
JTR Neosis 210RT
Surround Back Speakers
JTR Neosis 210RT
Front Height Speakers
JTR Neosis 110HT-SL
Rear Height Speakers
JTR Neosis 110HT-SL
Subwoofers
JTR Captivator 2400 x6
Other Speakers or Equipment
VTI Amp Stands for the Monoblocks
Video Display Device
Sony 98X90L
Remote Control
Universal MX-890
Streaming Equipment
FireCube for movies and Lenova Carbon X1 for Roon
Streaming Subscriptions
Lifetime Roon Subscription
Tidal
qobuz
Netflix
Amazon Prime
Satellite System
Dish Joey 4K
Other Equipment
Zero Surge 8R15W-1 | Salamander Synergy Equipment Stand
Hello again, I get an error saying I cant upload attachments because I have not enough posts yet on this forum..how many posts do I need for that?
Sorry for the inconvenience... we now have it set so that you only need one post to upload an attachment. You can actually copy and paste directly into the post message pane.


mariuste86

Registered
Thread Starter
Joined
Apr 19, 2017
Messages
7

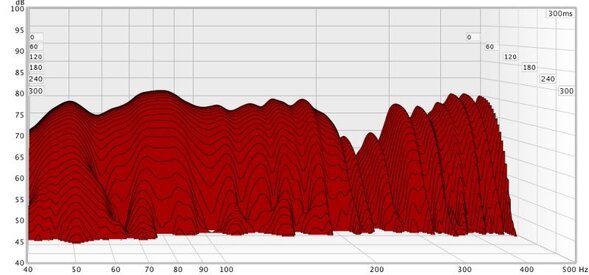

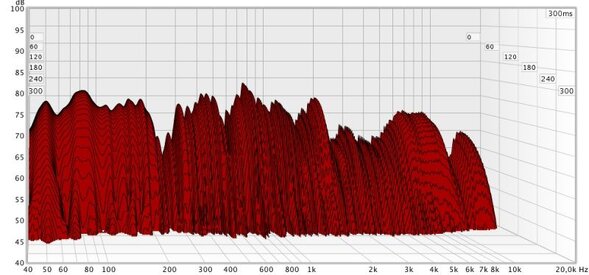

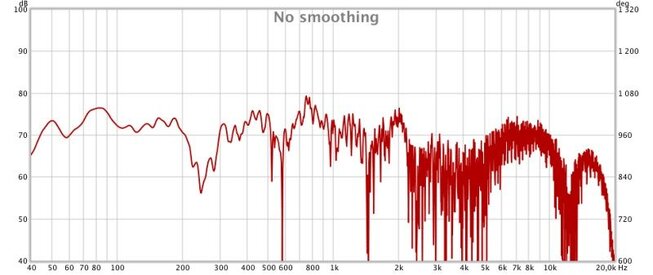

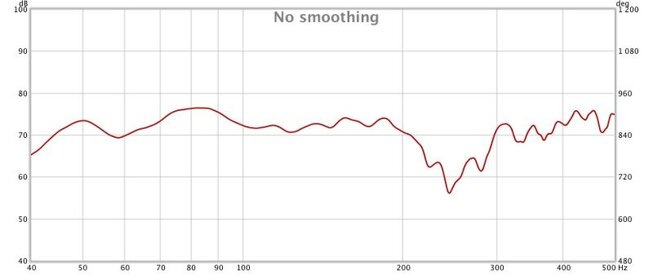

No problem..I allow myself to upload some results from the measurement when we are first at it..based on the graphs, do you see any obvious problems? Quite a bit of dip in the 200-300 hz area? I have to notice that my room are already semi-treated, with bass traps from GIK acoustics in corners and back wall.


Attachments

  • Waterfall.jpg
    44 KB · Views: 68
  • waterfall graph 1.jpg
    waterfall graph 1.jpg
    51.8 KB · Views: 69
  • frequency response full.jpg
    frequency response full.jpg
    36.8 KB · Views: 68
  • Frequency responce 1.jpg
    Frequency responce 1.jpg
    20.6 KB · Views: 60

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,198
Waterfall looks good, would experiment (as far as you can) with positioning of listening position and speakers to try and improve the 200 Hz dip.


mariuste86

Registered
Thread Starter
Joined
Apr 19, 2017
Messages
7
Ok, thanks for the feedback:) Will try to see what can be done with that dip.

Regards

Marius
