How to mesure the frequency response of a electronic cross over

[Marco Noise]

I would like to know if there is a method to mesure the frequency response of electonic devices like electronic cross over .



[dcibel]

Yes, of course, just use a voltage divider to step down crossover output to safe voltage for soundcard input. Measurement jig such as this can do the job:

Dual Channel Measurement Jig - HTGuide Forum

Here's a schematic for a simple dual channel measurement jig, which can be used with ARTA, REW, or SoundEasy.

www.htguide.com



[Wayne A. Pflughaupt]

I would like to know if there is a method to mesure the frequency response of electonic devices like electronic cross over .

Pretty easy to do with an electronic crossover, but you’ll need a USB sound card, aka interface. It’s basically the loopback process for calibrating the sound card, only you insert the crossover in the line. See REW Help Files -> Getting set up for measurement -> No. 2 Calibrating the interface.

Regards,
Wayne



[Marco Noise]

Thanks to everibody. Next weekend I’ll try…
I apologise but I’m new with REW.

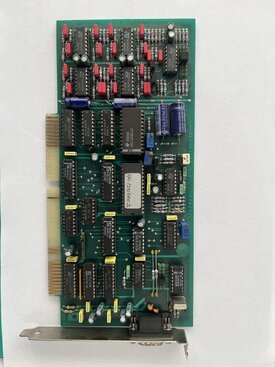

I have an old CLIO but it’s impossible to install it on the last 20 years pc.
My CLIO was one of the first serie running on a AT Pc
Because of this Iwould like to learn to use REW that is an incredible instrument!
Marco
