Help Needed - DSP1124P Filters Not affecting REW Curves

direavenger

Registered
Thread Starter
Joined
Mar 12, 2023
Messages
3
More
Preamp, Processor or Receiver
Denon AVR-2808
Subwoofers
DefTech DN8
Other Equipment
BFD
I suspect this is an issue with how I'm setting up the DSP1124P but I wanted to post here in case someone can help...

I'm all set up with REW on a laptop to EQ my troublesome definitive technology DN8 subwoofer. Equipment List:
- Behringer ECM-8000, prefessionally calibrated and using 90 degree cal file in REW.
- M-Audio mobilePre USB as mic preamp
- Dell Laptop
- Denon AVR-2808
- Behringer BFD DSP1124P
- Definitive Technology DN8 Subwoofer
- Definitive Technology bookshelf speakers, not important here

After much reading on the excellent REW setup and use guide, I took my first SPL measurement, with no filtering applied on the BFD. I then used REW to calculate filter parameters for the BFD. After a lot more reading of the BFD manual, I manually input those values, and then took new measurements. As you can see, the response didn't change at all between measurements. I even created a dummy user present on the BFD with no filtering to confirm that it isn't affecting output. Screenshots attached for app parts in the process, including the display on the BFD, showing all 7 filters are active, but I'm happy to take more if desired.

Any ideas about what might be going on here?


Attachments

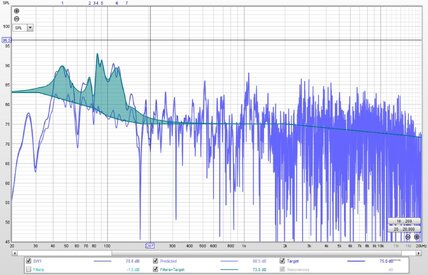

  • Baseline and Predicted Response.JPG
    Baseline and Predicted Response.JPG
    198.1 KB · Views: 11

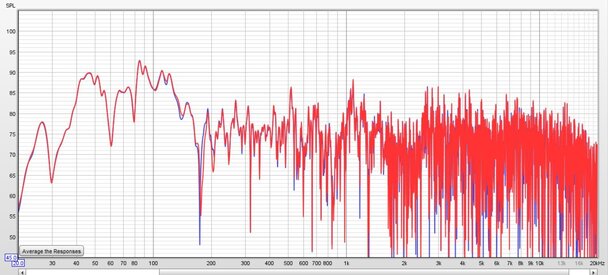

  • Before and After Filters.JPG
    Before and After Filters.JPG
    166.9 KB · Views: 12

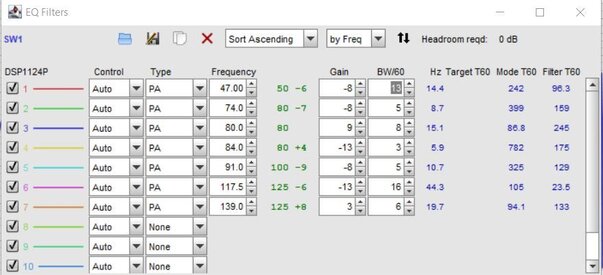

  • DN8 EQ settings on BFD.JPG
    DN8 EQ settings on BFD.JPG
    47.6 KB · Views: 15

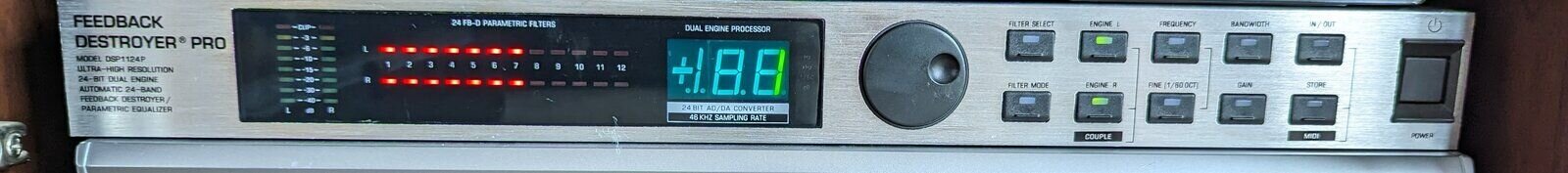

  • PXL_20230312_163646823.jpg
    60.6 KB · Views: 13

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,136
Best I can recall filters are bypassed if the in/out LED is off, short press the button to re-enable.


Wayne A. Pflughaupt

Moderator
Staff member
Joined
May 21, 2017
Messages
619
Location
Corpus Christi, TX
More
Preamp, Processor or Receiver
Yamaha CX-A5000 A/V Preamp / Processor
Main Amp
Yamaha RX-Z9 AV Receiver (as multichannel amp)
Universal / Blu-ray / CD Player
Denon DCT-3313 UDCI Universal Disc Player
Front Speakers
Canton Karat 920
Center Channel Speaker
Canton Karat 920
Front Wide Speakers
Realistic Minimus 7 (front EFX speakers)
Surround Speakers
Canton Plus D
Surround Back Speakers
Yamaha YDP2006 Digital Parametric EQ (front mains)
Front Height Speakers
Yamaha YDP2006 Digital Parametric EQ (surrounds)
Rear Height Speakers
Yamaha YDP2006 Digital Parametric EQ (sub)
Subwoofers
Hsu ULS-15 MKII
Other Speakers or Equipment
Adcom ACE-515 (for power management)
Video Display Device
Yamaha DT-2 (digital clock display)
Screen
Pioneer PDP-6010FD 60" Plasma TV
Remote Control
Stock Yamaha Remote
Streaming Equipment
Roku Express
Other Equipment
Audio Control R130 Real Time Analyzer
Also, make sure it’s set for “Hz” and not “kHz.” That one gets people all the time.

The curve probably doesn’t need more than 4 filters. #6 and #7 are out of the subwoofer range, and #5 is near the crossover frequency, so anything it accomplishes will probably be blown out once the mains are added.

Regards,
Wayne


direavenger

Registered
Thread Starter
Joined
Mar 12, 2023
Messages
3
More
Preamp, Processor or Receiver
Denon AVR-2808
Subwoofers
DefTech DN8
Other Equipment
BFD

direavenger

Registered
Thread Starter
Joined
Mar 12, 2023
Messages
3
More
Preamp, Processor or Receiver
Denon AVR-2808
Subwoofers
DefTech DN8
Other Equipment
BFD
Also, make sure it’s set for “Hz” and not “kHz.” That one gets people all the time.

The curve probably doesn’t need more than 4 filters. #6 and #7 are out of the subwoofer range, and #5 is near the crossover frequency, so anything it accomplishes will probably be blown out once the mains are added.

Regards,
Wayne
Thanks for your help! I had forgotten my crossover frequency between mains and sub, so I just gave REW a frequency that I knew would cover the sub passband. Lazy I know, but I had to get it done before the kids got home.
