Absorbers as bass traps - question regarding absorber's backwall.

Martin1703

Member
Thread Starter
Joined
Jul 6, 2022
Messages
19
My AV System
Preamp, Processor or Receiver
Musical Fidelity M8s-PRE
Main Amp
Musical Fideltiy M8s-500s
Computer Audio
MacBook
DAC
Denafrips Pontus II
Front Speakers
Focal Kanta 2
Subwoofers
REL S/510
Streaming Equipment
Roon Nucleus+
Streaming Subscriptions
Quobuz
As always, thank you both for your input, support, and guidance!


Was there a question in there? If you were to have several other speakers or multiple subwoofers you might look for speaker management hardware... Personally I would not put a ~$300 A/D/A in between my gear... I guess if you had horns and bass bins to manage, or some other speaker array(s), this might be the way to go... Your not planning on any DIY mods to your Focals are you? Like deleting the internal crossovers and controlling each driver separately... So bi/multi-amping is out... Again, something for the likes of horns and bass bins... And you have a pair of nice Focals and a nice REL subwoofer... Easy peasy...
My bad.. the question in there would have been if I've understood and summarized your and Ben's points correctly.. but you've answered that anyway.

Correct, I don't plan any speakers modifications and I'll stick to 2.1 (max 2.2).
Considering the different options I will indeed go what you're suggesting, @ddude003, as opposed to the DCX2496 approach, which I'm sure is great, too, just not my personal preference at the moment.


Finally... REW Measurements - Main Listening Position... For some reason the quote feature did not work, so I will be brief... I agree that file 277.5.mdat looks the best... With 1/6th smoothing it seems pretty flat and a little Roon DSP with a room curve should clean things up... Something else you might try is moving the Focals forward and backward a few inches... Just to see how things change... What is the distance of them from the front and side walls? Sorry, I know... With those footers it will be a pain and worth it... Have you tried toeing them in at all yet?
Thank you, that helps. Great suggestions.
Here's the sequence how I would tackle things.. can you let me know if you see any obvious flaws or if you'd suggest to tailor these steps differently?

Step 1: Loudspeaker Positioning
  • Front, back, left, right.. I'll move the speakers around and measure and listen and measure and listen. I may even move some of the furniture to try out different positions. I'm sure it will be worth it!
  • When I took the measurements toe-in was 13°.. the tweeter 29.1'' from the sidewall and 60.6'' from the wall behind it.
Step 2 Absorber and Bass Trap Adjustments
  • Step 2.a I will remove three absorbers that I believe are not critical at the moment. (Currently I have a total of 10 absorbers in the room).
    • Before having taken measurements (so basically until last week), I was wondering whether my room was overdamped (even if it did and does not sound so to me..maybe because I'm quite used to it), so I was wondering if removing three of the absorbers (and maybe replacing them with diffusors) would help fight the potential overdamping. These three would be the spare absorbers I'd use to create the stacked-absorber-bass-traps (with holes drilled in the back).

    • If measurements and listening don't show any ill effects resulting from removing the three absorbers, I'll proceed to Step 2.b
  • Step 2.b Use the three spare absorbers as absorbers-stacked-as-bass-trap-thingies and see if that helps bring the peaks at 124 Hz and 213 Hz down.
Step 3 Subwoofer
  • Measure nearfield
  • Measure sub alone and sub + Focals in many different places/positions in the room.
  • Get the sub's crossover and volume setting right
Step 4 DSP
  • First, I'll create REW PEQ filters myself and load them into Roon
  • Then, I'll play around with the house curve to see what I'd like best.
  • Lastly, I'll look into Convolution.
    • Until you've mentioned it last week I wasn't even aware, that something called Convolution exists; since then I've researched and gotten myself a first rudimentary overview. Right off the bat, I'd say that REW, waterfalls, decay charts, PEQ are all concepts I trust I'll enjoy to deal with ….but handling the various convolver tools like Acourate, AudioLense, etc seems like a totally different beast to me (at least when looking at the tools that run natively on a Mac, I believe). So, for Convolution I consider employing the services of Home Audio Fideltiy / HAF, which to me sounds like a great product and probably at a quality I'd hardly get to myself.
    • What do you think about HAF?
Later steps:
  • Get a new listening seat.. mine's not as comfy as I'd like it to be.
  • IsoAcoustic Gaia II isolator feet for the Focals
  • If at all "necessary" respectively desired.... think about a second sub.
Steps taken in parallel to all of the above steps:
  • Build and/or buy diffusors and see what they do
  • New listening seat.. mine's not as comfy as I'd like it to be.. dreaming of an Eames lounge chair replica.

Hope my posts don't exceed any limits.. I know they're long.
I welcome any feedback, suggestions, and comments very much!

Thank y'all,
Martin


BenToronto

Member
Joined
May 22, 2017
Messages
92
Whatever you do and whatever automated EQ you try, you'll always need to fine-tune when you are at the quasi-end. Fine-tuning shouldn't be done by ear alone because that will lead to a big mess. Re-tuning begins with running REW to establish a bench-mark. Which then requires either tossing out the automated EQ or fiddling with its "black box" output; and either of which requires a DCX2496 to re-tune.

If you are allergic to DSP, the CX3400 is a swell analog electronic XO which measures perfect. Just like the DCX2496.

Ethan Winer has written knowledgeably about bass traps (that he sells) and using REW - esp to get RT (reverb time) looking good.

B.


Martin1703

Member
Thread Starter
Joined
Jul 6, 2022
Messages
19
My AV System
Preamp, Processor or Receiver
Musical Fidelity M8s-PRE
Main Amp
Musical Fideltiy M8s-500s
Computer Audio
MacBook
DAC
Denafrips Pontus II
Front Speakers
Focal Kanta 2
Subwoofers
REL S/510
Streaming Equipment
Roon Nucleus+
Streaming Subscriptions
Quobuz
Whatever you do and whatever automated EQ you try, you'll always need to fine-tune when you are at the quasi-end. Fine-tuning shouldn't be done by ear alone because that will lead to a big mess. Re-tuning begins with running REW to establish a bench-mark. Which then requires either tossing out the automated EQ or fiddling with its "black box" output; and either of which requires a DCX2496 to re-tune.

If you are allergic to DSP, the CX3400 is a swell analog electronic XO which measures perfect. Just like the DCX2496.

Ethan Winer has written knowledgeably about bass traps (that he sells) and using REW - esp to get RT (reverb time) looking good.

B.
Hey Ben,
Thank you. these are good points, much agree with them.

However, the Roon Nucleus+ I have in my chain does allow me to load parametric EQ and convolution filters (as ddude003 has rightly pointed out to me).
For PEQ I can use REW to create the filters and upload them into Roon myself. I can do that iteratively as long and often as I like.
For Convolution I'd still start with REW (or something similar) but hand over the measurements to HAF who'd create the convolution filter for me. The initial filter they create is a little more costly (109 to 159 USD for what I'm looking at) and subsequent iterations 29 to 39 USD.

So in both cases I can keep on fine-tuing when I'm at my quasi-end.. or am I missing something?

One advantage the DCX2496 would have is that I can apply the cross over to each channel individually, so, also to the full-range speakers.
With Roon/Nucleus I can't do that, but that's the only downside I see so far.

Well, the proof of the pudding is in the eating.. so I'll try things out one way.. and later probably the other way. :)

Thanks also about the tipp regarding Ethan Winer, bass traps and REW.. I definitely need to read that.
When looking at the attached file .. which RT problem would you suggest I start looking at first?

Martin


Attachments

BenToronto

Member
Joined
May 22, 2017
Messages
92
Your freq plot looks pretty flat north of maybe 35. But to have satisfying bass, it really needs to be booster below maybe 70 Hz (and I certainly am talking about "classical music" (whatever that means today), not pop garbage.

From my own POV, your RT seems over damped for a music room and esp in the bass. Which may make your bass seem blah. But didn't you post here thinking the bass was to boomy??? Some inconsistency there?

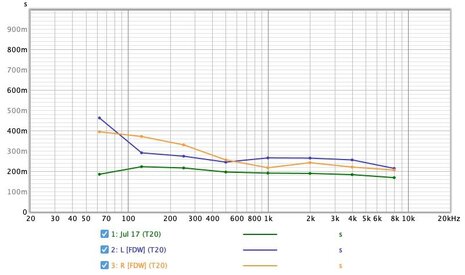

Attached are RTs for my L and R channels added to yours (which is the lowest one). I think mine are about right for music but not achieved through any smart design on my part, as much as I'd like to claim so.
