banshee

Just wanted to give an update on this. I think I figured out the underlying issue. My setup and process. I think by changing the Ref...

Yep, I hear them in fact I have the gains all the way up on the mic gain and they even go Red! Loudness is prob 80-90db. I agree...

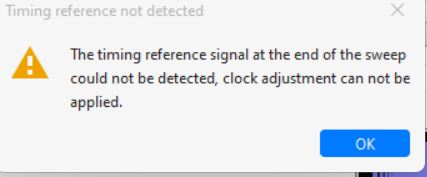

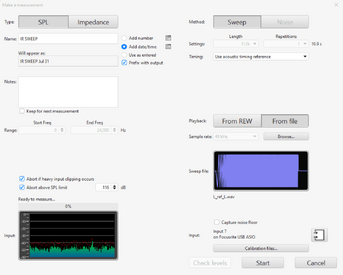

So this is the Acoustic timing reference method correct? If so, I tried to follow this exactly as you posted. I muted all channels...

Thanks, Interesting, looking into this option now.

Any advice here? Basically when I move to the right side, do I need to reverse all my outputs and inputs for those measurements?

Also to add, when I am aligning, I am aligning to phase for everything up to the final MR > TW, where I switch to IR.

Oh, I was doing it differently, each successive speaker would measure against the next. I figured if the MB was now aligned with SUB...

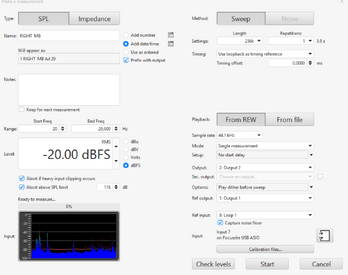

So I have a few more questions for using this alignment tool as I am most likely doing something wrong. I am turning my car system...

Right! I think I ended up inverting polarity of the MB and then ran again and it gave a delay that made more sense. It also seems to...

Awesome, this is exactly what the issue was! I will make sure I keep it on RTA and have adjust RTA levels checked from now on. I just...

For your PN measurements the RTA needs to be in an RTA mode (not Spectrum) and the RTA Appearance option "Adjust RTA levels" should be...

So disregard the dips, just starting the tuning on this one, long ways to go, but you can see with all one side playing once it gets...

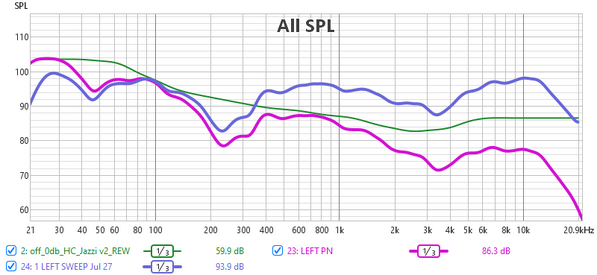

So I ran into this today and not sure if its something with my setup or what, but my measurements with mono PN, generated within REW...

Very nice, thanks! Will continue to look into the details of that mdat. Its interesting how one can invert a speaker and add some delay...

The delay listed in the measurement notes can be misleading. When using the REW alignment tool this delay is not used. Well done on...
