Description
I wanted to create a home theater that gave us entertainment, comfort, and an audio / visual illusion of reality and fantasy. My house provided an opportunity to utilize existing space, technology, and monetary considerations to practically create ( with bunches of help from people that know more than I ) a comfortable escape to wherever we chose to go.
To that end, over the years of blood, sweat and tears ( all good ), I am now in a personally rewarding big fun place. ( mildly sorry for the long winded description as follows ).
Home Theater 9.4.6. All speakers are of a bipolar design made by Definitive Technology.

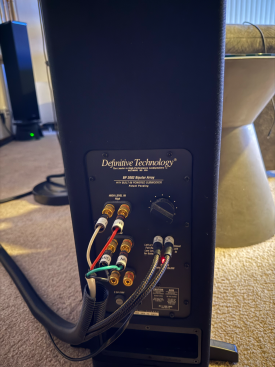

Four BP 2002tl towers: Two for left and right mains, and two for left and right surrounds, each with four 5.25-inch mid-bass drivers, two 1-inch aluminum dome tweeters and one 250 watt amp driving one 12 inch shared woofer / sub.
One 2500 C/L/R center with two 5.25-inch mid-bass drivers, a 1-inch aluminum dome tweeter, and one 150 watt amp driving one 8-inch woofer.
Four BP-8 towers: Two for left and right wide placement, and two for left and right rear placement: Each with two 5-1/2 inch mid-bass drivers and two 3/4 inch silk dome tweeters.

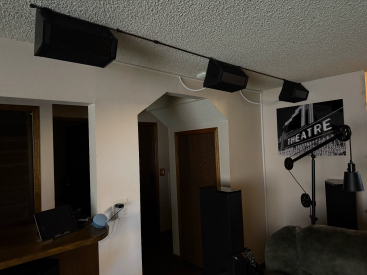

Six BP2X's hung horizontally for heights / Atmos: Three for left ceiling placement, and three for right ceiling placement. Each with two 5.25 inch mid-bass drivers and two 1-inch aluminum dome tweeters.

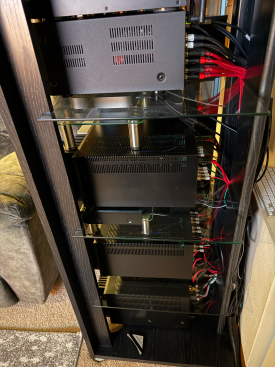

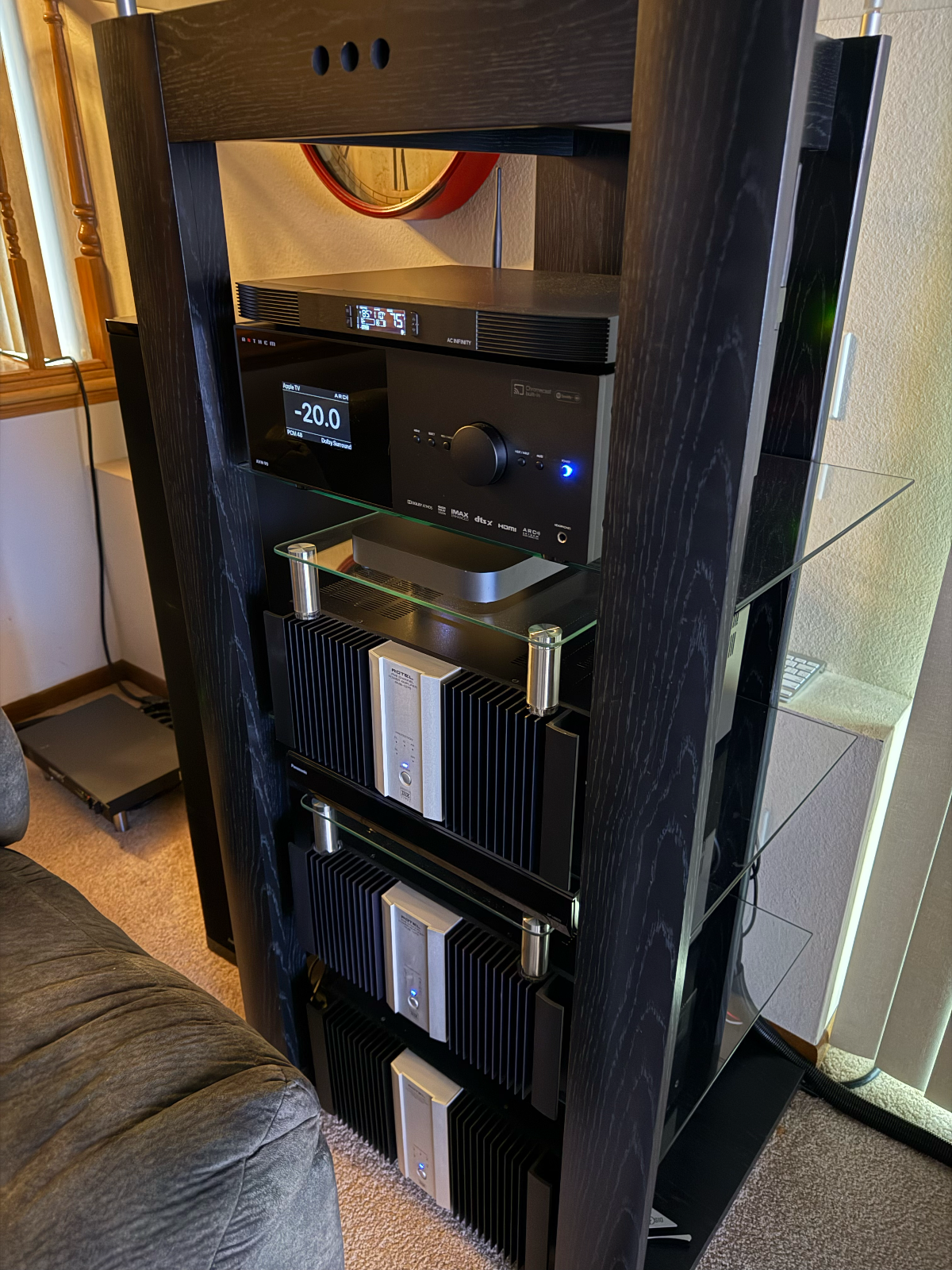

Three Rotel amps: One RMB 1095 with five channels at 200 watts per channel, of which four channels drive the four BP 2000tl’s mid-high drivers and two tweeters, and one channel drives the C/L/R mid-bass drivers and one tweeter.
Two RMB 1075’s with five channels each at 120 watts per channel, one 1075 to drive the left side wide, three Atmos, and back, and one 1075 to drive the right side wide, three Atmos, and back. Nineteen channels total driving 15 enclosures collectively containing 29 tweeters, 38 squawkers ( mids ), 5 woofers, four of which double as subs. 72 drivers powered by 3,350 watts total.
Anthem AVM 90 8K audio-video processor. Mac Mini dedicated for Anthem ARC room calibration. Panasonic DP-820 Blu-Ray. Apple TV 4K streamer. Sony XBR-85X90 flat screen.
Three dedicated 20 amp circuits each with SurgeX 20 amp conditioners / surge protectors.

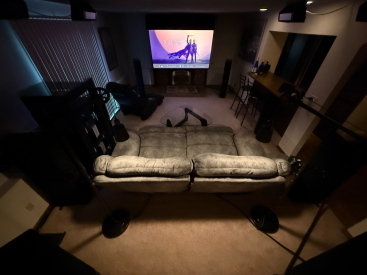

Room space is 13' 3" width, 25’ length, 7’8” height.
All speakers follow DefTechs’ placement and Dolby’s home theater angle, height, and position guidelines.
Floor is carpet covered concrete surrounded by 26 inch tall concrete walls. No extraneous vibration or bass bleed to the neighbors.
