Win10 - REW - HDMI - Marantz ?

0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
Hello,

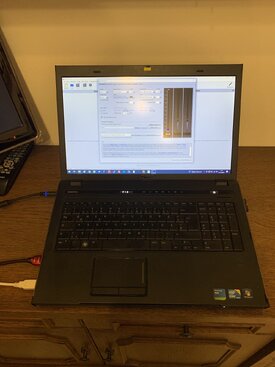

I have a Dell Win 10 64bit Laptop with HDMI Output onboard.
The miniDSP Micro is connected via USB, REW recognizes and works.

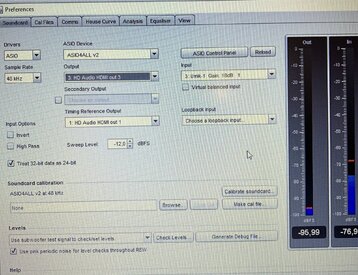

HDMI to Marantz - does it work? I do not get it run in REW.
I connect the HDMI cable, Win makes the jingle, Marantz is not doing anything, REW does not show me an active connection, cannot select HDMI ?

THX for help


Attachments

  • IMG_2471.JPG
    201.7 KB · Views: 25
  • IMG_2470.JPG
    209.2 KB · Views: 27

phofman

Member
Joined
Jun 26, 2019
Messages
133
Do windows see the device with the HDMI connection? Is that playback device listed in the windows control panel for audio devices? REW lists only (possibly a subset of) windows devices (unless ASIO is used which your image shows is not the case).


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
Hi, already found out that there was a driver issue on Windows, corrected.

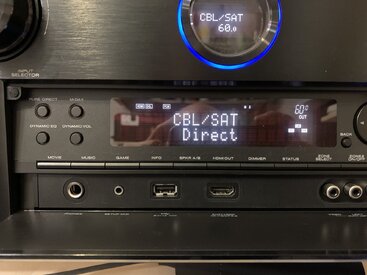

Now HDMI signal goes through the Marantz to the display.

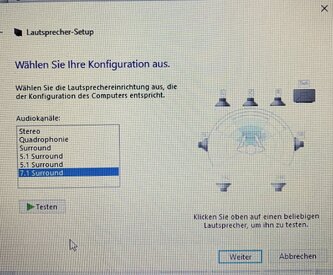

Then the HDMI interface in Windows was set to stereo, changed to 7.1
but still the Marantz shows stereo and no signal is getting to the speakers out of REW. ?


Attachments

  • IMG_2476.JPG
    256.2 KB · Views: 8
  • IMG_2478.JPG
    721.4 KB · Views: 8

0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
New day, new info

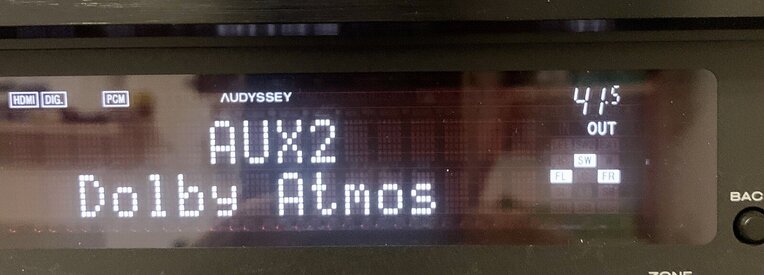

Atmos Sample runs on the Marantz via all monitors.

That means REW and ASIO does not work correct on the HDMI interface. What can I do?

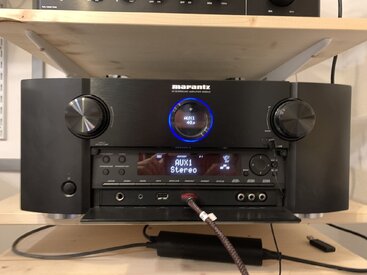

When I start a signal, the Marantz always shows L/R/SW, not more. As if it is set to stereo with Sub ? Maybe the Sub is activated by Marantz itself.


Attachments

  • IMG_2483.JPG
    190.6 KB · Views: 4
  • IMG_2484.JPG
    164.8 KB · Views: 14
  • IMG_2487.JPG
    607.9 KB · Views: 12
  • IMG_2486.JPG
    134.5 KB · Views: 12
Last edited:

thothsong

Member
Joined
Jun 29, 2021
Messages
388
If you install V5.20.13, do you have the same problem when using the Java driver?


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
running the wav via WMP, just Stereo is getting to marantz

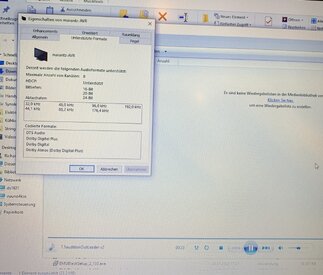

windows is set to 7.1 in my opinions, maybe there are more settings?


Attachments

  • IMG_2488.JPG
    356.6 KB · Views: 11
Last edited:

thothsong

Member
Joined
Jun 29, 2021
Messages
388
OK, so there's some problem in general, not specific to REW. While playing that WAV file, if you look at Settings->General->Information on the Marantz, what does it show for Audio Information?


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
Playing an atmos demo via built in win player, all speakers are working fine, full atmos

what do you mean by settings-general-information (cannot finde that in win10)


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
Oh OK

If I play via WMP it is Signal: PCM, Sound - Stereo 48kHz 2/0/0
If I play via Film&TV it is Signal: Direct, Sound- Dolby Atmos


Attachments

  • IMG_2489.JPG
    129.1 KB · Views: 9
Last edited:

thothsong

Member
Joined
Jun 29, 2021
Messages
388
It doesn't look like there was audio playing when you took that picture? What does it look like while the WAV file is actively playing?


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
Here we go on WMP 7.1
55581
55587

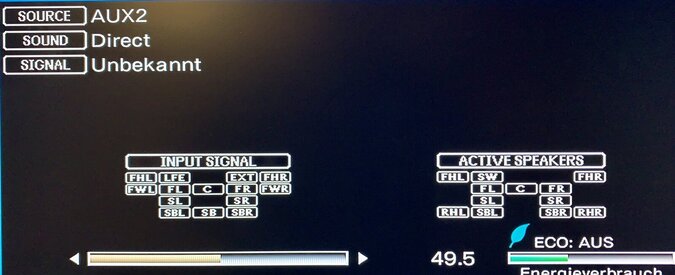

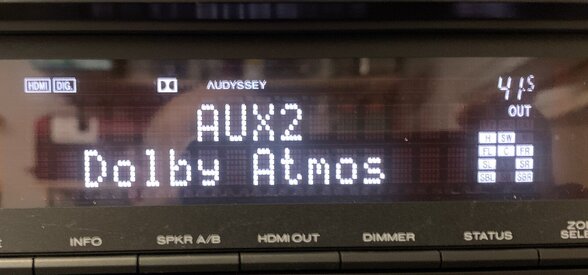

this is a Atmos Sample
55583
55588


fall back is shown Stereo

Last edited:

thothsong

Member
Joined
Jun 29, 2021
Messages
388
OK, so it seems there's something about your Windows audio driver configuration, it appears to be forcibly downmixing to stereo.


thothsong

Member
Joined
Jun 29, 2021
Messages
388
Look at all of the tabs for that audio output device (Enhancements, Spatial Sound, etc) to make sure you have any special processing disabled. Look to see if your laptop has some audio control panel or app that might be altering the audio processing.


phofman

Member
Joined
Jun 26, 2019
Messages
133
IMO that Atmos test is obscuring the problem. Atmos/DTS/DD are encoded bitstreams, passed as direct/nonPCM to the AVR which decodes the bitstream to individual channels (something like multichannel mp3). But what is required here is a standard multichannel PCM playback.

I like thothsong's layer-by-layer approach - first testing the driver itself. Only after the lowest layer is confirmed to work, can the subsequent layer on top be tested (REW).


thothsong

Member
Joined
Jun 29, 2021
Messages
388
Your laptop is old enough (Win 7 originally, by the sticker) that it might not support multichannel LPCM output, and the driver is always downmixing LPCM.


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
according to Win Forum, PCM does not have a Stereo problem, seams to be the simplest and workfull option


0815

Registered
Thread Starter
Joined
Oct 1, 2017
Messages
10
tried my old iMac and HDMI Thunderbold wire, workes! tests are comming
