REW Beta Release V5.20 beta 5

John Mulcahy

REW Author
Thread Starter
Joined
Apr 3, 2017
Messages
7,212
The EQ target settings panel has had a few changes in this version, in a bid to better explain the different target types and clearly separate the room curve controls. Those room curve controls now also have a separate check box to enable or disable them, rather than having to set the slopes to zero. There is also a new target type for an individual driver, which allows high pass and low pass crossovers to be specified (Butterworth, Linkwitz-Riley or Bessel up to 8th order) to create the target shape.


First order (6 dB/octave) low pass and high pass filters have been added to the Generic equaliser. The equaliser selection help has also been expanded to add a table of Q values to use with sets of LPQ/HPQ filters to implement crossovers up to 8th order.

The room simulator now allows up to 8(!) subwoofers.

There have been a couple of additions to the signal generator multitone signal, a multitone decade fraction spacing option and a 1/48 octave option for the multitone octave fraction spacing.

Graph capture can now either save the image to file or copy it to the clipboard, and there is a "Preview comment" button to see the effect of any html formatting that has been included in the comment.

The step response calculation now uses the windowed IR and also includes any frequency-dependent window that has been applied. Previously it used the pre-impulse window only and didn't take account of any FDW.

The main REW window now comes to the front if a menu item is selected, preventing menus being hidden behind 'always on top' windows like the signal generator or SPL meter.

The waterfall frequency resolution figure (to the right of the window width control) now takes into account the rise time setting, and the window width, rise time and frequency resolution of the waterfall now appear in the top right corner of the plot.

The distortion low pass/high pass overlay shading on the RTA is not shown when using dual tone or multitone test signals as they do not apply for those signal types.

A workaround has been added for a Windows Java bug that was preventing proper display of Chinese characters in audio device names, the fix should also help with other non-latin character sets.

If a recognised USB mic is selected as the input device REW now automatically selects the input as well so that the volume control is accessible to allow correct SPL figures to be displayed.

There was a -100 dB lower limit for magnitude values in imported responses which has been removed.

The reference input selector is now shown on the Measure dialog when measuring impedance and the secondary output selector is not shown on the Measure dialog when measuring impedance when using ASIO.

There are now 4 decimal places in the Distortion graph legend for distortion values below 0.01 %

Support for importing COMSOL impulse response text files has been added.

The default setting for the "Allow 96 PPO log spacing" analysis preference is now for it to be selected for new installations, to reduce memory use and file size.

There have been further reductions in memory use when REW makes measurements.

The installer application name has been changed from Room EQ Wizard to REW, which affects the program group name and the shortcut name.

The following bug fixes have been included:
  • Check levels could fail on the Measure dialog for some sweep frequency spans
  • Results of trace arithmetic on imported audio data would not generate waterfalls or spectrograms
  • Prevent multiple prompts for "Assuming a UMIK" when using ASIO4All and a UMIK is connected but it doesn't appear in the list of ASIO4All inputs
  • Maximum end frequency for sweep was not initialised correctly when Measure dialog was first shown
  • Spectrogram plot start frequency took account of lowest valid frequency for windowed IR instead of depending only on spectrogram window
  • Previous sample rate was not restored on the next startup


nbn44

Registered
Joined
Jun 5, 2017
Messages
22
Hi john
It would be very convenient to save the Room Simulator parameters, equipment configuration, calibration, etc. for different types of measurements - you can quickly switch to other modes with an optimal combination of settings, compare different simulation options, different room sizes


John Mulcahy

REW Author
Thread Starter
Joined
Apr 3, 2017
Messages
7,212
Yes, that's one of the items on the todo list for the room sim.


nbn44

Registered
Joined
Jun 5, 2017
Messages
22

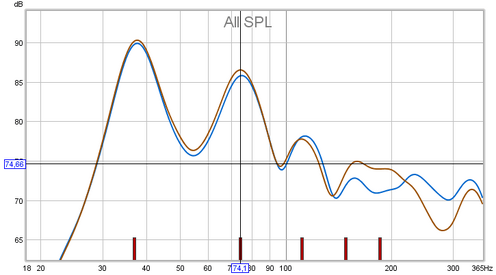

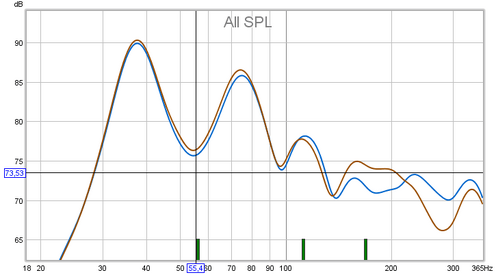

And is it possible to add a button to transfer the size of the room from the simulator to the equalizer?

if you show them separately, it's great at all :-)

View attachment 12207 моды по длине.png моды по ширине.png

Last edited:

nbn44

Registered
Joined
Jun 5, 2017
Messages
22

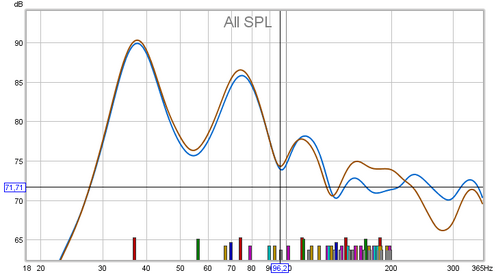

for some reason the picture was deleted, but the new one did not load ...
все моды.png


Horacio Lewinski

New Member
Joined
May 17, 2018
Messages
57
Hi john
It would be very convenient to save the Room Simulator parameters, equipment configuration, calibration, etc. for different types of measurements - you can quickly switch to other modes with an optimal combination of settings, compare different simulation options, different room sizes

Hello. Just checking this is still not available as an option (that I'm not finding). I haven't used room simulation before and found it to be an excellent tool!! Not only for simultaion what I have now, but to evaluate future plans and would be really good to be able to come back to those as I pursue implementation.

Thank you!


Horacio Lewinski

New Member
Joined
May 17, 2018
Messages
57
Outstanding!!! Thank you!!!

Question: when I model the main speakers, considering we are modeling under 300Hz, should I enter the height of the midbass, the midrange, or tweeter? I imagine it's the midbass, but checking. In fact my speakers have double 6" midbasses per side. Should I enter the midpoint between both? They play above the xo point, and below are the subs.

Thank you!!


John Mulcahy

REW Author
Thread Starter
Joined
Apr 3, 2017
Messages
7,212
Enter a height that corresponds to the frequency range of the simulation, so whichever drivers are reproducing content below 200 Hz.


Horacio Lewinski

New Member
Joined
May 17, 2018
Messages
57
Thank you. I have two midbasses per side: one at 55cm from floor and the other at 75cm. Tried both, ended up using 65cm.

Room Sim is a great tool!!

As I explore room treatments it's outstanding to be able to model the effect on the low end. How should I think about the surface absorption factors? I guess these are the surface factors average in the 20 to 200Hz region.
What's approximately the factor for a wall to wall floor to ceiling glass sliding door? Thin curtains are invisible at 200Hz and below. But glass is tricky: thin yet stiff.

Great stuff!
