As I have been playing with AL there is a challenge (one among many) that is yet to have mastered.
My speakers actualy go lower then the sub. The sub is an 18" PA sub with high spl in the range of 35-120hz. The speakers reach about 25hz. See measurements. In miniDSP it was possible to highpass and lowpass the sub and it boosted the sound nicely. AL works differently. Using wide xo filter of 3 or 4octave on the sub I get good results in std 2.1 configurations. Yet when I try to add the sub as a standalone speaker the correction filter severely attenuates the result way below the target. What am I doing wrong?
Speaker setup:
speaker setup_speakers.png
channel routing.png
xover config.png
Measurements:
measurement and xover of right.png
measurment and xover sub.png
Simulation and target:
filtered measurment TTD.png
simulation vs target.png
simulated filter.png
Feel free to point out basic mistakes :)


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
517
I'm afraid Audiolense isn't designed to support this scenario.

If you digitized your crossover, you could perhaps include the subwoofers as the second lowest drivers in your main speaker, and then you would have more design freedom in Audiolense to do what you want to do.

The easiest solution may be to skip the subwoofer alltogether. If your main speakers can hold their own down at 25 Hz, they shouldn't have much problems with the capacity higher up.


Ofer

Member
Thread Starter
Joined
Mar 15, 2021
Messages
159
My AV System
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD
What you are suggesting would probably work with 2 subwoofers. I think Mitch did it in his subwoofer integration walk through. For one sub how would that go? The sub adds a lop of power to the lower end, I don't want to give up on it. Thanks for your answer though. I guess I will stay with long filters on the low end.


Omid

Member
Joined
May 28, 2017
Messages
102
What you are suggesting would probably work with 2 subwoofers. I think Mitch did it in his subwoofer integration walk through. For one sub how would that go? The sub adds a lop of power to the lower end, I don't want to give up on it. Thanks for your answer though. I guess I will stay with long filters on the low end.
A lot of Subs have R+L inputs (they are summed inside the sub) . Does your sub only have 1 single input? Sorry I can't remember the specifics of your system, perhaps that's not an option...

If you have time, try running a distortion analysis for your mains and your sub (no DSP) in REW. You can either do that through a normal sweep, or better through the RTA window with stepped sine testing. You may find that that although your mains can play down to 25Hz their distortion may be much higher than the sub's distortion below a certain frequency, and your sub may not play distortion free above a certain frequency. If that turns out to be the case, having a broad overlap may not be in your best interest anyway. Just a thought.


Ofer

Member
Thread Starter
Joined
Mar 15, 2021
Messages
159
My AV System
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD
Thanks Omid. Currently after swaping the umik1 to an sonarworks xlr mic I am having trouble using REW. It needs to looback or something through the RME and then to the JR convolver. It is beyond me at the moment. My sub is an OEM PA sub in has only one input.


Omid

Member
Joined
May 28, 2017
Messages
102
Sorry it's so much trouble to sort it out. It'll be worth it in the end !

BTW the RME FF400 seems to allow mixing channels to mono (I don't have one and only looked rapidly at the manual, so I might be wrong). see attached mid page under 'mono'. If I 'm right you can send R+L low freq to your sub via one single output...


Attachments

Ofer

Member
Thread Starter
Joined
Mar 15, 2021
Messages
159
My AV System
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD
Hi @Omid,
Well your suggestion was a good one. What I did eventually is create a 4way speaker in a 2.0 channel configuration. Then in the measurement window changed the channel routing. Enameled overlap on drivers. Don't mind the 4 octave slope I fixed that.

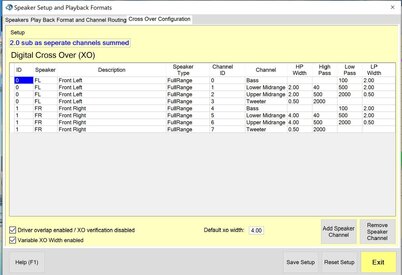

speaker setup.jpg
Then ran through all the filter generation protocol.

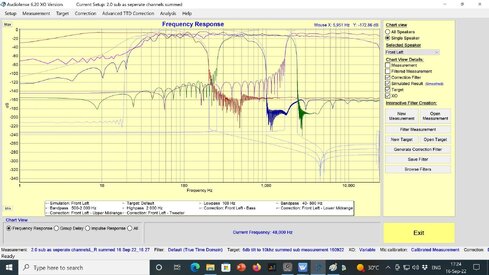

simulated left.jpg
As you see it is summed nicely without a lot of attenuation.
It sounds great. I have the pronounced bass that the sub produces. In my opinion it sounds better then a long, 4 octave, slope on the sub/woofer.

Last edited:

Omid

Member
Joined
May 28, 2017
Messages
102
Hi @Omid,
Well your suggestion was a good one. What I did eventually is create a 4way speaker in a 2.0 channel configuration. Then in the measurement window changed the channel routing. Enameled overlap on drivers. Don't mind the 4 octave slope I fixed that.
View attachment 54786
Then ran through all the filter generation protocol.
View attachment 54787
As you see it is summed nicely without a lot of attenuation.
It sounds great. I have the pronounced bass that the sub produces. In my opinion it sounds better then a long, 4 octave, slope on the sub/woofer.
Awesome news!
See, I told you it’d be worth it !


Ofer

Member
Thread Starter
Joined
Mar 15, 2021
Messages
159
My AV System
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD

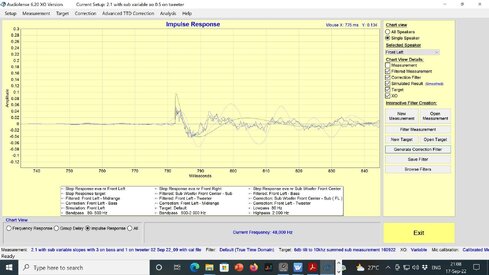

Step response is also better. This is with 2.1 configuration. The sub has a life of its own.
2.1 sub 4 octace 0.5 xo on tweeter step response TTD default.jpg

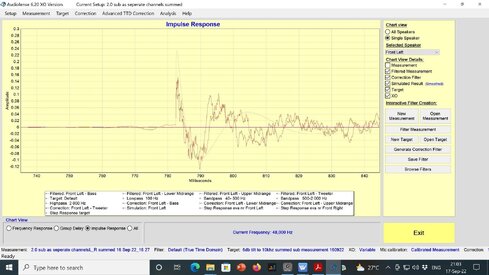

This is with the summed configuration, not perfect but pretty good. Both with default TTD settings.
