Sub routing w/second sub routing specified 50/50

whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
110
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
I added a second sub as below and specified a 50/50 split in routing matrix.
In speaker and bass management I then split the sub routing between the FL,FR,C,SR,SL speakers per image below.

One sub is used for XO by 3 channels and other sub used by only 2 channels, so the XO routing is not a 50/50 split.

How does AL handle this situation? Is maintaining a 50/50 split important for the XO settings (i.e should one of the XO's include both subwoofers to maintain a 50/50 split), or
does the 50/50 split only apply to the actual bass channel present in a multichannel recording?

Thanks


SpeakerSetup

SubRouting


jrobbins50

Member
Joined
Oct 4, 2018
Messages
137
Why do you want to split the bass in this fashion? If you select route bass to all subs, then you won’t need to pick the bass routing and bass from every channel will get routed, 50-50, to the two subs.

If you really mean to route bass from specific channels to a specific sub, then your routing is fine. But then, I would guess that you need to select 1.00 for the low frequency playback for each sub, since you aren’t summing and splitting.

Bernt can confirm or deny my guess. JCR


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
110
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
Why do you want to split the bass in this fashion? If you select route bass to all subs, then you won’t need to pick the bass routing and bass from every channel will get routed, 50-50, to the two subs.

If you really mean to route bass from specific channels to a specific sub, then your routing is fine. But then, I would guess that you need to select 1.00 for the low frequency playback for each sub, since you aren’t summing and splitting.

Bernt can confirm or deny my guess. JCR

No matter where I've moved my subs, they always end up working against one another close to where I'd like to use them for improving the bass response.
For example, brown and blue are subs and green is a side speaker. I get better results when only one sub is used because the two subs seem to cancel each other out at around the 30hz point.
I have similar issue with other speakers at various XO'ver points when both subs are involved.
Thanks


SubExample


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
110
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
@juicehifi - Hi Bernt, can you provide any more information for how the matrix percentage impacts XO vs individual sub channel?

Thanks


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
575
Can you rephrase the question? Not sure what you’re asking here.


whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
110
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
When you create a two sub, 5.2 layout, using the default Audiolense configuration is as follows and the
channel routing as in the next image
Default




DefaultRouting


Source material's main bass is output via two subs, so it seems the .5 / .5 values are correct for the source material's main bass channel.

But is the .5 / .5 setting in matrix in any way relevant to the crossovers?

For example, AL's default configuration for 5.2 evenly divides between the 5 & 6 bass channels.
(Two subs used for XO on the center channel), so that half of XO comes from each sub channel.

Hope this makes more sense. Not sure how else to explain.

Then again, maybe I just don't understand this routing matrix


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
575
What you see on the format tab is routing of the the various formats that you have configured (or that was configured as default). In addition to the bass management you see here, you will have bass offloading from each main speaker as per the speaker tab. Those two are different and work independant of each other. The .05 figures only apply to the LFE signal in 5.1 format here.

If you for example sent "low frequency" (the LFE) to the center speaker in the format tab, it would still be split between the two subwoofers, since they are used to offload bass from the center speaker. The difference between the two configurations would be that there would be no low pass if you sent the LFE to the center speaker. In other words, any high frequency artifacts in the LFE feed would be played by the center speaker.

I hope this clarifies it.

  • Like
Reactions: whoareyou

Ofer

Member
Joined
Mar 15, 2021
Messages
176
More
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD
Is it possible to have the mains and sub(s) both play the low frequency (overlap)? i.e. having no high-pass filter for mains and sub(s) but different low-pass filter?
for example: sub plays 10-80hz and mains (front left and front right) play 10-20khz.
That way the sub only boosts the low end but doesn't offload the all the low frequency from the main speakers.

Last edited:

juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
575
Not exactly, but you should be able to get close enough by tweaking the crossover settings.


Ofer

Member
Joined
Mar 15, 2021
Messages
176
More
Preamp, Processor or Receiver
miniDSP 4x10hd
Main Amp
Emotiva XPR200 midrange amp
Additional Amp
Crest audio 2001A bass amp
Other Amp
Rotel RA930ax twitter amp
Computer Audio
Sony Bravia android TV
DAC
miniDSP 4*10HD
Front Speakers
Andromeda MkII
Screen
Sony bravia 65XF9005
Streaming Subscriptions
Deezer HiFi
Other Equipment
Marantz original 5E CD
How could this be done with xover frequencies? Can this be done by assigning the sub as a third full range speaker and just setting its xover for low freq?


spalmgre

New Member
Joined
Mar 7, 2019
Messages
4
More
Preamp, Processor or Receiver
Najda DSP
Main Amp
HifiMeDIY T1 x 4
Front Speakers
JBL 4way DIY horn setup
How could this be done with xover frequencies? Can this be done by assigning the sub as a third full range speaker and just setting its xover for low freq?

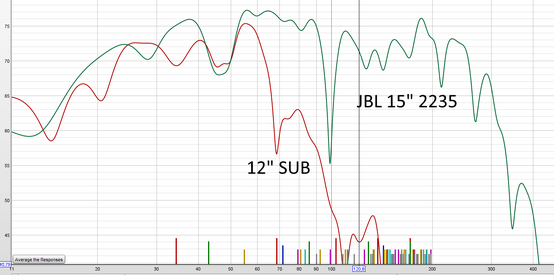

I also like to hear an answer to this. Multisub setup can be simulated if the main speakers do go low enough. The advantages would be more sound pressure but more importantly even sound field. MSO software deals with this but does not produce FIR filters.


Attachments

  • Bass sub.png
    Bass sub.png
    33.7 KB · Views: 4
  • Like
Reactions: jjazdk

jjazdk

Member
Joined
Aug 17, 2018
Messages
88
Not exactly, but you should be able to get close enough by tweaking the crossover settings.

Could you show us how to tweak the x-over settings to do this?
I have re-arranged my subwoofers and added extra channels, and am considering giving Audiolense another chance, especially if more multisub features was available. Letting my front speakers be part of the subwoofer "array" is a big wish for me.


juicehifi

Audiolense
Staff member
Joined
Feb 5, 2018
Messages
575
There are several ways.

Wide crossovers:
1671447566602

1671447600098


The bass offloading above has less functionality than the "regular" crossover functionality. If you configure the subs as a speaker drivers you get more options:
1671447780453

With Driver overlap enabled, you can either move the speakers' high pass (right speaker) or skip it completely (left speaker)

Resulting crossover for left speaker and left sub:
1671448313869


These crossovers will not sum perfectly, but the global correction will fix it.

You will have to take a new measurement if you move from a 2.2 setup to a 2.0 with two drivers.

  • Like
Reactions: jjazdk

whoareyou

Member
Thread Starter
Joined
Dec 23, 2021
Messages
110
More
Main Amp
Benchmark AHB2
Additional Amp
ATI AT525NC
Computer Audio
JRiver
DAC
Exasound E38
Front Speakers
Psb synchrony one
Center Channel Speaker
PSB synchrony one C
Surround Speakers
Revel m105
Is driver overlap supposed to work only with front left and front right full range?
I ask because I was playing around with similar configuration and when driver overlap is enabled, high pass cannot be removed from other full range speaker selections.

Top Bottom
