Sound Card Calibration

Trun

New Member
Thread Starter
Joined
Jan 18, 2020
Messages
4
Hi, I am starting REW set up and during the soundcard calibration I see noticable noise above 5kHz which looks a little unusual. Before goung any further to the measurements stages I wondered if I had settings correct? Screen shot of the sound card calibration trace and preferences screen are attached. Really would appreciate any advice, Best Regards


Attachments

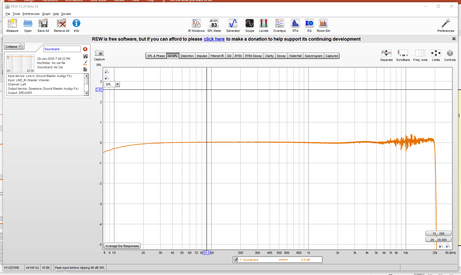

  • Audigy FX Calibration 28 Jan 2020.png
    Audigy FX Calibration 28 Jan 2020.png
    61.7 KB · Views: 42

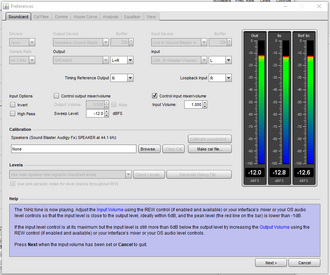

  • Soundcard Preferences.png
    Soundcard Preferences.png
    73.9 KB · Views: 44

John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212
Looks like a little bit of noise pickup, but the calibration graph is on a very zoomed in scale so nothing to be particularly concerned about. The card is flat enough that you don't need to use a calibration file, which avoids baking that bit of noise into all subsequent measurements.


Trun

New Member
Thread Starter
Joined
Jan 18, 2020
Messages
4
Advice greatly appreciated. I can continue!


jjones1960

Registered
Joined
Mar 4, 2020
Messages
1
More
Main Amp
Belles Aria Integrated
Universal / Blu-ray / CD Player
Hegel HD25 DAC
Front Speakers
Kudos Super 20's
Front Height Speakers
36"
I'm having trouble getting having REW 'find' my sound card. I have MacBook Pro with Mojave.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212
Make sure the sample rate selected in Audio Midi setup is the same as the sample rate in REW.
