Some advice on measurements and correction

bryankes

Registered
Thread Starter
Joined
May 19, 2021
Messages
4
My AV System
Main Amp
Ars Sonum Filarmonia
Computer Audio
Mac mini
DAC
Topping D90
Front Speakers
Merlin VSM
Hi,

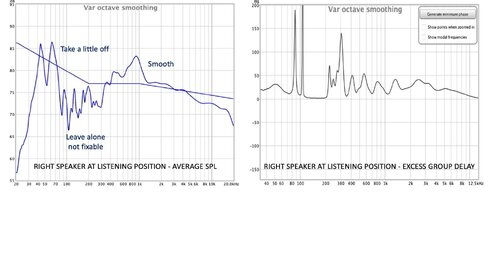

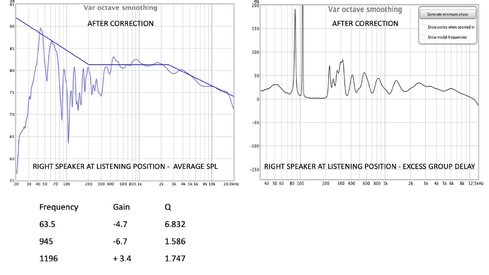

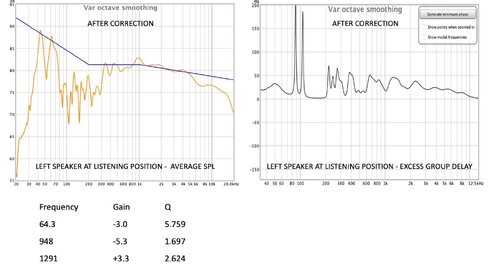

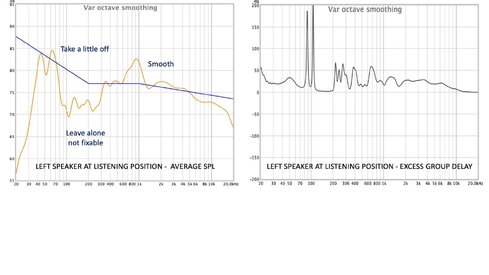

Was hoping to get some expert advice on first time REW measurements and an attempt at correction. Graphs are attached. Despite moving the speakers around (19 X 14 room), I could never make much of a dent in those100-300 hz dips so left them alone. The midrange peaks around 1K are similar when moving the mic all around the listening position - up and down, forward and back, and side-to-side - so took a long average of all of them.

Did this "simple" EQ strategy make things better or worse? It sounds better!

Thank you very much,

Bryan


Attachments

DanDan

Moderator
Staff member
Joined
Mar 10, 2018
Messages
554
Best to post the .mdat file. Measure, L, R, and L+R. Worthing including Ear locations as well as a Centre. Step well away from the Mic.


bryankes

Registered
Thread Starter
Joined
May 19, 2021
Messages
4
My AV System
Main Amp
Ars Sonum Filarmonia
Computer Audio
Mac mini
DAC
Topping D90
Front Speakers
Merlin VSM
Files attached.


Attachments

bryankes

Registered
Thread Starter
Joined
May 19, 2021
Messages
4
My AV System
Main Amp
Ars Sonum Filarmonia
Computer Audio
Mac mini
DAC
Topping D90
Front Speakers
Merlin VSM
Am curious to know whether the "gentle" EQs to smooth out 500-2500 is angering the EQ gods by causing massive phase shifts that I am too deaf to hear. I don't see them on the excess phase graph however. Thank you,

Bryan


ddlooping

Registered
Joined
Aug 19, 2021
Messages
8
Location
UK
My AV System
Preamp, Processor or Receiver
Denon AVR-X3600H
Front Speakers
Def Tech Mythos ST-L
Center Channel Speaker
M&K S-85
Surround Speakers
MK K4
Front Height Speakers
Boston Acoustics SoundWare Cube XS
Subwoofers
BK XLS200
... causing massive phase shifts that I am too deaf to hear.
They don't matter if you're too deaf to hear them. :)
I'd be more concerned about the massive hole in the 100-500hz region. :confused:
Any chance of posting photos of your setup?


Ian Eales

Member
VIP Supporter
Joined
Aug 18, 2017
Messages
15
Location
Florence, Oregon
My AV System
Preamp, Processor or Receiver
marantz NR1711
Universal / Blu-ray / CD Player
LG BP335W Region Free
Front Speakers
RS Minimus 7
Center Channel Speaker
RS Minimus 7 x 2 wired in series
Surround Speakers
RS Minimus 7
Surround Back Speakers
TEAC LS-MC85
Subwoofers
Martin Logan 2x 800x
Other Speakers or Equipment
Triamped Eminent Tech LFT-8b music.
Screen
LG 65" OLED
Remote Control
TOO Many!
Other Equipment
VPI bricks, Transparent Link cables, De Mat Disc
You may want to investigate Moving Mic Measurements [MMM]
Ohl Blog
MMM PDF


AudiocRaver

Senior Admin
Staff member
Joined
Nov 21, 2016
Messages
868
Location
Lincoln, NE, USA
My AV System
Preamp, Processor or Receiver
Onkyo TX-SR705 Receiver
Main Amp
Crown XLS 1502 DriveCore-2 (x2 as monoblock)
Additional Amp
Behringer A500 Reference Power Amplifier
Front Speakers
MartinLogan Electromotion ESL Electrostatic (x2)
Center Channel Speaker
Phantom Center
Surround Speakers
NSM Audio Model 5 2-Way (x2)
Subwoofers
JBL ES150P Powered Subwoofer (x2)
I am curious about those two bass peaks. Your pre-EQ notes say to ":Take a little off", then on the post-EQ plots those bass peaks are increased. Is that what you wanted?


pklose

New Member
Joined
Jan 11, 2020
Messages
18
Is your room's inside walls made out drywall? That would explain the suck-out at 100 Hz - 300 Hz. The RT 60 is higher in the midrange and high frequencies then in the bass. This is unique to 'drywall' rooms. In the midrange you lose a lot of information, precision and detail through the long RT60. Before going into EQ, I would fix that.


GRH

Registered
Joined
Oct 12, 2018
Messages
1
Can you post a diagram and details of your speaker type, setup and position? Do you have subwoofers? Where are the low pass filters set?
You could try entering the details in the REW Room Sim to see if the results match those which you have measured at the primary listening position, then post a screen shot. Remember to measure to the centre of the driver rather than the centre of the speaker cabinet.

Looks like you're missing the best of the bass region due to destructive boundary interference. Also, an average of all possible speaker/mic positions will not give you a realistic result. It's better to only measure within the areas where you are actually going to sit, such as the front row of seats facing the speakers (and obviously keeping the best seat for yourself). The problem with trying to average too many locations that are far apart is that the result is a combined result of positions that won't be used. Half a foot forward or backward is going to make a huge difference at those frequencies so you might be better off finding the best mic position and then moving your seat (thus, your ears) to meet it.
