    Is it possible to store the measurement in RTA mode in an overlay?
    Thank you in advance)

  2. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    731
    Likes Received:
    118
    Just click the Save button to make it available as a measurement.

  3. nbn44

    nbn44 Member
    Thread Starter

    Joined:
    Jun 5, 2017
    Messages:
    11
    Likes Received:
    0
    Why is it saved only current values?

  4. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    731
    Likes Received:
    118
    Look at the main REW window. Every time you press save, a new measurement is created there and it becomes the currently selected measurement. The currently selected measurement is shown in the RTA window, you can select any of the other measurements and then whichever one you select will be shown in the RTA window. Besides clicking on a measurement in the main REW window you can also select one of the first 9 measurements by pressing Alt+1..9, or select the previous measurement by pressing Alt+up arrow or the next measurement by pressing Alt+down arrow. All the shortcuts are listed in the help.

  5. nbn44

    nbn44 Member
    Thread Starter

    Joined:
    Jun 5, 2017
    Messages:
    11
    Likes Received:
    0
    Sorry, the peak is not saved? ...

  6. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    731
    Likes Received:
    118
    Use the 5.19 beta versions from the downloads section, you are offered the choice of saving the current values, peak values or both.

  7. nbn44

    nbn44 Member
    Thread Starter

    Joined:
    Jun 5, 2017
    Messages:
    11
    Likes Received:
    0
    5.19 beta 12

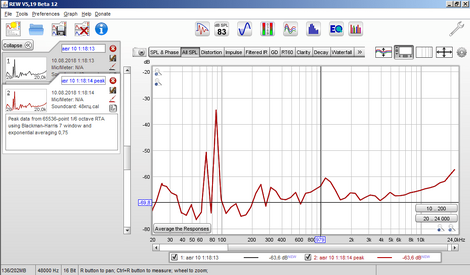

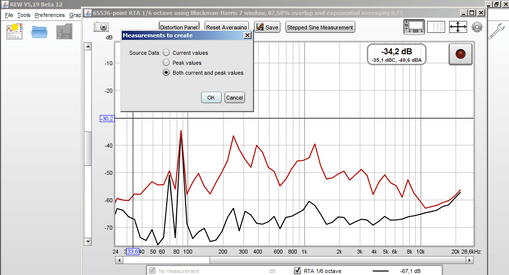

    RTA.png REW.png

  8. John Mulcahy

    John Mulcahy REW Author

    Joined:
    Apr 3, 2017
    Messages:
    731
    Likes Received:
    118
    OK, now I see what you mean :). Peak values were only being properly saved in the spectrum view, I've fixed that for the next release.
