RT60 - "Generate" button

Maria Tsaroucha

Registered
Thread Starter
Joined
Jun 13, 2020
Messages
4
Hello everybody. I am Maria, and I am working on post graduated study on Impulse responses.

I have installed REW V 5.20 for windows yesterday. The program works fine except the RT60 and RTDecay cards. There is NOT a GENERATE button.

Any ideas?

Thank you


mechman

Senior Admin
Staff member
Joined
Apr 4, 2017
Messages
2,047
Location
Empire, MN
More
Preamp, Processor or Receiver
Pioneer VSX-832
Front Speakers
Definitive Technology Studio Monitor 55s
Center Channel Speaker
Definitive Technology CS8040
Surround Back Speakers
Definitive Technology DI6.5R
Other Speakers or Equipment
Apple TV 4K
Video Display Device
LG OLED65C7P
Remote Control
Logitech Harmony 650
Streaming Subscriptions
HBO Max, YouTubeTV, Hulu, Netflix, Disney+
I moved your post to the proper forum. :T

And welcome to AV NIRVANA!


mechman

Senior Admin
Staff member
Joined
Apr 4, 2017
Messages
2,047
Location
Empire, MN
More
Preamp, Processor or Receiver
Pioneer VSX-832
Front Speakers
Definitive Technology Studio Monitor 55s
Center Channel Speaker
Definitive Technology CS8040
Surround Back Speakers
Definitive Technology DI6.5R
Other Speakers or Equipment
Apple TV 4K
Video Display Device
LG OLED65C7P
Remote Control
Logitech Harmony 650
Streaming Subscriptions
HBO Max, YouTubeTV, Hulu, Netflix, Disney+
I'm thinking that since I moved it, the right people should see it.


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212
The plots on the RT60 graph are generated automatically when the graph is selected or when any setting in the graph controls is changed, there isn't a Generate button. On the RT60 Decay graph the Generate button is in the lower waterfall plot window, after using that the "Calculate RT60 model" button in the graph controls is enabled which runs the model fit.


Maria Tsaroucha

Registered
Thread Starter
Joined
Jun 13, 2020
Messages
4
a) What do you mean with "graph controls"?
b)"Claculate RT60 Model" is also disabled

Thank you!


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212

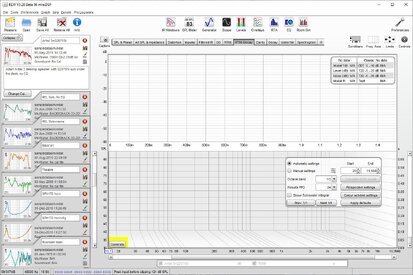

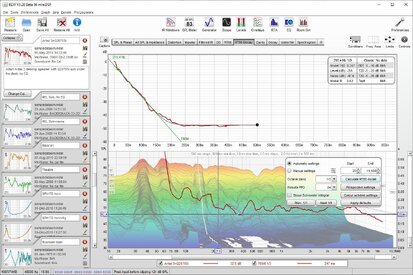

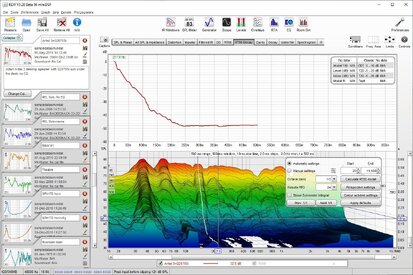

The button to show the graph controls is in the top right corner above the graph. Calculate RT60 model is enabled after the waterfall plot for the chosen octave fraction has been generated using the Generate button.

generate.jpg calculate.jpg calculated.jpg


John Mulcahy

REW Author
Joined
Apr 3, 2017
Messages
7,212
The plots on the RT60 graph are generated automatically when the graph is selected or when any setting in the graph controls is changed, there isn't a Generate button.
If you aren't seeing RT60 plots for a measurement probably easiest to attach the mdat file.
